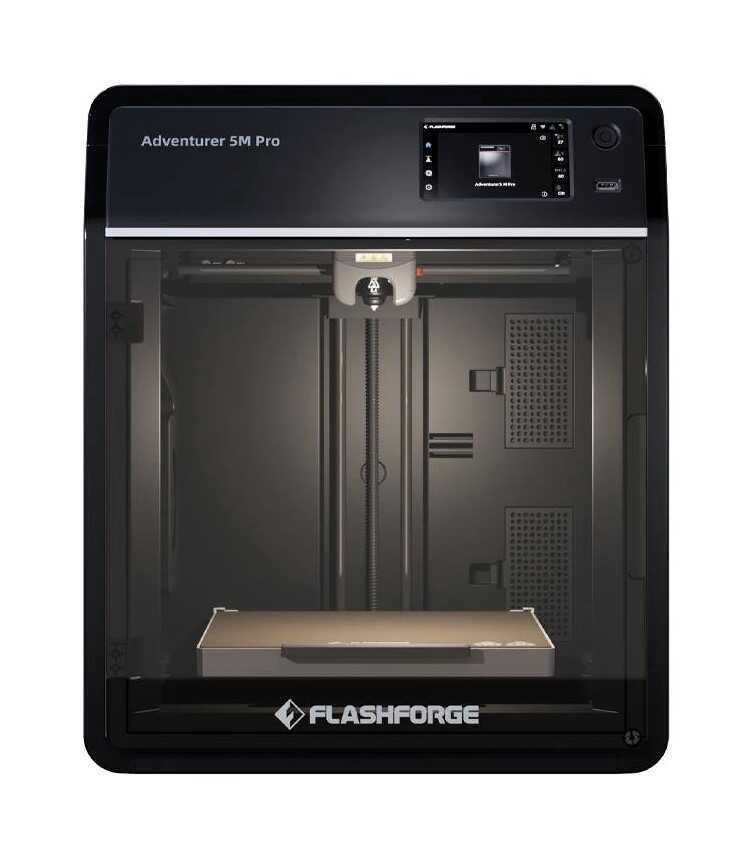

Flashforge Adventurer 5M Pro 3D Printer

FlashForge 5M Pro

Technical specifications

Printing Accuracy / ±0.2 mm(100 mm cube test)

Position Accuracy / X/Y axis 0.0125 mm; Z axis 0.0025 mm

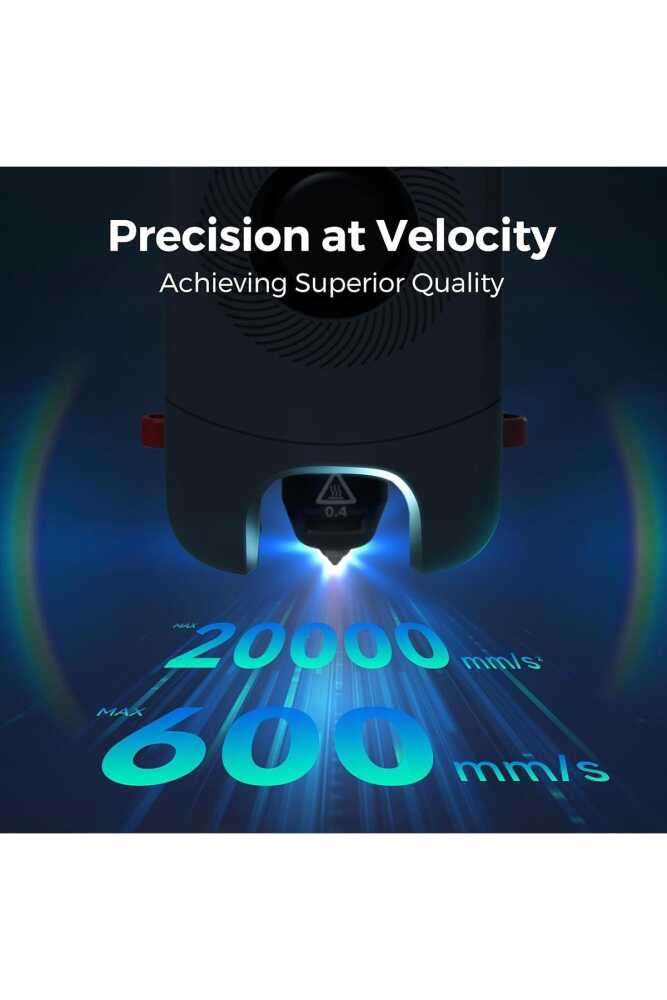

Maximum Extruder Speed / 600 mm/sec

Maximum Acceleration / 20000 mm/sec²

Layer thickness / 0.1-0.4 mm

Structure Size / 220*220*220mm

Nozzle Diameter / 0.4 mm (default); 0.6mm/0.8mm/0.25mm (optional)

Maximum Extruder Temperature / 280°C

Maximum Platform Temperature / 110°C

Print Bed / PEI Sheet

Filament Type / *PLA/*PETG/*TPU(0.4mm nozzle)

ABS/ASA/PLA-CF/PETG-CF(0.6/0.8mm nozzle)

Note: It is recommended to use materials marked * for printing.

Dimensions

Device Size / 380×400×453mm (excluding spool holder)

Packaging Size /460×480×530mm

Software

Slicing Software / FlashPrint 5

Compatible OS / Supports Win7/8/10/11;Linux, Ubuntu 20.04 and later

Supports Mac OS, 10.9 and later

Input File Type / 3MF/STL/OBJ/FPP/BMP/PNG/JPG/JPEG file

Output File Type / GX/G File

Compatible Slicing Software / Prusa Slicer / Cura / Orca Slicer

Power supply / AC 100~240V,50/60Hz,350W

Other functions

Print connection / Wifi; ethernet; USB

Touch LCD Screen / 4.3 inch

Leveling Method

Fully automatic one-click leveling

Filament End Reminder

Power Loss Recovery

Cloudy

Automatic Shutdown

Camera Monitoring

time-lapse video

Air Filtration

Internal circulation + external circulation (HEPA + activated carbon)

Sound

Low noise mode: 50dB;Standard mode: 55dB
