FTDI Programlming Board (3.3V - 5V Option

FTDI Programming Board (3.3V - 5V Option)

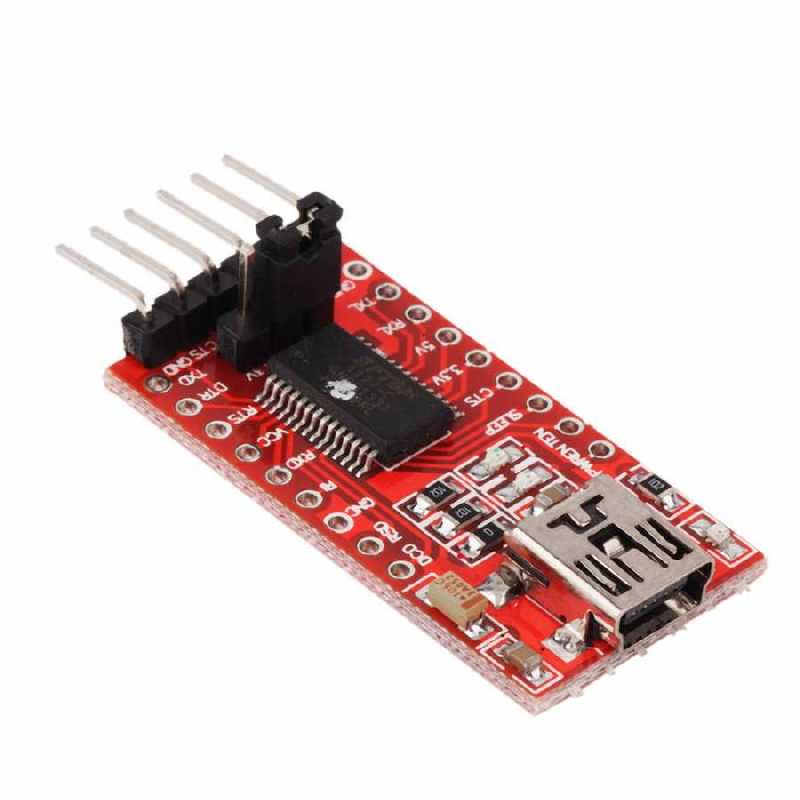

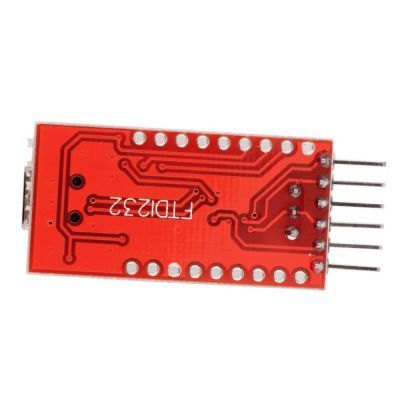

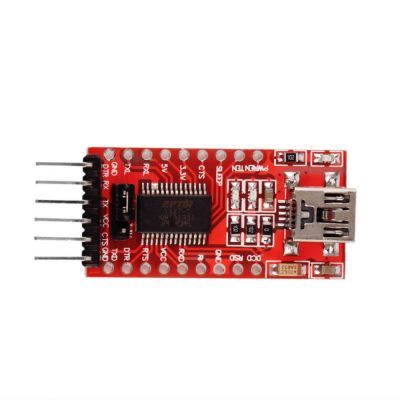

This board is a converter and programmer board. Can be used at Aduino boards which has not got an USB connection and USB-TTL UART converter projects. Through internal jumper, board can be used with 3V and 5V boards. A Mini USB B type connector is available on board.

Key Features:

USB to Serial Communication: Supports USB 2.0 standard for easy connections and fast data transfer.
Wide Operating Voltage: Compatible with a broad range of applications with an operating voltage of 3.3V to 5V.
Fast Data Transmission: Baud rates ranging from 300 bps to 3 Mbps cater to various communication needs.
Programmable GPIO: Provides multiple general-purpose input/output pins to interact with sensors, motors, and other components.
Compact and User-Friendly Design: Compact size allows for integration into various projects, and its "plug and play" feature enhances user-friendliness.
Support for Various Protocols: Supports popular communication protocols such as UART, I2C, and SPI, facilitating flexible usage.

Why Choose FTDI FT232?

Reliable Performance: FTDI is known for delivering high-quality and reliable communication solutions for years.
Extensive Support: Easily compatible with various operating systems and platforms thanks to the available drivers and resources for the FT232R.

Specifications:

Chip Type: FT232RL
Operating Voltage: 3.3V - 5V DC
Data Transfer Rate: 300 bps - 3 Mbps
DTR Pin Support: Yes
Connection Type: Mini-B USB
Operating Temperature Range: -40°C to +85°C
