Grove - Magnetic Switch

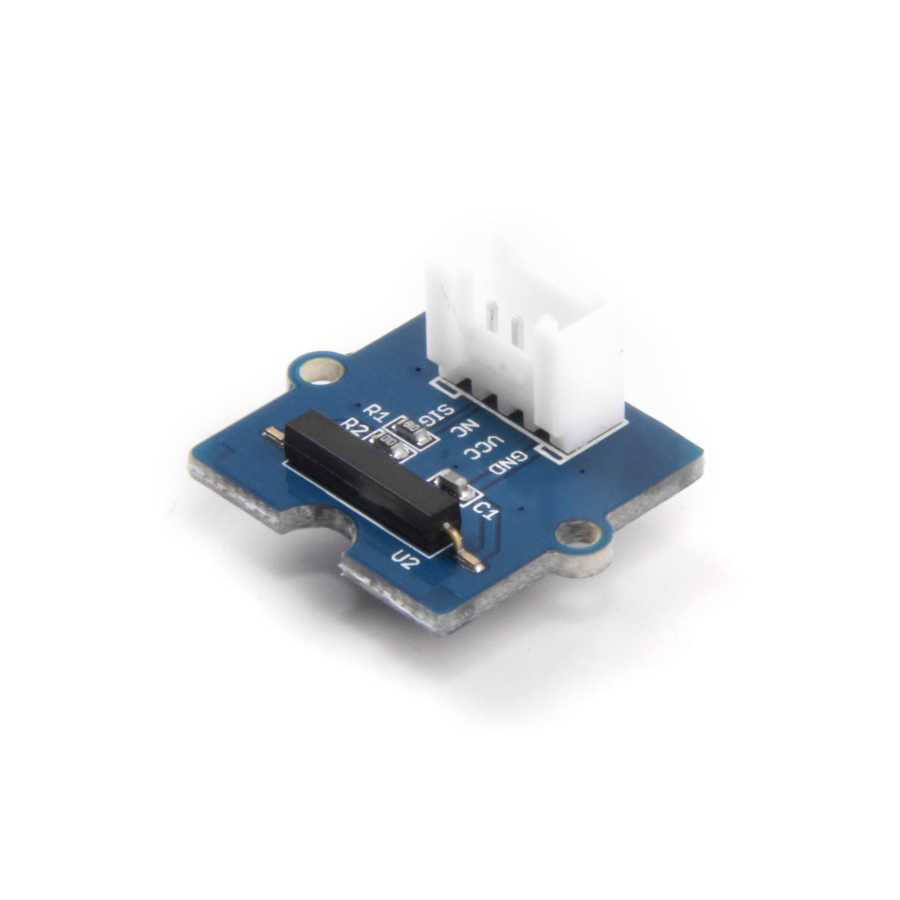

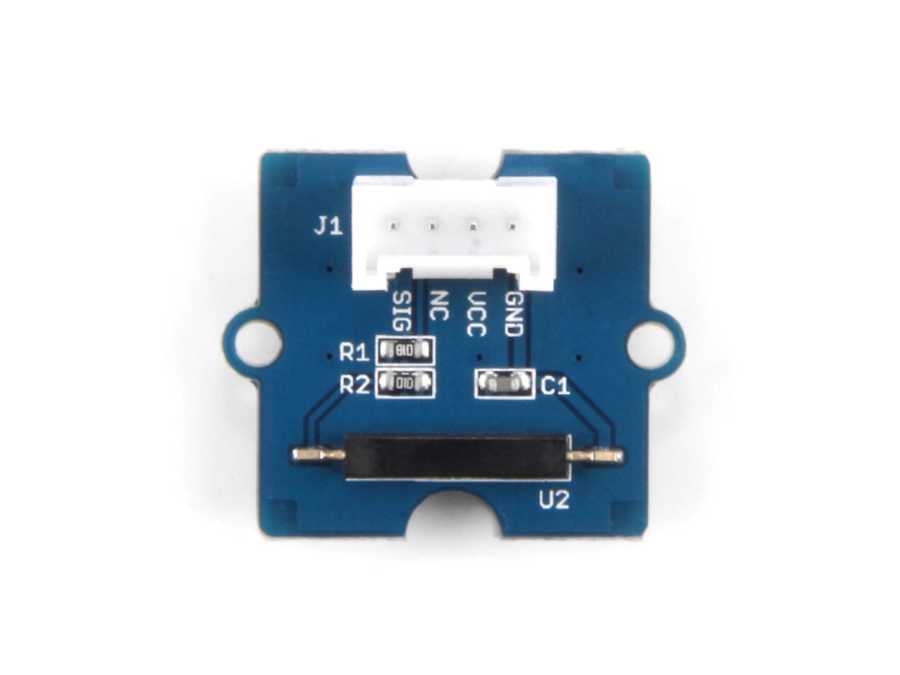

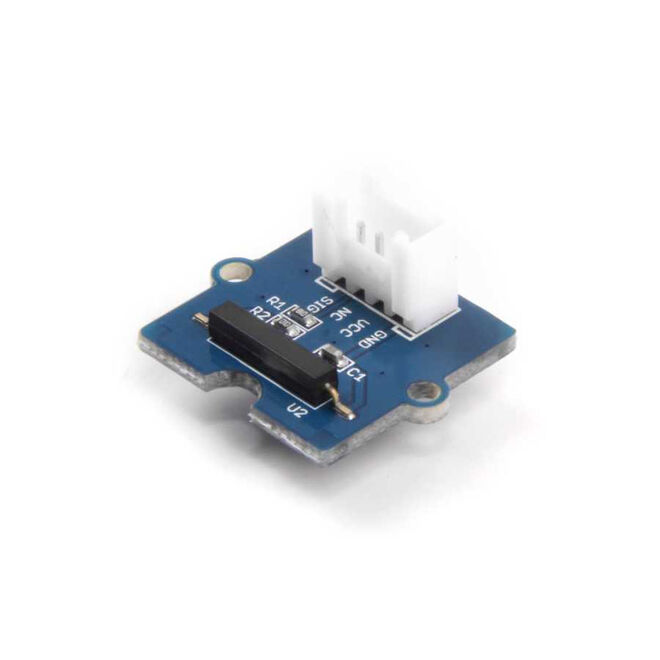

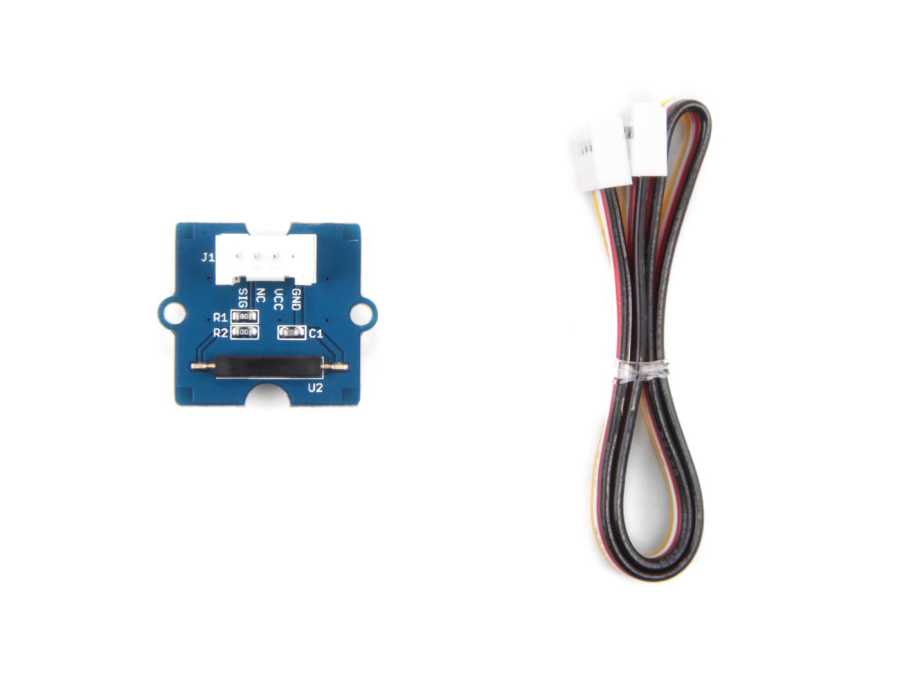

This is a Grove interface compatible Magnetic switch module. It is based on encapsulated dry reed switch CT10. CT10 is single-pole, single throw (SPST) type, having normally open ruthenium contacts. The sensor is a double-ended type and may be actuated with an electromagnet, a permanent magnet or a combination of both. The magnetic switch is a wonder tool for designers who would like to turn a circuit on and off based on proximity.

Technicial Specifications:

• Operating Voltage: 4.75V - 5.25V

• Switching Power: 10W

• Switching Voltage AC, RMS value (max): 140V

• Switching Current: 0,5A

• Contact resistance: 200 m diren

• Operating Temperature: -40 - 125 Çalışma

• Compatible with Grove

• Robust encapsulation

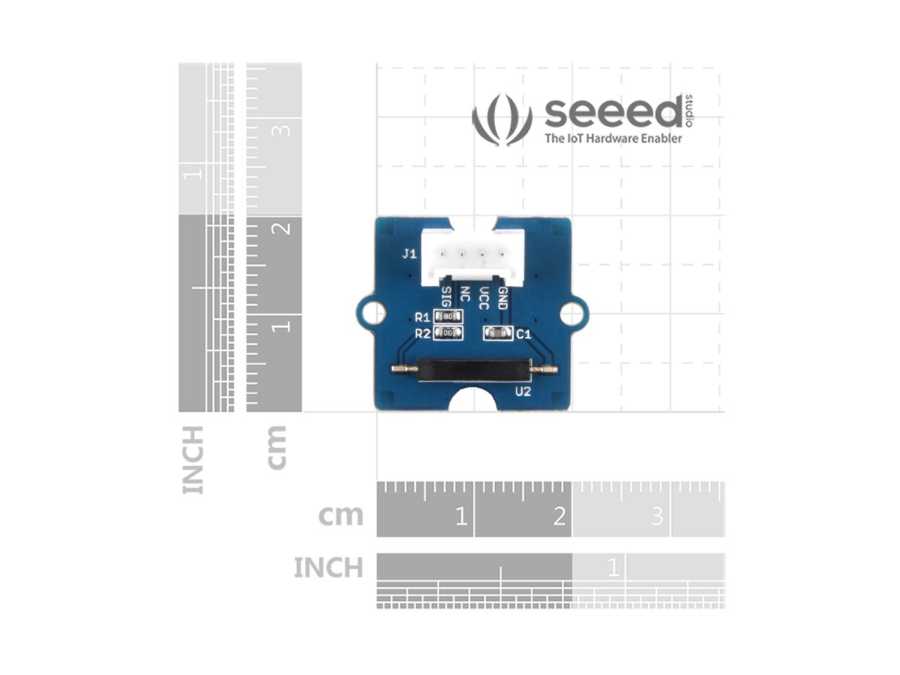

• Dimensions: 90mm x50mm x12mm

• Weight: 8 gr

Technical Documents:

• Grove - Magnetic Switch wiki
• Introduction to Grove
