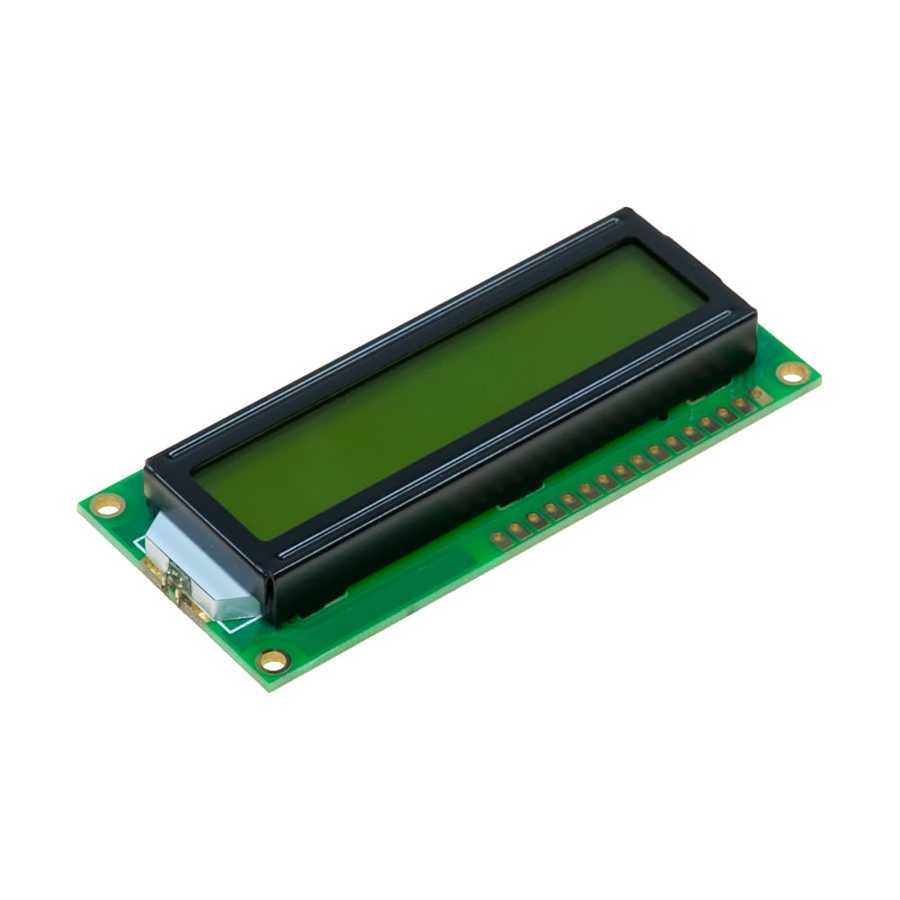

HY-1602F-001 Non-Backlit 2x16 LCD Display

LCD Pin

Sembol

Bağlantı

1

Vss

GND

2

Vdd

+5V

3

Vo

Kontrast ayarı

4

RS

Register seçme pini

5

R/W

Data read/write pini.

6

E

Enable pini

7

DB0

Data Bus 0

8

DB1

Data Bus 1

9

DB2

Data Bus 2

10

DB3

Data Bus 3

11

DB4

Data Bus 4

12

DB5

Data Bus 5

13

DB6

Data Bus 6

14

DB7

Data Bus 7

15

A

LED arka ışık +5V

16

K

LED arka ışık gnd
