IMX179 HD USB Camera (A) - 8MP Internal Microphone

IMX179 8MP USB Camera (A), HD, Embedded Mic

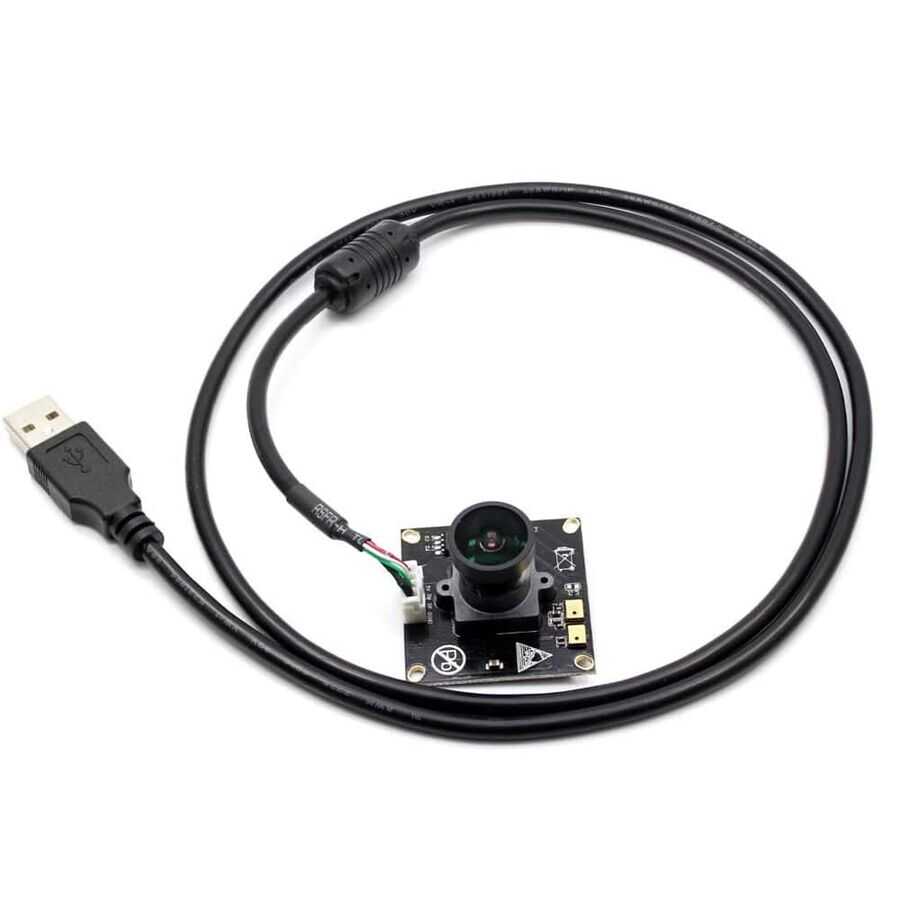

IMX179 8MP USB Camera (A) is a USB camera board module used for boards with USB input on development boards. In addition, the capabilities of your microcontroller are expanded thanks to the ability to take pictures, record audio and video.

IMX179 8MP USB Camera (A) Technical Specifications:

• Megapixels: 8
• Resolution: 3288 x 2512
• USB interface, UVC protocol, driverless, plug and play
• It surpassed the Raspberry Pi and Jetson Nano.
• DSP:
• Automatic white system (AWB)
• Automatic exposure (AEC)
• Automatic gain control (AGC)
• Camera features:
• CCD size: 1/3.2 inch
• Aperture (K): 1.8
• Focal Length: 2.8mm
• Field of View (Cross): 145°
• Microphone features:
• Sensitivity: -26dB (1kHz 1Pa)
• Interface: USB2.0
• Image formats: MJPEG, YUY2
• Operating temperature: 0°C ~ 50°C
• Size: 38 x 38mm
• Supported Operating System: Windows, Linux
