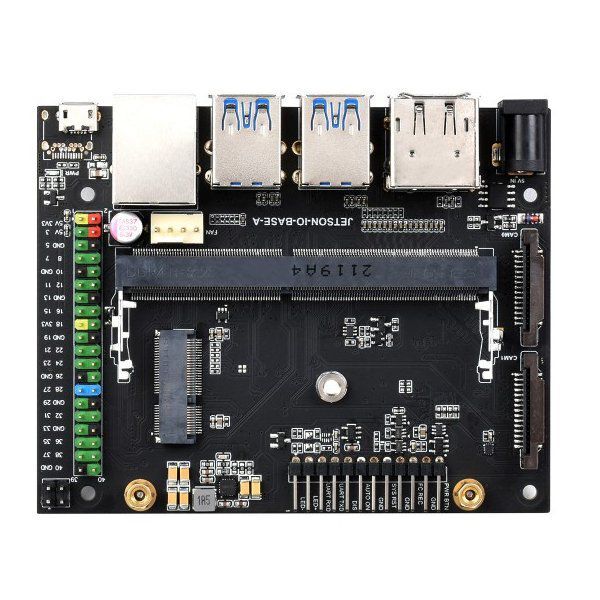

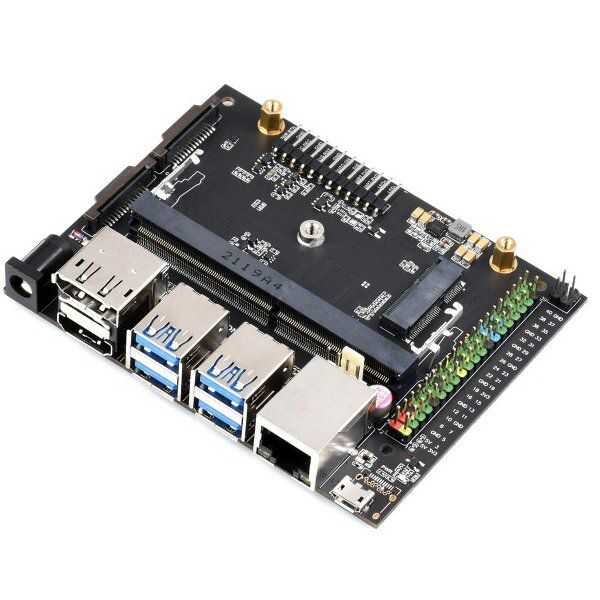

JETSON-IO-BASE-A IC Test Board

JETSON-IO-BASE-A IC Test Board

The ETSON-IO-BASE-A IC Test Board has the same design and function as the carrier board of NVIDIA Jetson Nano Developer Kit B01. The M.2 Key E offers a multitude of connectors, including 40-pin GPIO with I2C, SPI, UART and I2S interfaces, Gigabit Ethernet ports, four USB 3.0 connectors, two MIPI CSI-2 camera inputs, and HDMI and DisplayPort video outputs. Leveraging the power of the core module, it can perform image classification, object detection, segmentation, speech processing, etc. You can easily use it for fields and various AI projects.

JETSON-IO-BASE-A IC Test Card Technical Specifications:

• Size: 100mm x 80mm
• 4 x USB 3.0 Type A
• Power: 5V
• Data Transmission: USB 2.0 Micro-B
• HDMI and DisplayPort
• M.2 Switch E connector
• Gigabit Ethernet
• Camera Connector: 2 x MIPI CSI-2 DPHY
• fan connector
• PoE connector
