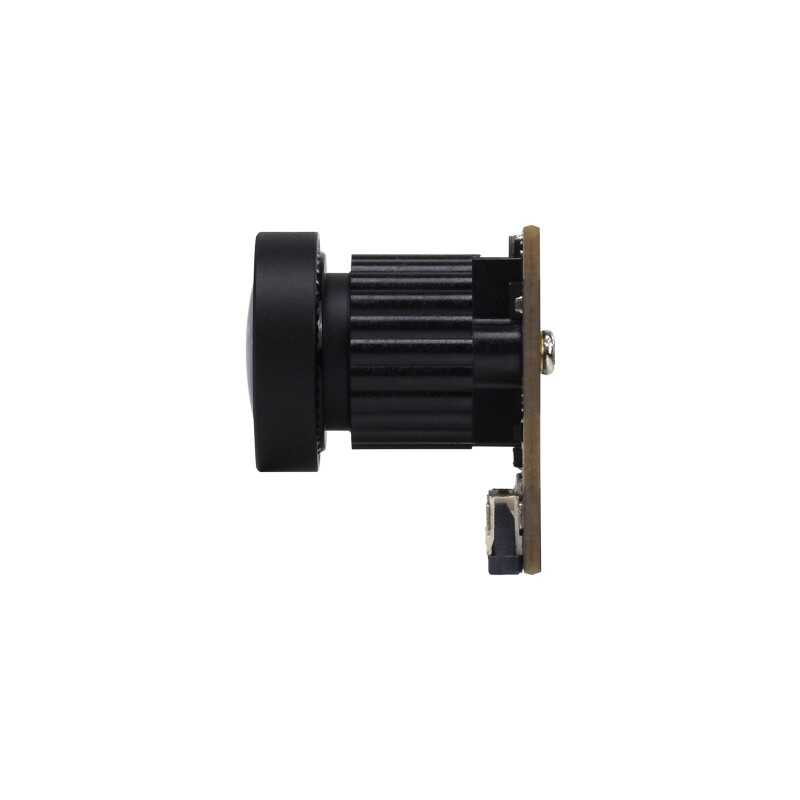

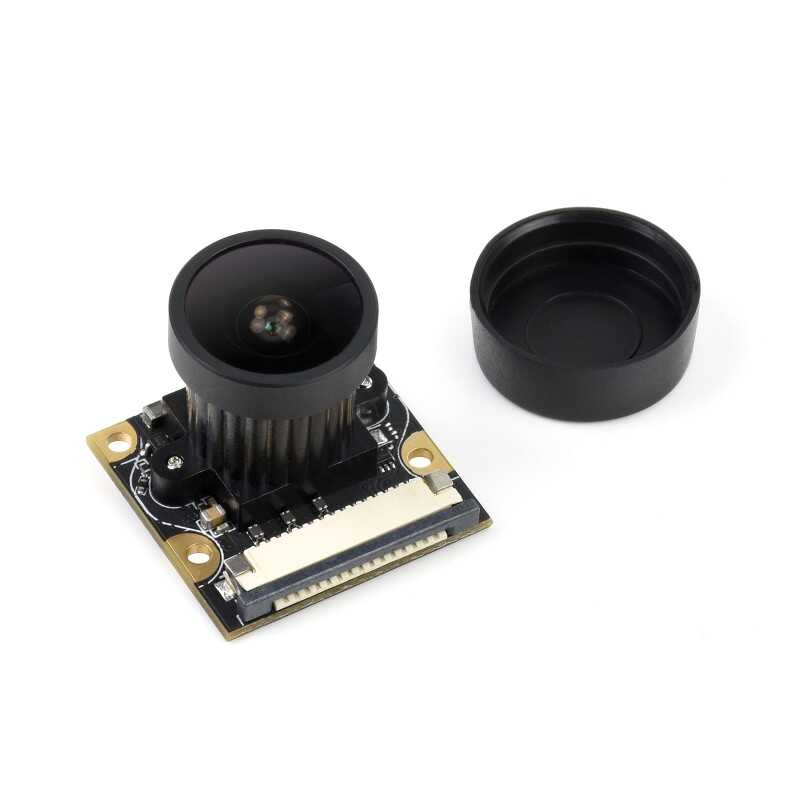

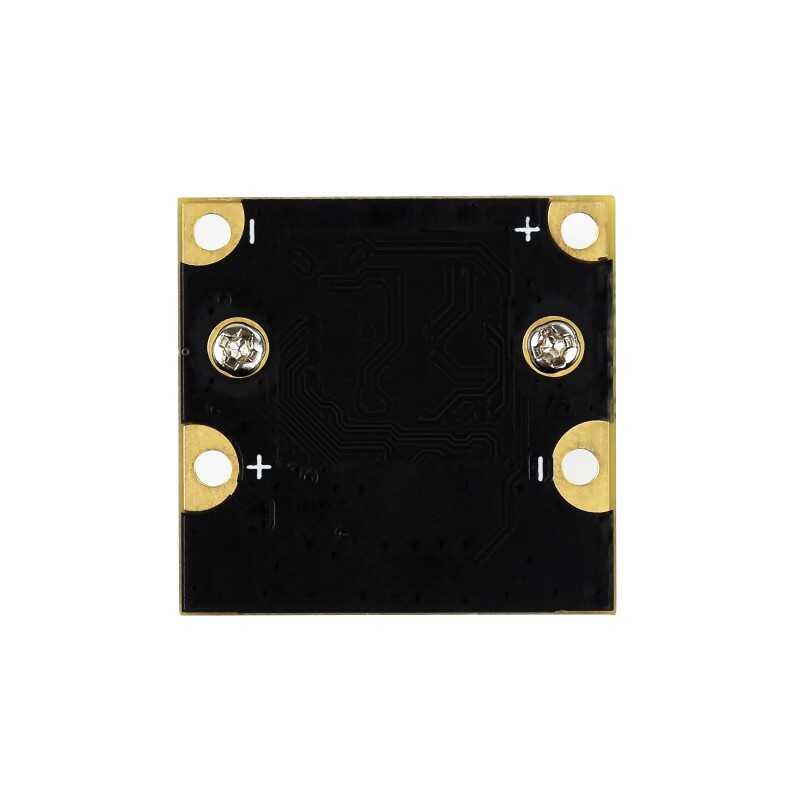

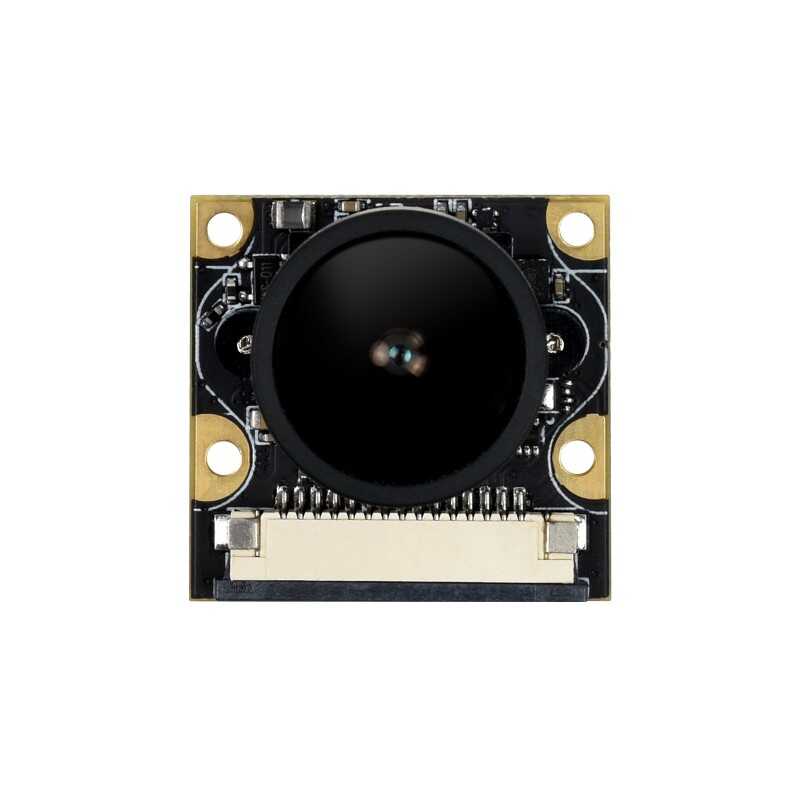

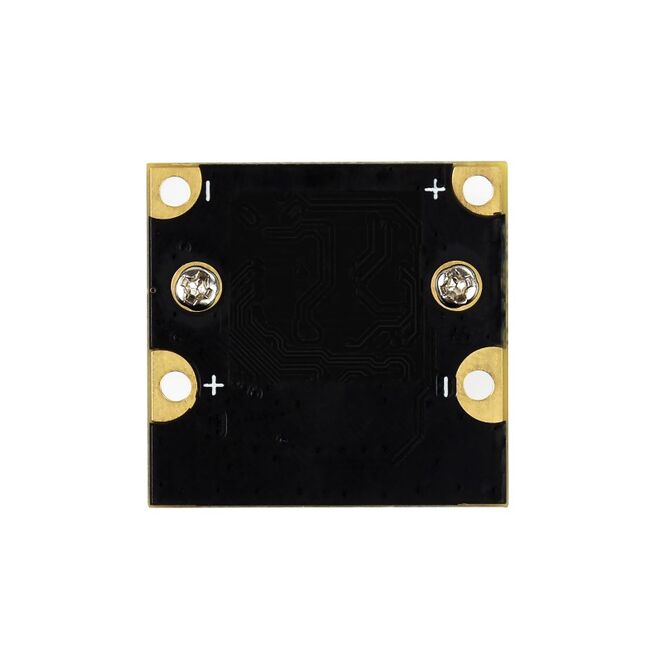

IMX477-160 12.3MP Camera for Jetson Nano - 160° FOV

IMX477-160 12.3MP Camera for Jetson Nano - 160° FOV

IMX477-160 12.3 MP Camera is USB camera card module used for USB input cards in development boards. It also expands the capabilities of your microcontroller with the ability to take pictures, measure temperatures or record videos. Applies to Jetson Nano computing module only.

If you want to use it with Raspberry Pi 5, you can choose the Raspberry Pi Camera Cable Standard - Mini - 200mm product.

IMX477-160 12.3MP Camera for Jetson Nano - 160° FOV Application Areas:

With Jetson Nano AI computer;

• Face Recognition
• Waypoint Detection
• License plate recognition

Suitable for AI Projects such as.

IMX477-160 12.3MP Camera for Jetson Nano - 160° FOV Technical Specifications:

• Megapixels: 12.3
• Resolution: 4056 x 3040
• Sensor:
• Model: IMX477
• CMOS Diagonal Length: 7.9 mm
• Pixel Length: 1.55 um (H) x 1.55 um (D)
• Camera:
• Aperture (K): 2.2
• Focal Length (BFL): 160°(V) 118°(H) 87°(V)
• Collision: <16%
• Operating Voltage: 3.3V

Similar products:

• Raspberry Pi - Jetson Nano - 10.1inch Capacitive Touch LCD (E) Display for PC
• Module - 1024×600 Pixel HDMI - IPS Fully Laminated Screen
• IMX219-77 Camera for Jetson Nano - 77 Degree Viewing AngleJetson Nano için
• IMX219-77 Kamera - 77 Derece Görüş Açısı

Products that can be used together:

• NVIDIA Jetson Nano Developer Kit (Geliştirme Kiti) - B01
• Raspberry Pi Camera Cable Standard - Mini - 200mm

Useful Links / Documents:

• Jetson Nano Wiki
• Kullanım Kılavuzu
