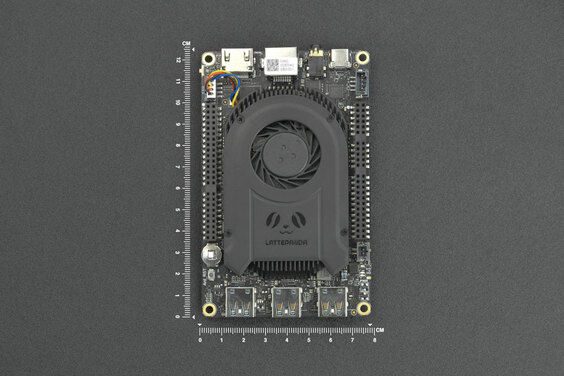

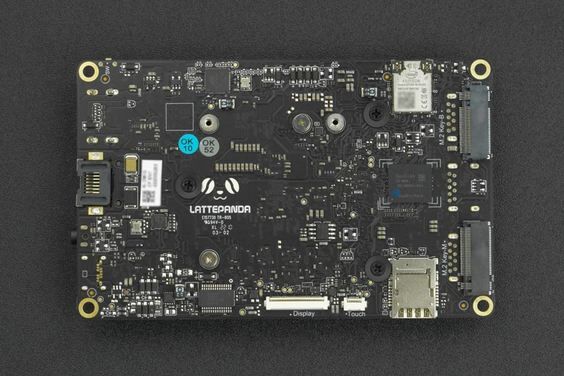

LattePanda 3 Delta 864 - Fastest Pocket Windows/Linux Single Board Computer (8GB RAM/64GB eMMC)

LattePanda 3 Delta 864 - Fastest Pocket Windows/Linux Single Board Computer (8GB RAM/64GB eMMC)

LattePanda 3 Delta 864, It features enhanced CPU performance and the N5105, an Intel 11th generation mobile quad-core processor. It offers significantly improved performance and seamlessly runs many applications at the same time, ensuring smooth performance and reliable multitasking. Thanks to its ultra-fast connection, you can quickly download the files you want. It is also compatible with over 200 sensors and actuators.

LattePanda 3 Delta 864 - Fastest Pocket Windows/Linux Single Board Computer (8GB RAM/64GB eMMC) Features;

• Processor: Intel® Celeron® N5105
• Coprocessor: Arduino Leonardo ATMEGA32U4
• Core: 2.0~2.9GHz Quad Core, Quad Thread
• Memory: Intel® UHD Graphics (Frequency: 450 – 800 MHz)
• Storage: 64GB eMMC V5.1
• Connectivity: 1x Wi-Fi 6 @ 2.4GHz & 5GHz(160MHz) / Bluetooth 5.2 / Intel Gigabit Ethernet
• Display Features: HDMI 2.0b: 4096 x 2160 at 60Hz HDR / DP 1.4: 4096x2160 at 60Hz HDR / EDP: Extendable Touchscreen up to 1920*1080
• GPIO and Other Features: 12x Analog Inputs, up to 23x Digital Input/Output (7 PWM), 1x UART, 1x I2C, 1x SPI, 1x Audio Connector, 1x 4-Pin RS232 Header, 1x Fan Port (4-Pin 1.25mm) PWM 5V), 1x 4-Pin Header (Power and Switch)
• Graphics: Memory: LPDDR4 8GB 2933MHz
• Audio: Microphone + Headphone Combo Connector
• Supports 5G Module
• USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type A, 1x USB Type C, PD, DP, USB 2.0, 1x USB 2.0 Pin Header
• TPM: onboard TPM(2.0)
• Expansion Slots: 1x M.2 M Key, PCIe 3.0 2x, NVMe SSD, 1x M.2 B Key, USB 2.0, USB 3.0, SIM, SATA(Option support PCIe 3.0 1x), 4G
• Dimension: 125 x 78 x 16mm
• Operating Temperature: 0°C~75°C
