LattePanda single board comptuer can run full desktop version of Windows 10!
LattePanda is the first development board that can run a full version of Windows 10! It is turbocharged with an Intel Quad Core processor and has excellent connectivity, with three USB ports and integrated WiFi and Bluetooth 4.0. It also includes an Arduino co-processor that enables you to master the physical world by controlling interactive devices using thousands of plug and play peripherals.
Harness the power of LattePanda to create and innovate!

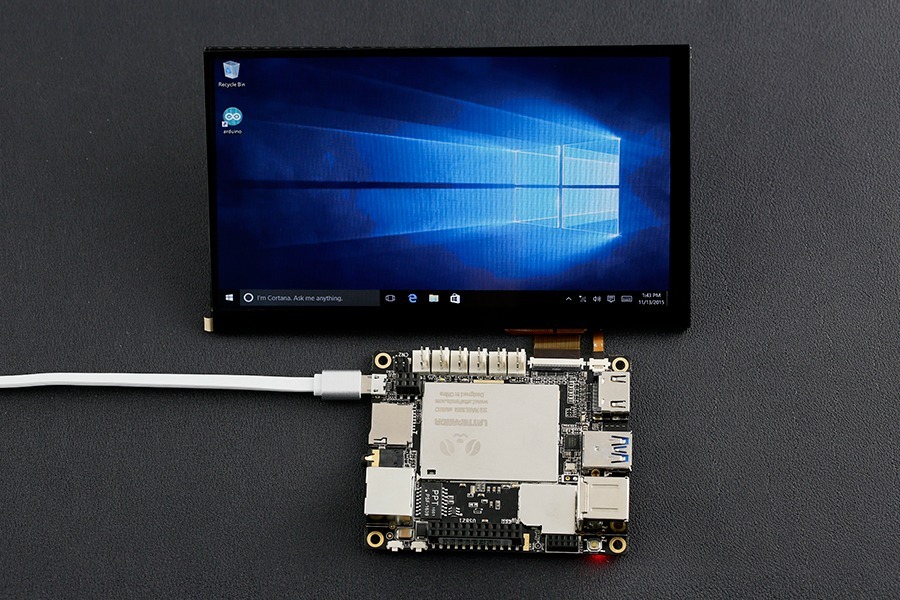

Full Windows 10 OSLattePanda is different from the Raspberry Pi and other development boards as it supports a complete Windows 10 system. With abundant software resources and a mature Windows ecosystem at your disposal, LattePanda gives your ideas more accessibility and power!
Fast And PowerfulLattePanda brings single board computers to a whole new level of power and performance. Turbocharged with an Intel Quad Core 1.8GHz processor, 2-4GB RAM and 32-64GB onboard flash memory, LattePanda can easily carry out image recognition, real-time CNC control and more!
Excellent ExpandabilityLattePanda has excellent connectivity, with 1x USB 3.0, 2x USB 2.0 ports, integrated WiFi and Bluetooth 4.0 and an Arduino coprocessor. This means that LattePanda is compatible with almost every gadget you know: printers, Joysticks, cameras and more. Any peripherals that work on your Windows PC will work on LattePanda!
Ready to Go ArduinoLattePanda is not only a low cost regular Windows computer - it also includes an Arduino co-processor, which means it can be used to control and sense the physical world when you add sensors and actuators. Whether you are a Windows developer, an IoT developer, an interactive designer, robotics whizz, or a maker, LattePanda can aid your creative process with physical computing projects!

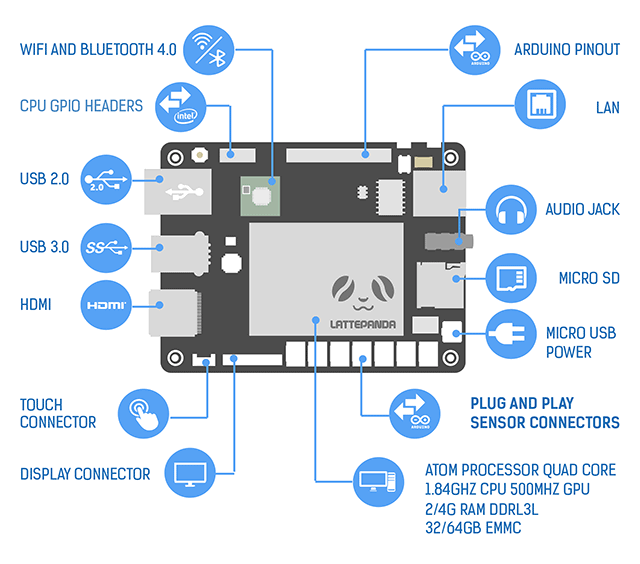

Specifications:
- Processor: Intel Cherry Trail Z8300 Quad Core 1.8GHz
- Operation System: Pre-installed full edition of Windows 10
- Ram: 2GB DDR3L
- Storage Capability: 32GB
- GPU: Intel HD Graphics, 12 EUs @200-500 Mhz, single-channel memory
- One USB3.0 port and two USB 2.0 ports
- WiFi and Bluetooth 4.0
- Built-in Arduino Co-processor: ATmega32u4
- Video output: HDMI and MIPI-DSI
- Onboard touch panel overlay connector
- Supports 100Mbps Ethernet
- GPIO:
- 6 GPIOs from Cherry Trail processor
- 20 GPIOs from Arduino Leonardo
- 6 Plug and play Gravity sensor connectors
- Power: 5v/2A

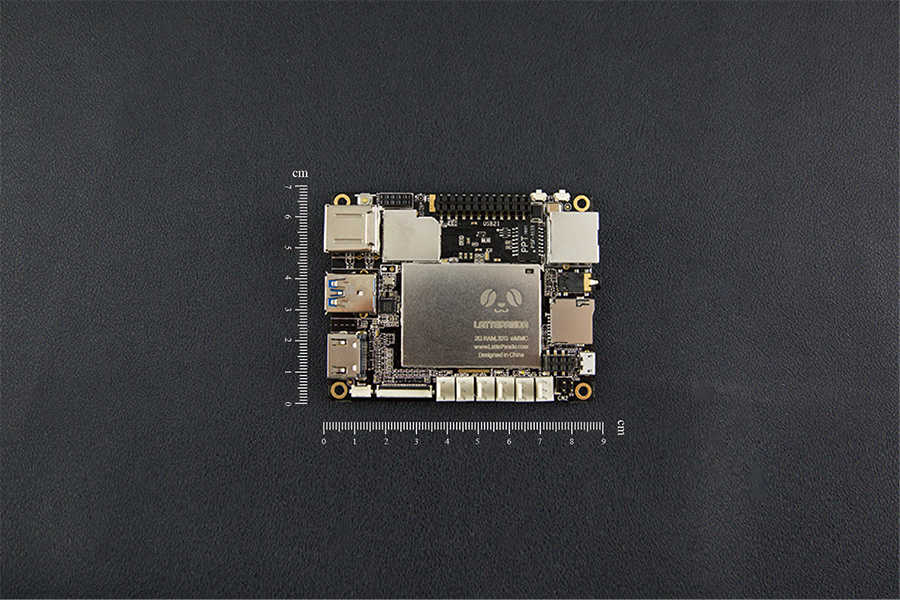

- Dimension of board: 88 * 70 mm/ 3.46 * 2.76 inches

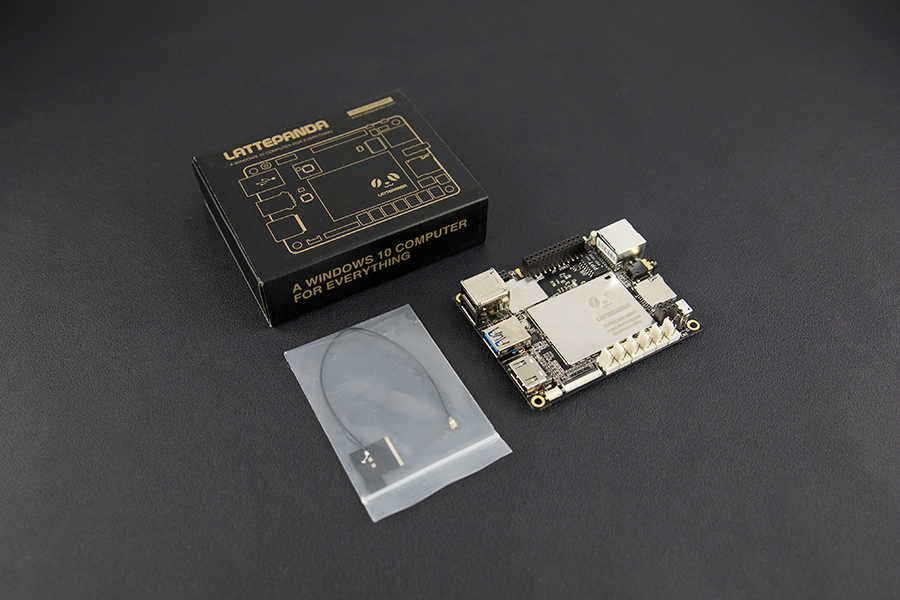

- Packing Size: 110 * 94 * 30 mm/4.33 * 3.70 * 1.18 inches
