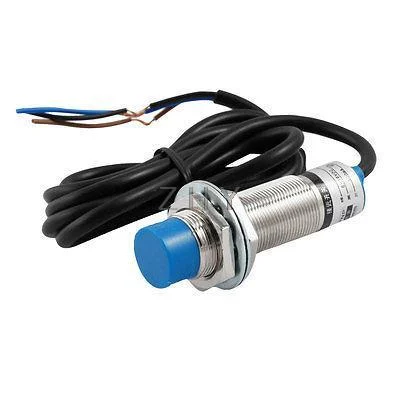

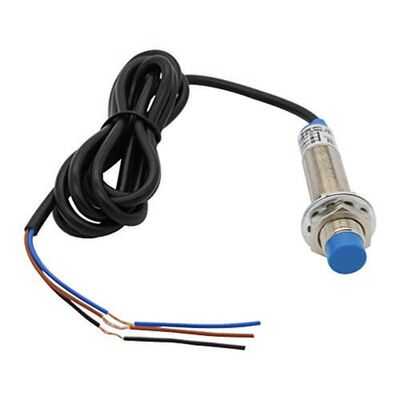

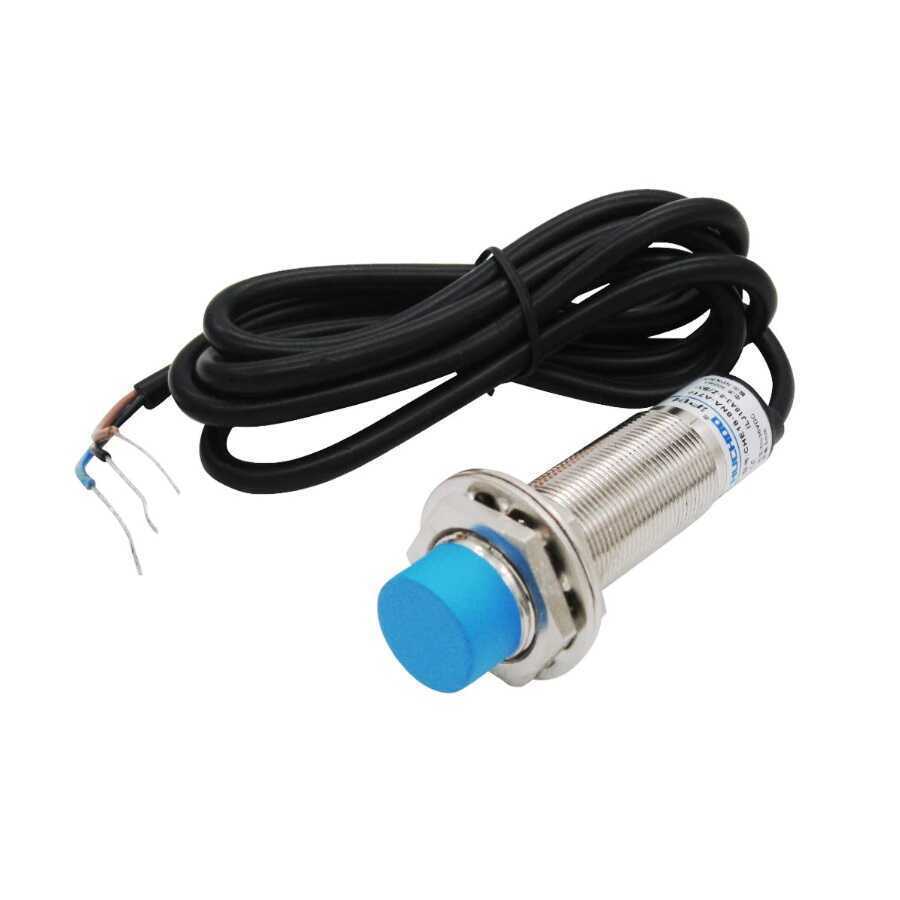

LJ12A3-4-Z-BY Inductive Distance Sensor

LJ12A3-4-Z/BY Inductive Proximity Sensor

LJ12A3-4-Z/BY Inductive Proximity Sensor, It is a product used for automatic control detection and non-contact switching. When the proximity sensor is brought close to an object, it sends a control signal and has features such as power supply, reverse connection and short circuit protection. When a metal object is brought close to the proximity sensor, an eddy current is created in the metal, which disrupts the magnetic field produced by the sensor. This situation is detected by the sensor and the proximity switches can give electrical command in a contactless, pressureless, sparkless way. It is also simple to install and an ideal product for harsh environments.

LJ12A3-4-Z/BY Inductive Proximity Sensor Features;

• The red LED is checking the status of the proximity sensor.
• High Switching
• Wide voltage range
• Reverse power and short circuit protection
• Weight: 8g
• Dimension: 12mm x 64mm
• Detection Weight: 4 mm
• Output Current: 300mA
• Supply Voltage: 6 - 36V
