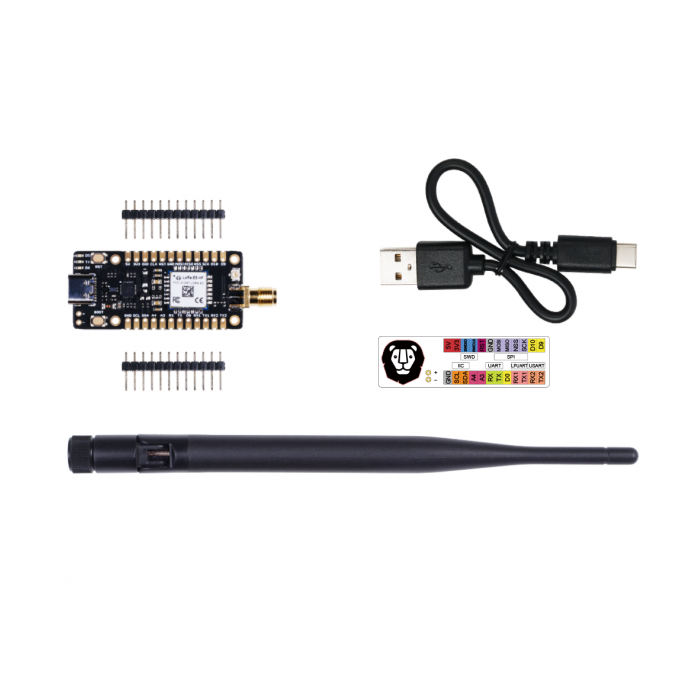

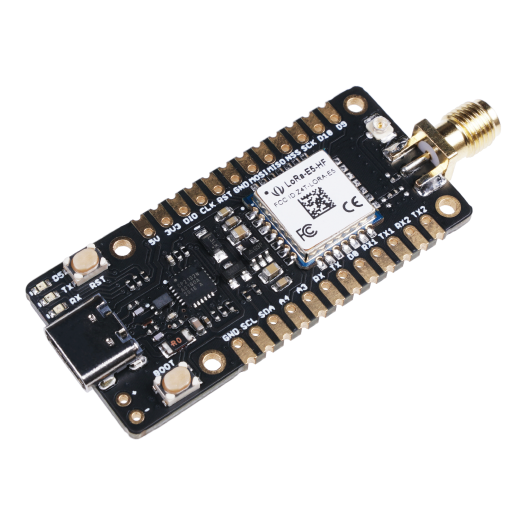

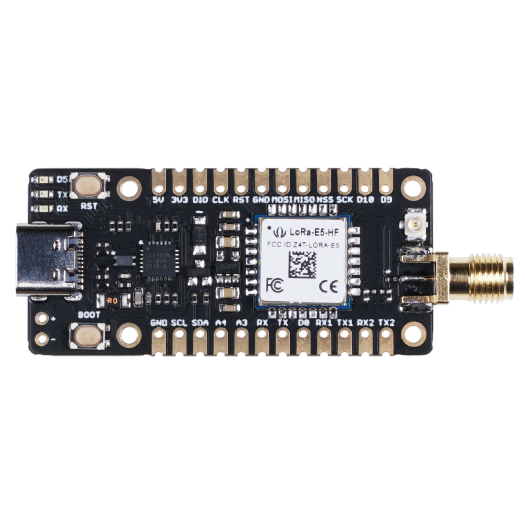

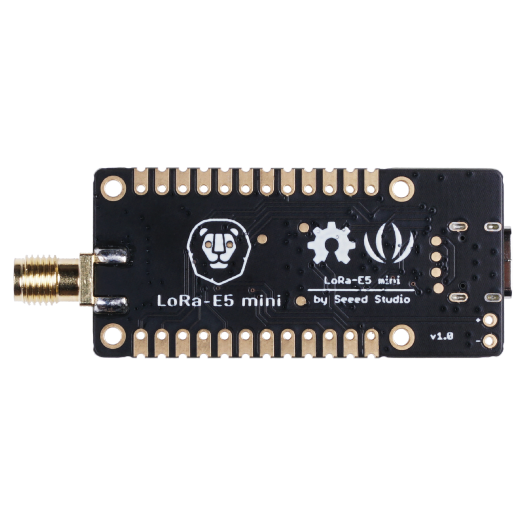

LoRa-E5 Mini (STM32WLE5JC) Development Board - (LoRaWAN Protocol and World Wide Frequency Support)

Brand
SeeedStudio
Product Code
20592
İşlemci
Arm® Cortex®-M4
Bağlantı Noktası
Type C
Kablosuz Bağlantı
Yok
Hafıza
256KB
Fiyat
: 943.74 TL + VAT
KDV Dahil Fiyat
: 1,132.49 TL

LoRa-E5 Mini Development Board (STM32WLE5JC) - (LoRaWAN Protocol and Global Frequency Support)

The LoRa-E5 mini is a compact development board designed for quick testing, building, and prototyping of small-sized LoRa devices and applications. It is equipped with the full GPIOs of the LoRa-E5 STM32WLE5JC and routes them, offering rich interfaces including UART, ADC, SPI, I2C, etc. The LoRa-E5 mini supports the LoRaWAN protocol and global frequencies, providing transmission range of up to 10 km in open areas and ultra-low power consumption. It assists in designing your ideal LoRaWAN wireless IoT device with long-range transmission capabilities. The LoRa-E5 mini is embedded with the LoRa RF and MCU chip, the first combination of its kind in the world, featuring the FCC and CE certified LoRa-E5 STM32WLE5JC Module. It is supported by the ARM Cortex-M4 core and the Semtech SX126X LoRa chip, offering global frequency and support for (G)FSK, BPSK, (G)MSK, and LoRa modulations in the LoRaWAN protocol.






LoRa-E5 Mini Development Board Pin Diagram:






LoRa-E5 Mini Development Board Technical Specifications:

  • Input Voltage: 3.7V - 5V
  • Output Power: Up to +20.8 dBm at 3.3V
  • Operating Frequency: 868/915MHz
  • Protocol: LoRaWAN
  • Sensitivity: -116.5 dBm ~ -136 dBm
  • Interfaces: USB Type-C / 2P-2.54mm Hole / 1*12P-2.54mm Header*2 / SMA-K / IPEX
  • Modulation: LoRa, (G)FSK, (G)MSK, BPSK
  • Operating Temperature: -40℃ ~ 85℃
  • Low Current LoRa-E5 Module Sleep Current Up to 2.1uA (WOR Mode)
  • Dimensions: 50 x 23mm
