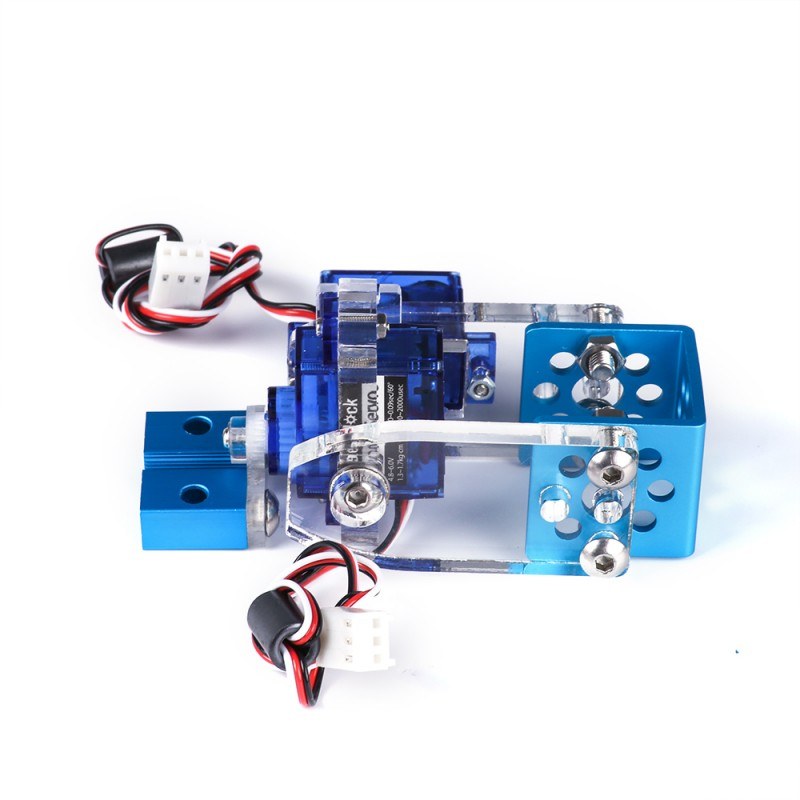

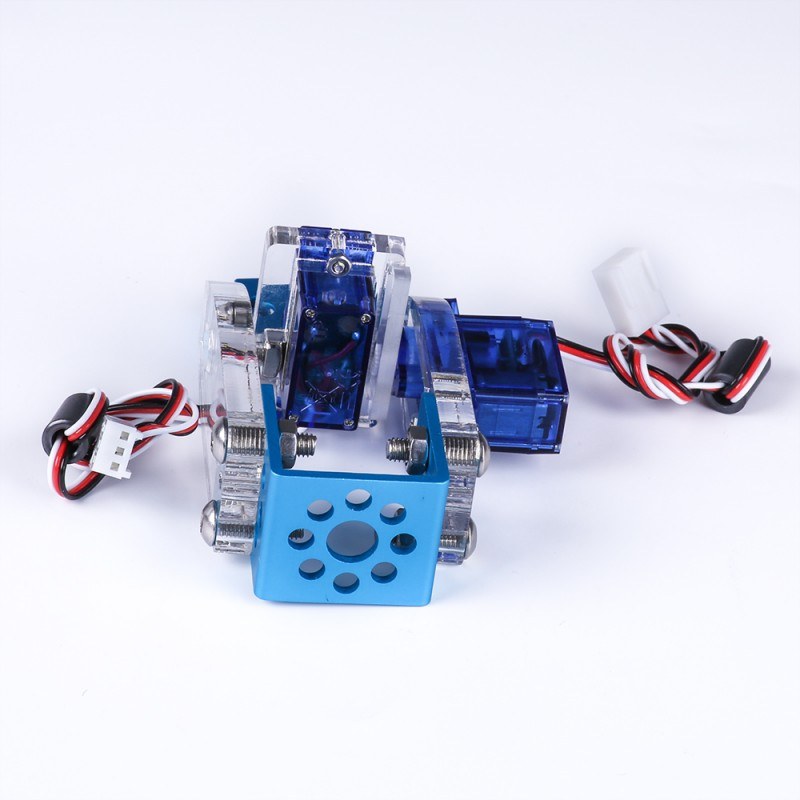

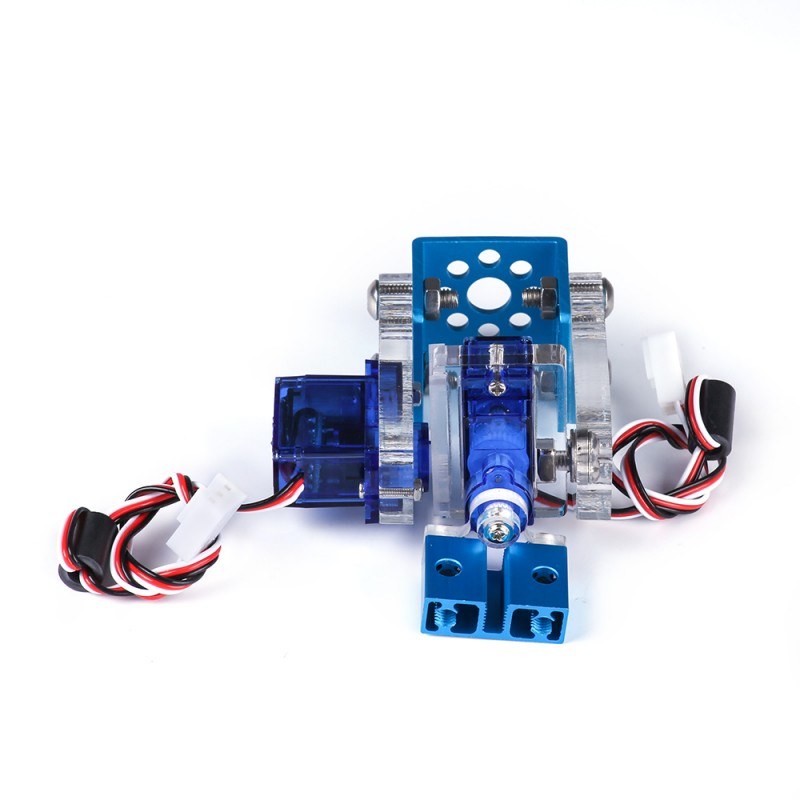

Mini Pan-Tilt Kit is easy-to-use DIY kit which will suit all you need for creating a project. This kit enables your project to rotate 180-degree both in horizontal and vertical direction. With this kit, you are able to explore more in robotic world.

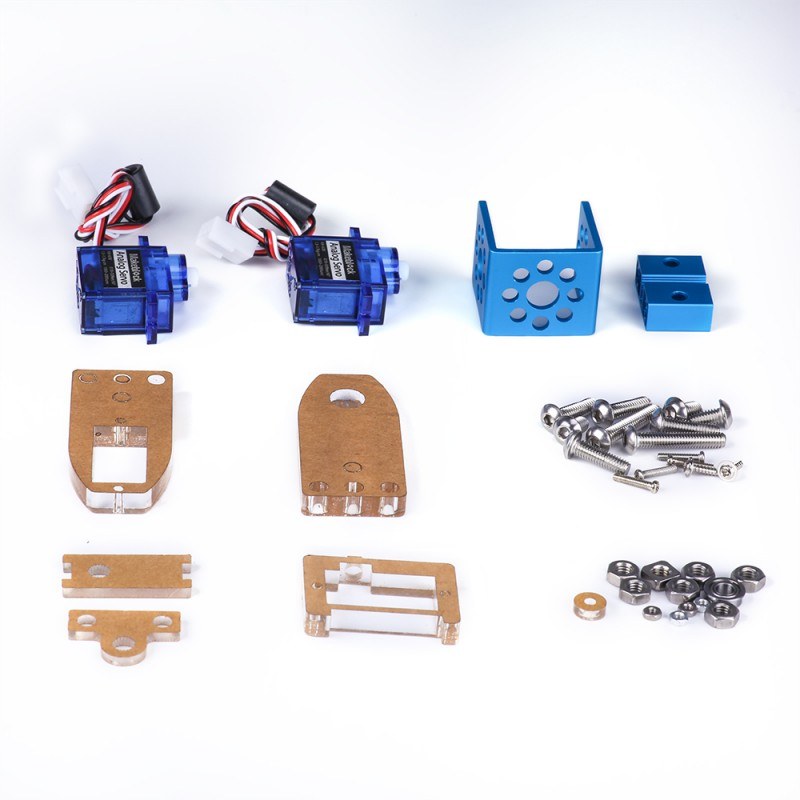

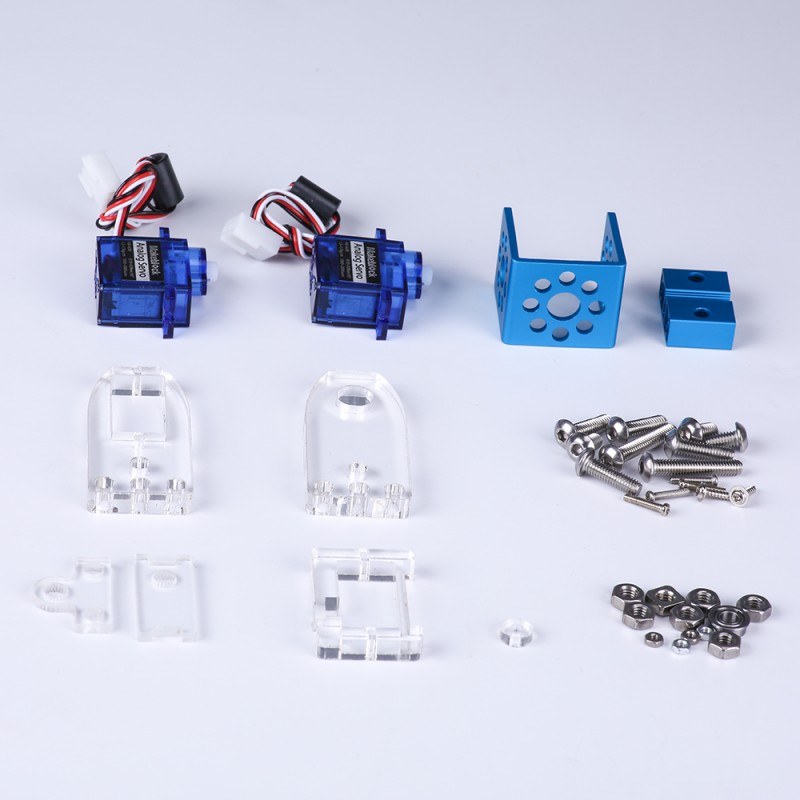

Package Content:
- 1 x Mini Pan-Tilt Kit-A Acrylic Bracket 24 x 50 x 5.5mm
- 1 x Mini Pan-Tilt Kit-B Acrylic Bracket 24 x 50 x 5.5mm
- 1 x Mini Pan-Tilt Kit-C Acrylic Bracket 24 x 34 x 5.5mm
- 1 x Mini Pan-Tilt Kit-D Acrylic Bracket 13 x 28 x 2.3mm
- 1 x Mini Pan-Tilt Kit-E Acrylic Bracket 17 x 24 x 2.3mm
- 1 x Mini Pan-Tilt Kit-F Acrylic Bracket D7.5 x 2.3
- 1 x 9g Servo Screw Pack
- 1 x Magnetic Ring RH7.8 x 12.7 x 4.5mm
- 1 x 9g Plastic Servo FCC
- 3 x Screw M4 x 8mm
- 4 x Screw M4 x 14
- 2 x Screw M4 x 22mm
- 6 x Nut M4
- 1 x Nut M4 6.8 x 6.8 x 3mm
- 1 x Flange Bearing 4 x 8 x 3
- 1 x Beam0824-016-Blue
- 1 x Bracket U1-Blue
Assembly guide
EN
