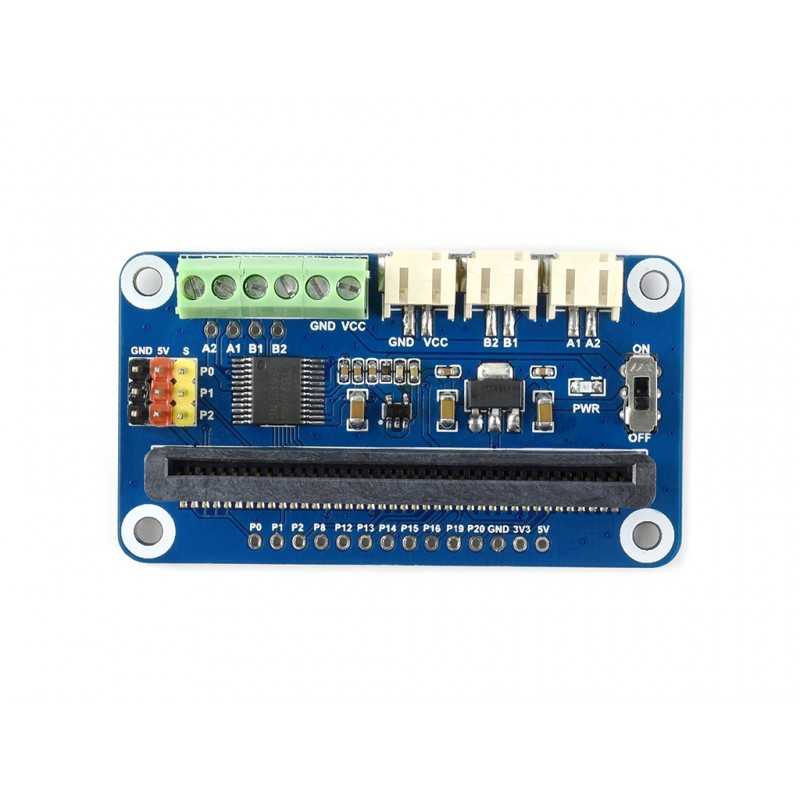

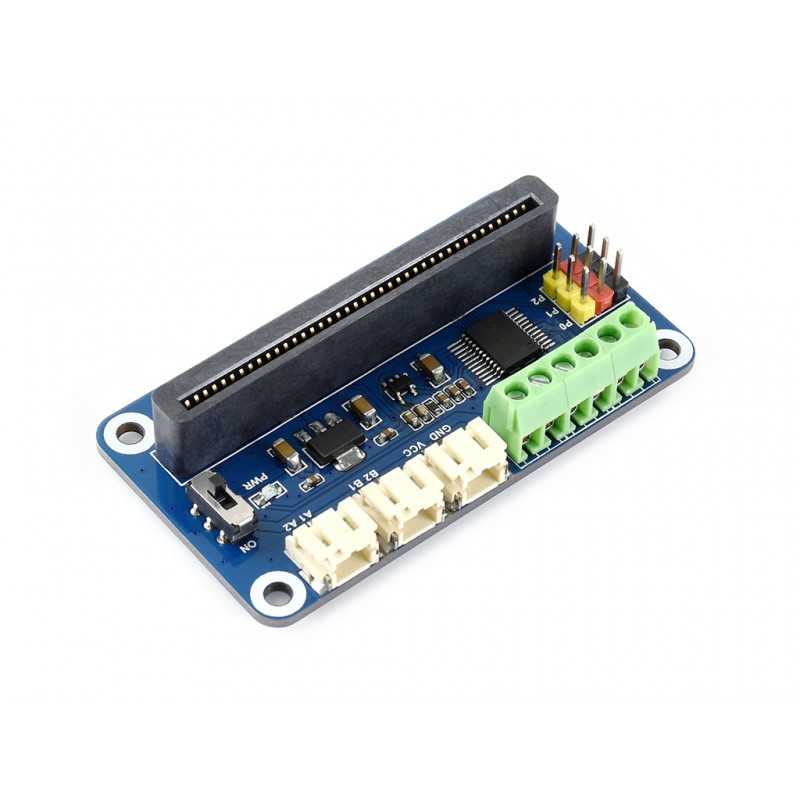

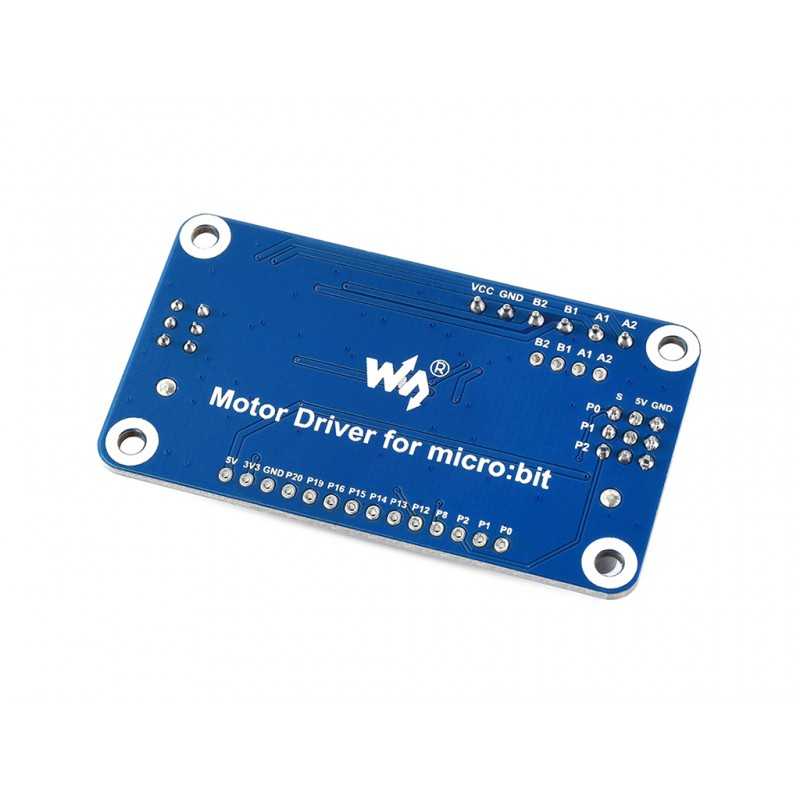

Motor Driver for micro:bit (DC + Servo)

This driver board gives your micro:bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.

Features:

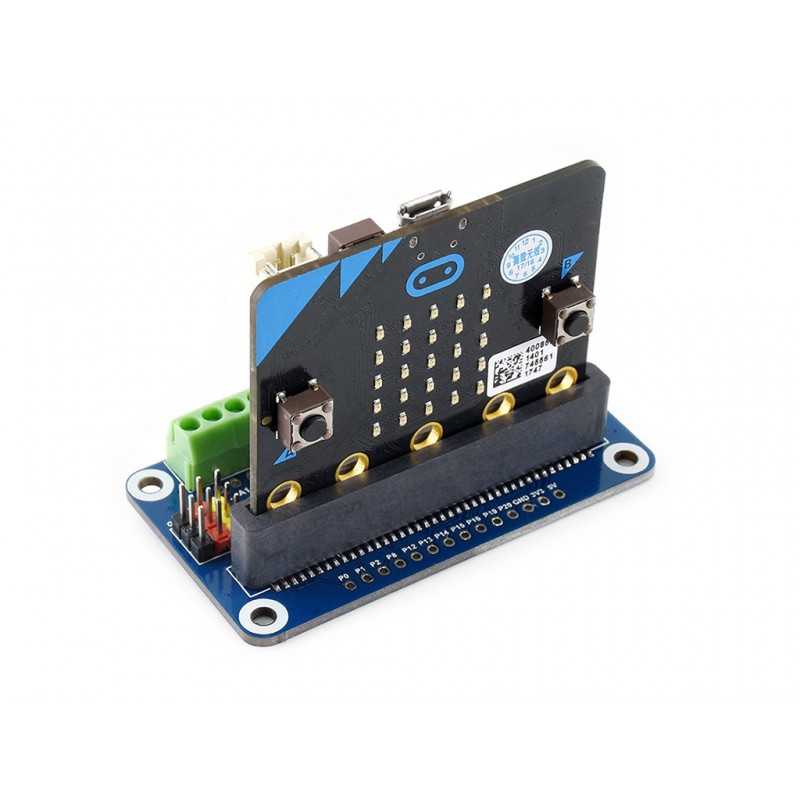

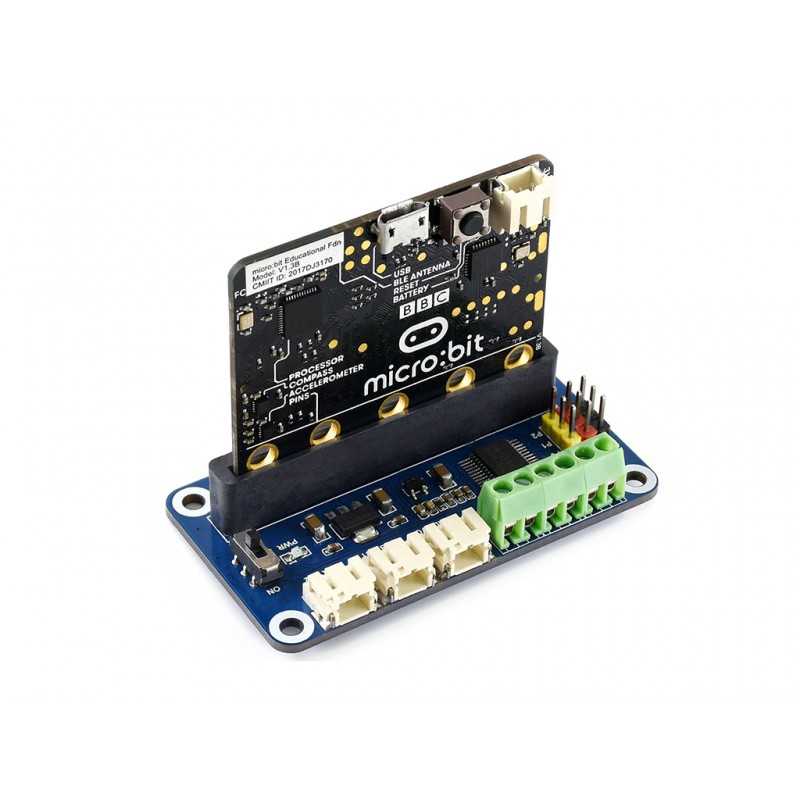

• micro:bit edge connector, directly pluggable
• 2x DC motor interfaces, 3x servo interfaces
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
• Onboard multi connector options for DC motors in different specifications, onboard standard servo headers
• Comes with development resources and manual (micro:bit graphical examples)

Specifications:

• Power supply: 6V~12V (VIN terminal)
• Servo voltage: 5V
• Logic voltage: 3.3V
• Driver: TB6612FNG
• Dimension: 65mm x 36mm
• Mounting hole size: 3.0mm

Dimensions:

Development Resources:

• Wiki
