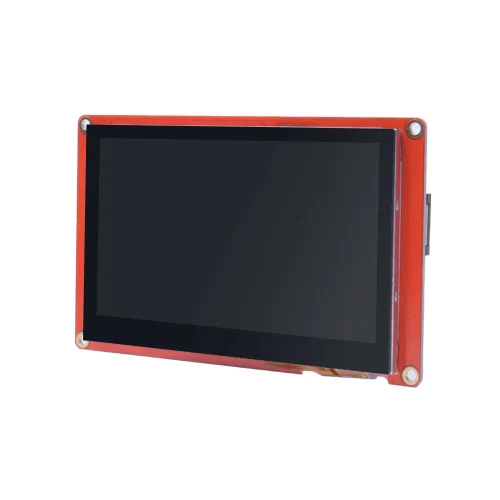

NX8048P050-011C – Nextion 5.0 inch Intelligent Serial Capacitive HMI Touch Screen

NX8048P050-011C – Nextion 5.0 inch Intelligent Serial Capacitive HMI Touch Screenn

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or device. Nextion is mainly applied to the field of IoT or consumer electronics. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software, users can create and design their own interfaces for the Nextion display.

NX8048P050-011C – Nextion 5.0 inch Intelligent Serial Capacitive HMI Touch Screen Technical Specifications

• Resolution: 800×480 pixels It can also be set to 480×800
• Operating Voltage: Min= 4.5, Max= 6.0V, Normal: 5.0V
• Working Current: Normal SLEEP Mode (low power=0)= 4.5mA, Deep SLEEP Mode (low power=1)=0.25mA
• Serial Port Baud Rate: 9600 bps
• Serial Port Mode: TTL
• Serial Port: 4Pin_2.54mm
• SD card socket: Yes (FAT32 format), support max 32G Micro SD Card.
• Touch Type: Resistive
• Touch Resistance: >1 million
• Backlight: LED
• Backlight life (Average): >30,000 Hours
• Brightness: 250nit
• Weight:108g

Note: Suitable power supply must be 5V,1A, DC to operate.
