Orange Pi 800
Orange Pi 800 is a powerful, easy-to-use mini PC in a keyboard. It uses the Rockchip RK3399 SoC, and has 6-core ARM® 64-bit processor,4GB LPDDR4, dual-band (2.4GHz and 5.0GHz) wireless WiFi, Bluetooth 5.0, Gigabit Ethernet, 4K HD video output,2*USB 3.0 and 1* USB 2.0 ports. Orange Pi 800 offers a range of different ports .You can insert TF card,display screens and other devices. 26 Pin interface is reserved on the keyboard, which is convenient for users to complete some basic experimental projects.
4 GB LPDDR4 RAM, 64 GB eMMC
Meet the needs of daily office, entertainment and shopping
Orange Pi 800 delivers outstanding development performance that you can use to start taking control of the world around you. It is also an educational tool for students of all ages.
Compact, space-saving and easy to place
Orange Pi OS pre-installed
with a huge range of software downloads

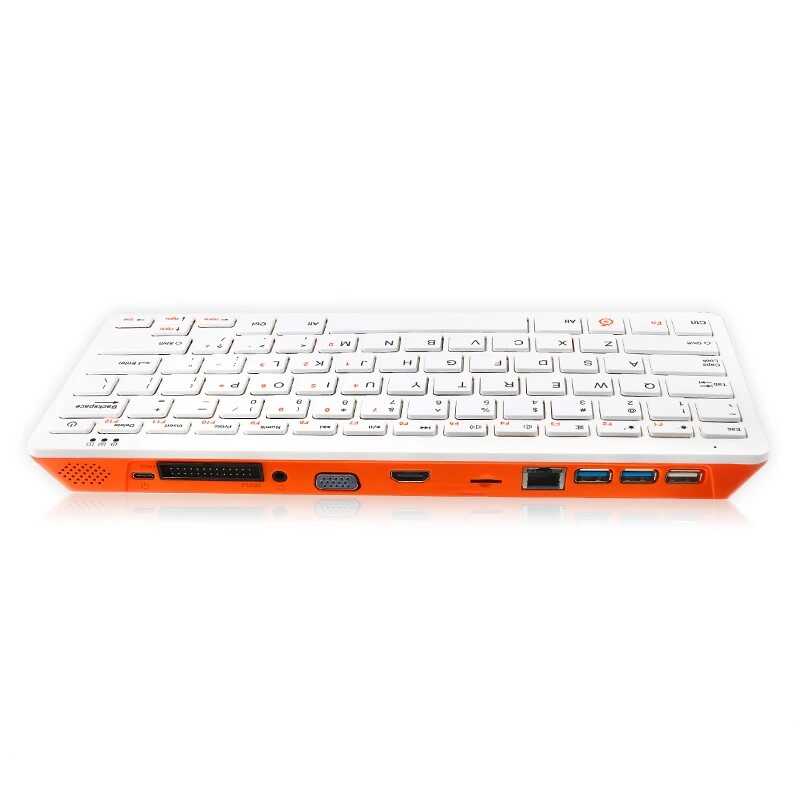

Multiple functional interfaces, Rich demand
The heat-conducting silicagel,Better heat dissipation effect
Orange Pi 800 has specially designed thermals and a piece of heat-conducting silicagel to keep your computer cool and silent.
Product parameter
CPU |
• RockchipRK3399(28nm HKM Gprocess) • 6-core ARM® 64-bit processor • Based on the large and small size core architecture of big.LITTLE: Dual-core Cortex-A72 up to 1.8GHz(large core)+ Quad-core Cortex-A53 up to 1.4GHz(small core) |
GPU |
ARM Mali-T860MP4 |
RAM |
4GB(LPDDR4) |
EMMC |
64GB |
Ethernet |
Gigabit Ethernet |
WiFi |
Dual-band(2.4GHz and 5.0GHz)IEEE 802.11a/b/g/n/ac wireless WiFi |
Bluetooth |
Bluetooth5.0,BLE |
Video Output |
1*HDMI2.0,Supports 4K@60fps output,VGA*1 |
Audio |
Output:3.5mm Jack,HDMI2.0,Speakers Input:MIC |
Keyboard |

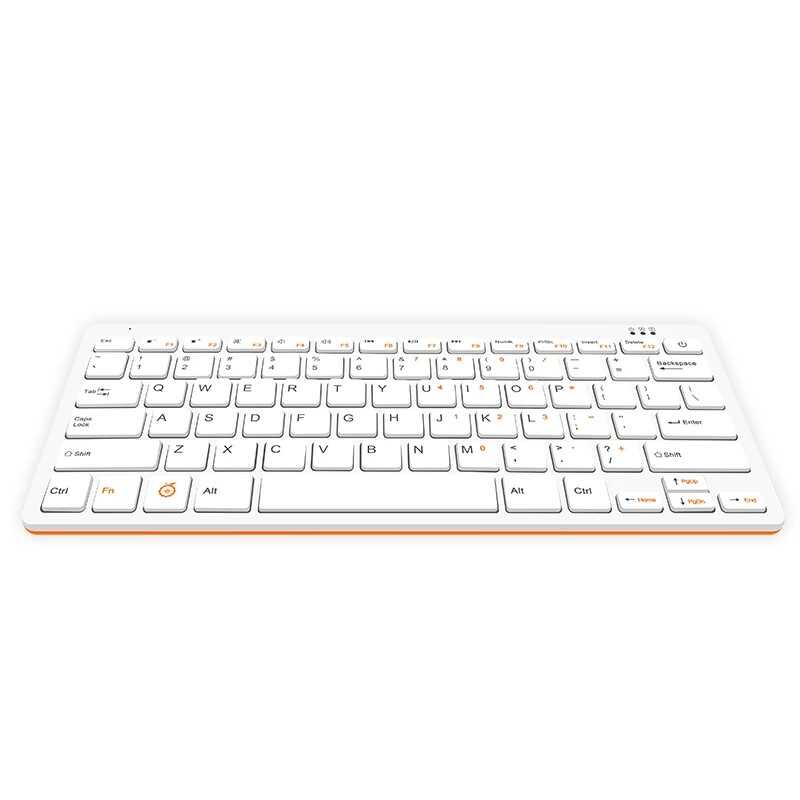

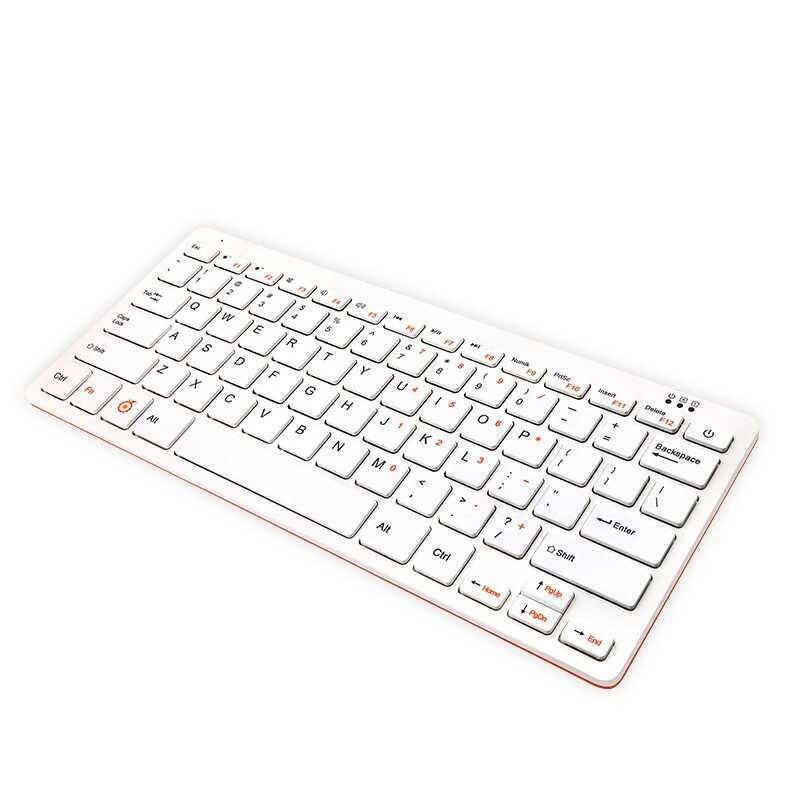

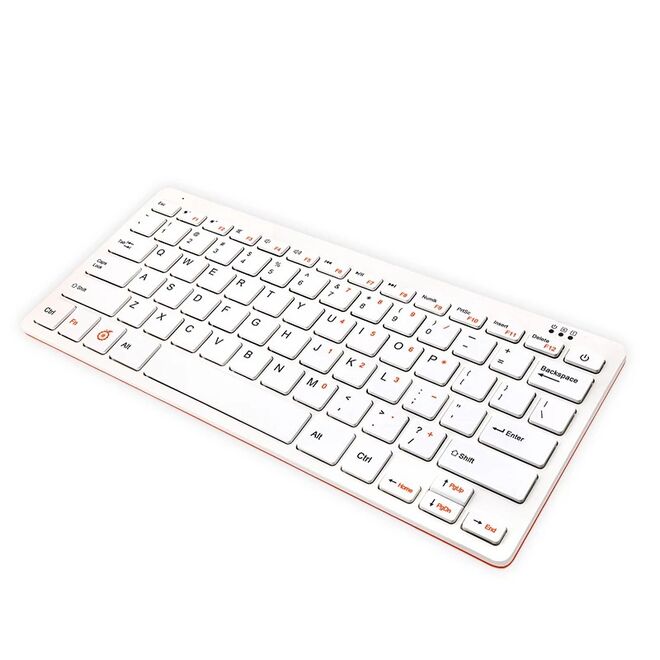

78-key QWERTY Keyboard |
USB port |
USB2.0*1;USB3.0*2 |
Power Supply |
Type-C |
GPIO |
26Pin |
Supported OS |
Orange Pi OS、Manjaro、Ubuntu22.04、Debian11 |
Appearance specification introduction
Dimensions |
286mmX122mmX22mm |
Weight |
385g |
