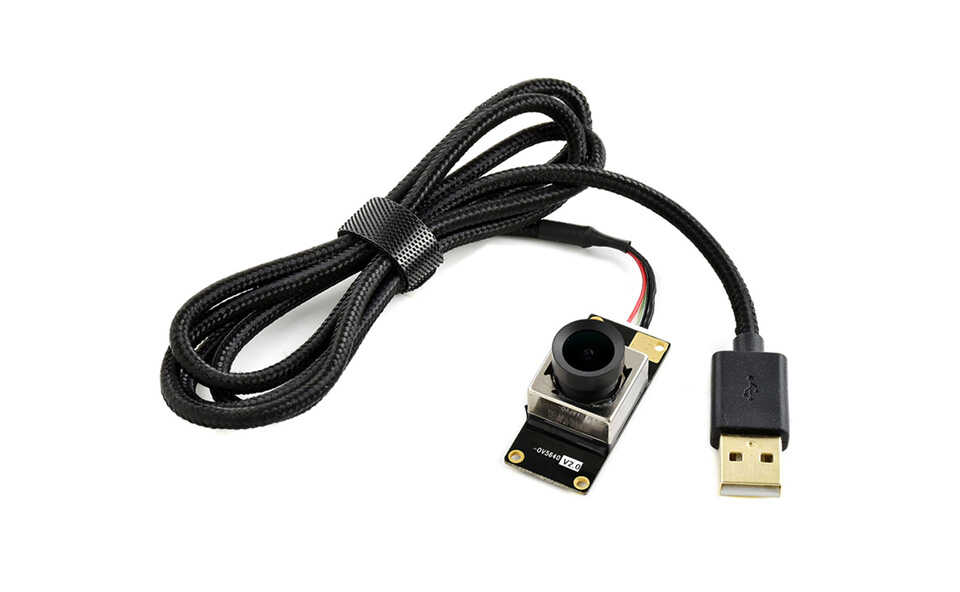

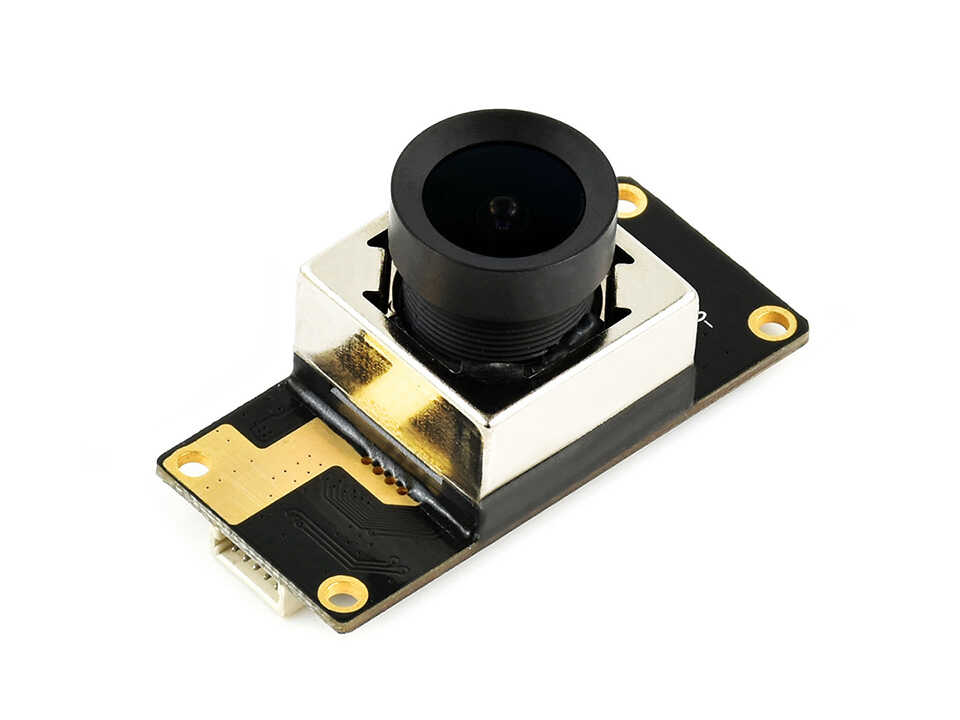

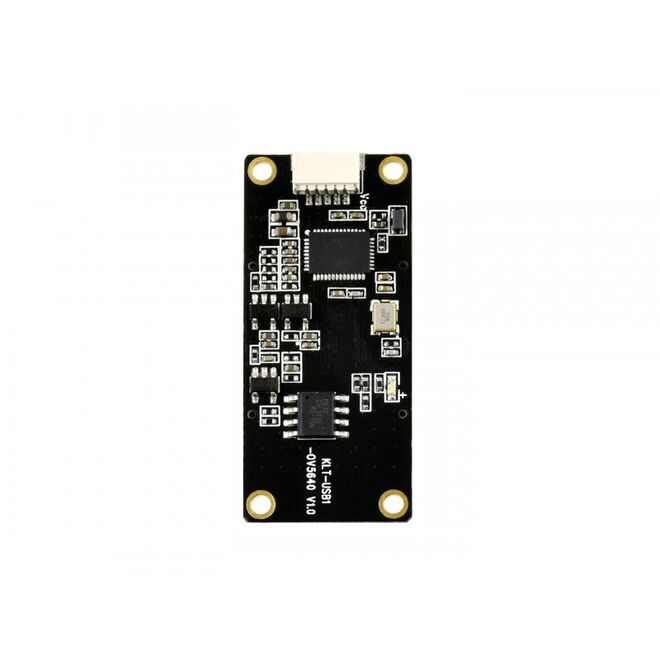

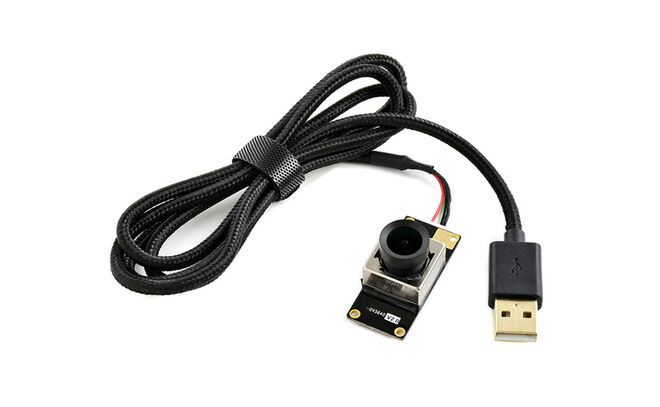

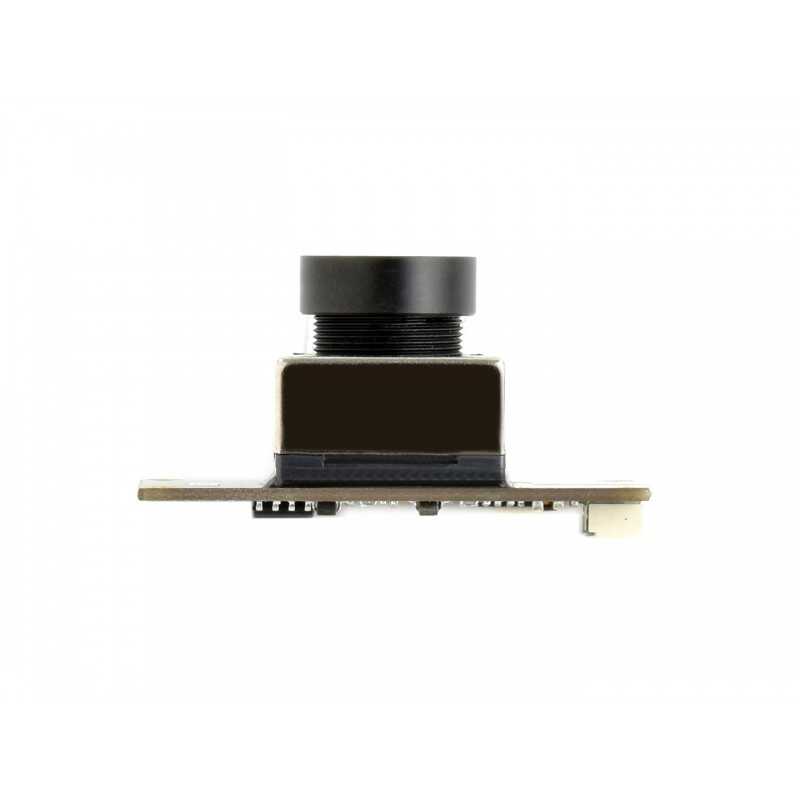

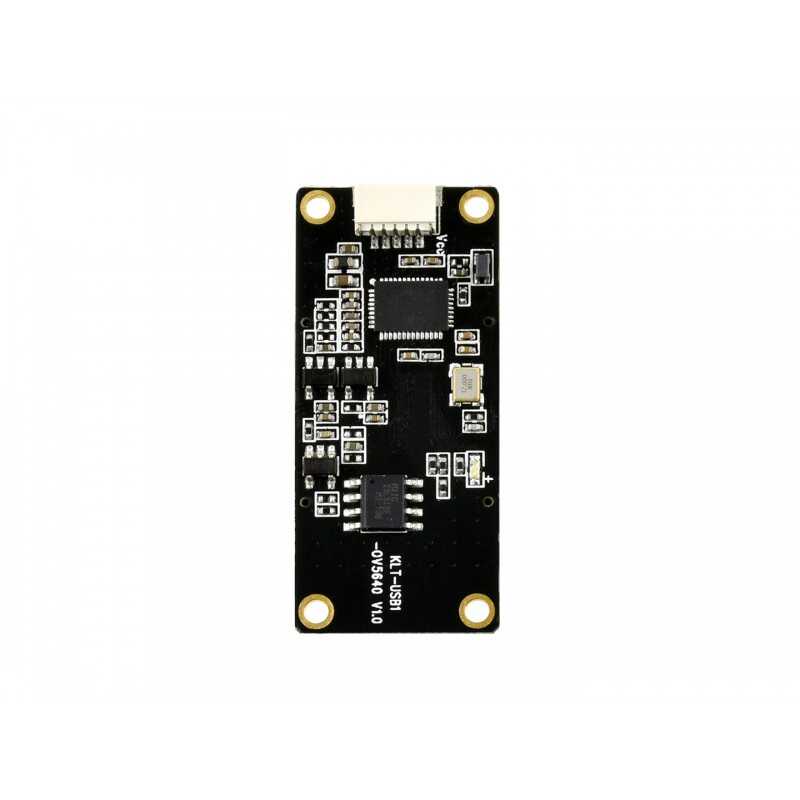

OV5640 Plug and Play USB Camera (A) - 5MP Video Auto Focus

OV5640 5MP USB Camera (A), Auto Focusing, Video Recording, Plug-And-Play

OV5640 5MP USB Camera (A) is a USB camera board module used for boards with USB input on development boards. It also expands the capabilities of your microcontroller thanks to its ability to take pictures, flash, record audio and video.

OV5640 5MP USB Camera (A) Technical Specifications:

• Megapixels: 5
• Sensor: OV5640
• Interface: USB (UVC 1.0 Compliant)
• Camera:
• Sensor Size: 1.4”
• Aperture (K): 2.1
• Focal Length (EFL): 2.5mm
• Field of View (FOV): 135° (V) / 95° (H) / 70° (E)
• Focus: Auto Focus
• Picture:
• Format Support: MJPG / YVY2
• Static Image Resolution: 2592 x 1944
• Video Recording:
• 5 FPS 2592x1944
• 15 FPS 1920x1080
• 15 FPS 1280x720
• Operating Voltage: 5V ± 5%
• Camera Size: 18.00 x 18.00 x 19.39 mm
• Module Size: 18.00 x 36.00 mm
