OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF (AF Auto-Focus)

OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF (AF Auto-Focus)

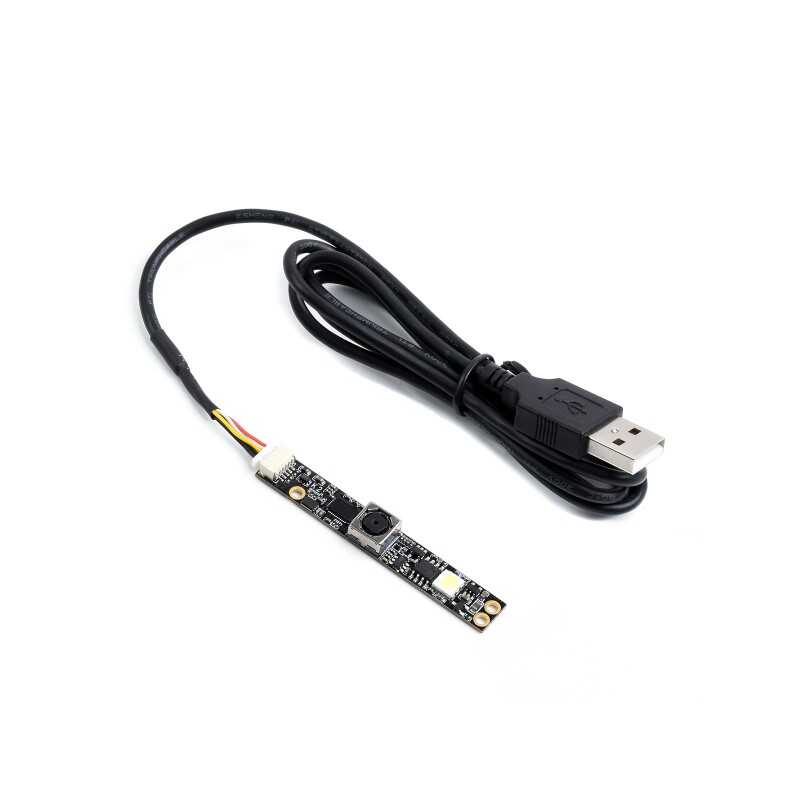

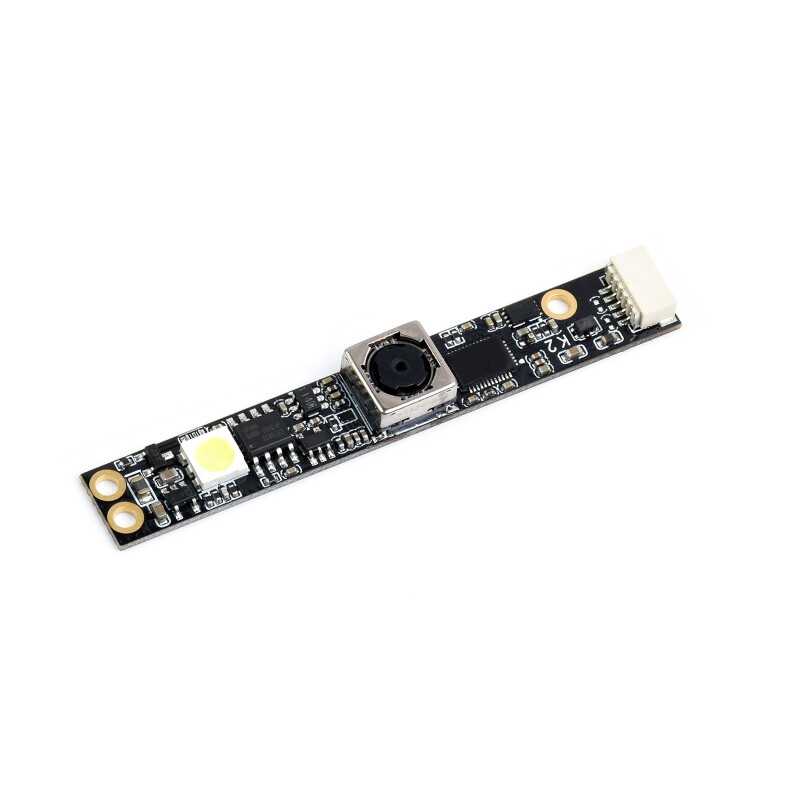

OV5640 5MP USB Camera is a USB camera board module used for boards with USB input on development boards. With a resolution of 2592 x 1944 pixels, this card is capable of taking photos at up to 30 frames per second. It also expands the capabilities of your microcontroller thanks to the ability to take pictures or record videos.

OV5640 5MP USB Camera Technical Specifications:

• Megapixel: 5
• Sensor: OV5640
• Interface: USB 2.0e
• Camera:
• Sensor Size: 1/4”
• Aperture (K): 2.8
• Focal Length (EFL): 3.29mm
• Field of View (FOV): 68°
• Collision: < 1%
• Focusing: (B): AF Auto Focus / (C): FF Fixed Focus
• Picture:
• Format Support: MJPG, YUV422
• Static Image Resolution: 2592 x 1944
• Video Recording:
• 15 FPS 2592 x 1944
• 30 FPS 1920 x 1080
• 30 FPS 1280 x 720
• Operating voltage: 5V ± %5
• Camera Size: 8.5 x 8.5mm
• Module Size: 9 x 62 mme
