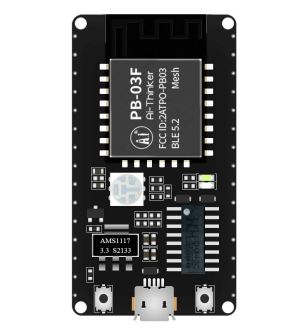

PB-03F WiFi Bluetooth Development Module

The PB-03F Development Module is a high-performance Wi-Fi and Bluetooth development board that excels in wireless communication. Based on the powerful ESP32 chip, this module supports various wireless communication protocols, including WEP, WPA, WPA2, and WPA3 security standards for Wi-Fi, as well as BLE 4.2 and 5.0 compatibility for Bluetooth. The advanced ESP32 processor offers low power consumption along with a wide range of peripheral interfaces, including 32-bit UART, GPIO, ADC, PWM, I2C, and SPI. The PB-03F is designed for various applications, including smart home systems, wearable devices, mobile applications, and IoT projects. Its high processing power and versatile connectivity options provide developers with flexible and scalable solutions.

Technical Specifications of PB-03F WiFi Bluetooth Development Module:

• Frequency: Operates in the 2.4 GHz band for Wi-Fi. Bluetooth communication also occurs at the same frequency.
• Memory: Typically features 520 KB of RAM and 4 MB of flash memory.
• Communication Protocols: Supports Wi-Fi: WEP, WPA, WPA2, WPA3 security standards. Bluetooth supports BLE (Bluetooth Low Energy) 4.2 and 5.0 protocols.
• Wireless Communication: Equipped with Wi-Fi and Bluetooth capabilities for wireless communication.
• Power Management: Includes low power consumption modes. Sleep modes are also available to ensure energy efficiency based on application requirements.
• Software Support: Compatible with popular software libraries and development environments, such as Arduino IDE and ESP-IDF.
• Operating Modes: Generally operates in AP (Access Point) and STA (Station) modes. The AP mode allows the device to function as an access point, while the STA mode enables connection to a wireless network.
• Power Requirements: Operates at 3.3V.
• Processor: Based on a powerful ESP32 microcontroller.

Useful Document:

• DataSheet
