PIC K150 ICSP Programmer - USB Auto Programming, low cost, high

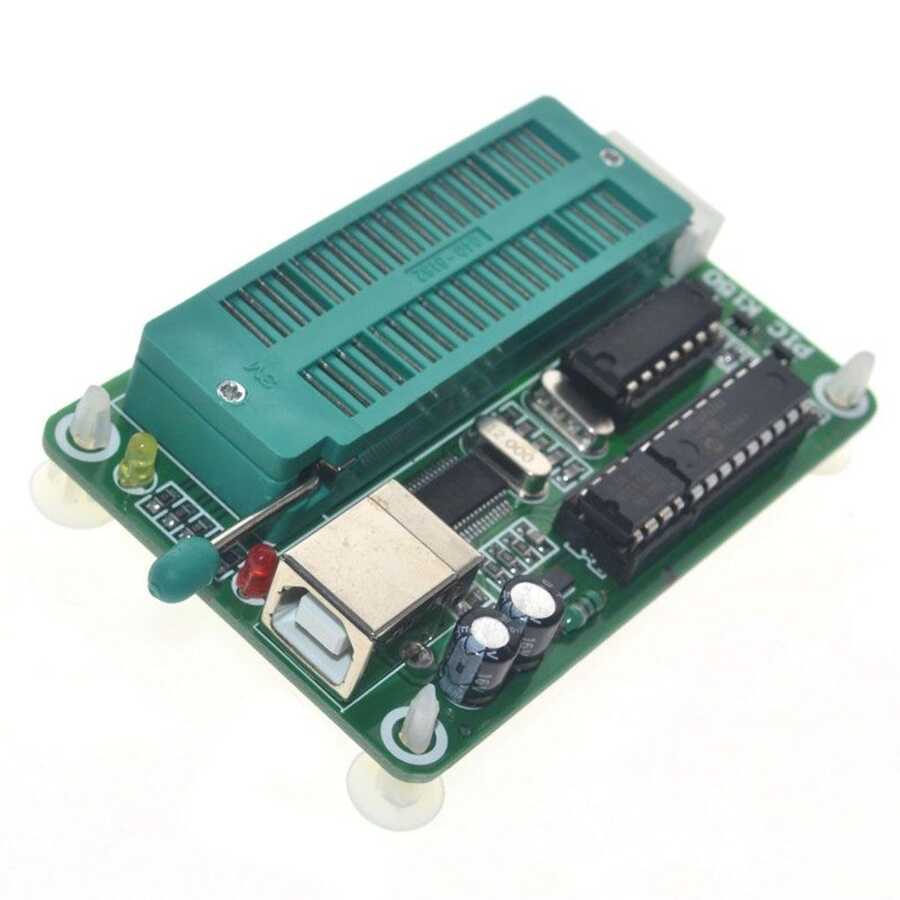

It is a performance PIC programmer. PIC K150 ICSP Programmer supports the most popular PIC chips, uses programmed, read, encryption, high-speed USB communication, fast programming. The programming quality is stable and reliable. PIC K150 ICSP Programmer is equipped with 40pin DIP programming Block, direct programming of 8pin - 40pin DIP chip. Software compatible with PIC K150 is Windows98 and Windows2000/NT, Windows XP/windows7/Windows 8/ Windows 10 operating system.

PIC K150 ICSP Programmer Technical Specifications:

• It supports the most popular programming PIC chips, reading, encryption and other features.
• Only a USB cable is required for complete printing with no external power source or any cables.
• PICSTARTPLUS is much faster than programming.
• The chip can easily read the contents of the program area.
• It provides automatic programming verification.
• Comprehensive prompts allow users to understand the working status.

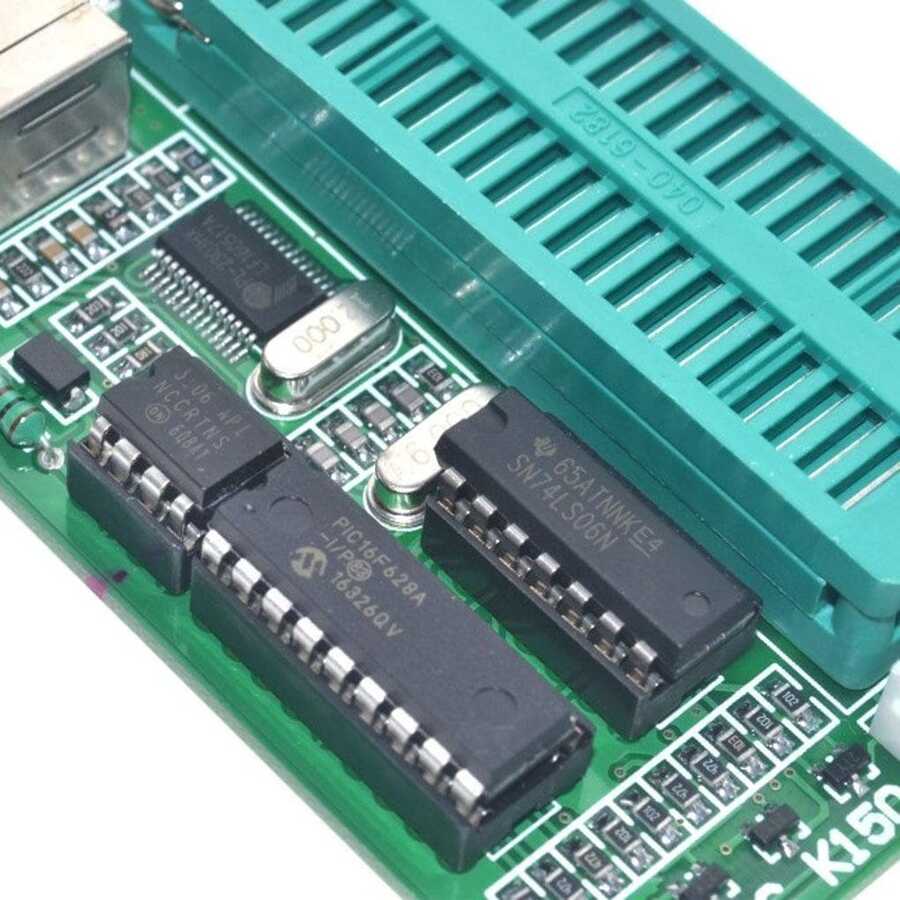

• With the 40pin ZIF programming of the chair, the 8pin to 40pin directly programmable PIC microcontroller chip can be programmed using ICSP online or adding conversion blocks. The 8 pin 40 pin board outside the chip can be downloaded directly from the online ICSP output.
• Compatible with Windows98 and Windows2000/NT, Windows XP / Windows 7 and some other operating systems.
• The programming software provides easy-to-use instructions.
• CIs from the 18F family are not programmable.

PIC K150 ICSP Programmer Dimensions:

Supported PIC MCU models:

• 10 Series: PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222
• 12C Series: PIC12C508, PIC12C508A, PIC12C509, PIC12C509A, PIC12C671, PIC12C672, PIC12CE518, PIC12CE519,PIC12CE673, PIC12CE674
• 12F Series: PIC12F508, PIC12F509, PIC12F629, PIC12F635, PIC12F675, PIC12F683
• 16C Series: PIC16C505, PIC16C554, PIC16C558, PIC16C61, PIC16C62, PIC16C62A, PIC16C62B, PIC16C63, PIC16C63A, PIC16C64, PIC16C64A, PIC16C65, PIC16C65A, PIC16C65B, PIC16C66, PIC16C66A, PIC16C67, PIC16C620, PIC16C620A, PIC16C621, PIC16C621A, PIC16C622, PIC16C622A, PIC16C71,PIC16C71A, PIC16C72, PIC16C72A, PIC16C73, PIC16C73A, PIC16C73B, PIC16C74, PIC16C74A, PIC16C74B, PIC16C76, PIC16C77, PIC16C710, PIC16C711, PIC16C712, PIC16C716, PIC16C745, PIC16C765, PIC16C773, PIC16C774, PIC16C83, PIC16C84
• 16F Series: PIC16F505, PIC16F506, PIC16F54, PIC16F57, PIC16F59, PIC16F627, PIC16LF627A, PIC16F627A, PIC16F628, PIC16LF628A, PIC16F628A, PIC16F630, PIC16F631, PIC16F631-1, PIC16F636, PIC16F636-1, PIC16F639, PIC16F639-1, PIC16F648A, PIC16F676, PIC16F677, PIC16F677-1, PIC16F684, PIC16F685, PIC16F685-1, PIC16F687, PIC16F687-1, PIC16F688, PIC16F689, PIC16F689-1, PIC16F690, PIC16F690-1, PIC16F716, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F83, PIC16F84, PIC16F84A, PIC16F87, PIC16F88, PIC16F818, PIC16F819, PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F873A, PIC16LF873A, PIC16F874, PIC16F874A, PIC16F876, PIC16F876A, PIC16F877, PIC16F877A.
• 18 Series: PIC18F242, PIC18F248, PIC18F252, PIC18F258, PIC18F442, PIC18F448, PIC18F452, PIC18F458, PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320, PIC18F2321, PIC18F4210, PIC18F2331, PIC18F2450, PIC18F2455, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2550, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F4220, PIC18F4320, PIC18F6525, PIC18F6621, PIC18F8525, PIC18F8621, PIC18F2331, PIC18F2431, PIC18F4331, PIC18F4431, PIC18F2455, PIC18F2550, PIC18F4455, PIC18F4580, PIC18F2580, PIC18F2420, PIC18F2520, PIC18F2620, PIC18F6520, PIC18F6620, PIC18F6720, PIC18F6585, PIC18F6680, PIC18F8585, PIC18F8680

Where to download software for programmer?

Pickit 2 programmer from Microchip can be used.

Can it be used from Linux? What software is used to compile and program?

This Microcontroller uses K150 software. The installer comes in x86 format, this Therefore there is no Linux option. However, there is a vulnerability that could be similar for K118. There is a resource project.

ICSP Programmer compatible for ATMEGA?

No, it is made for PIC controllers.

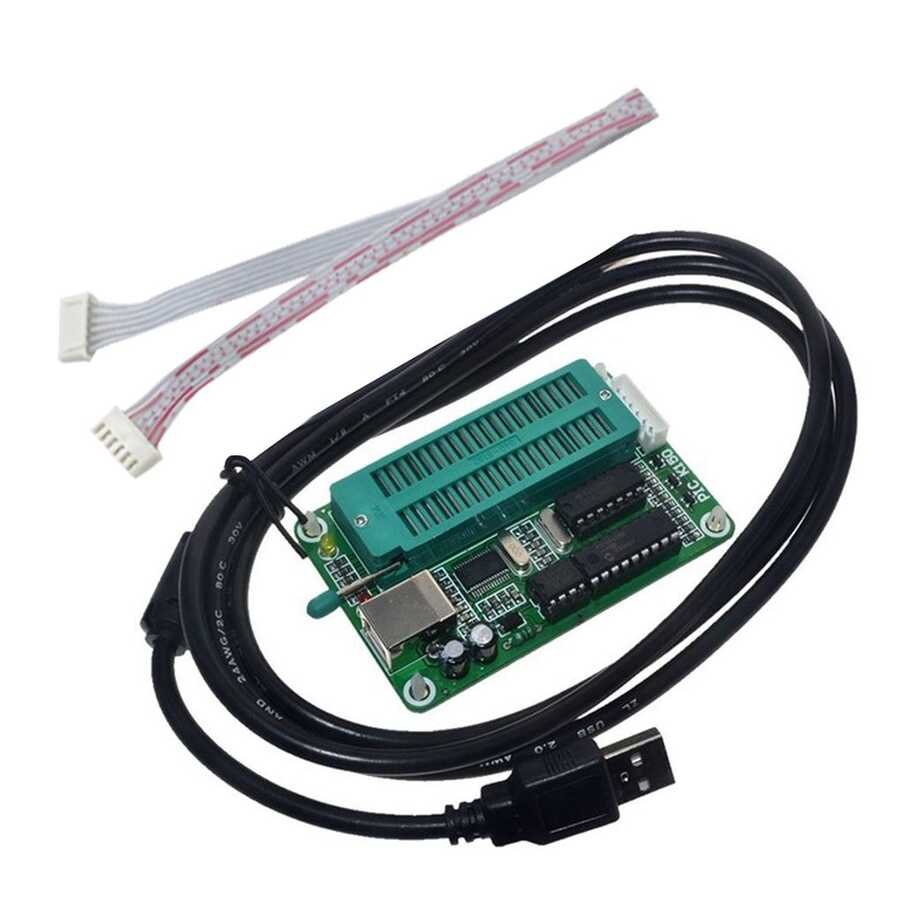

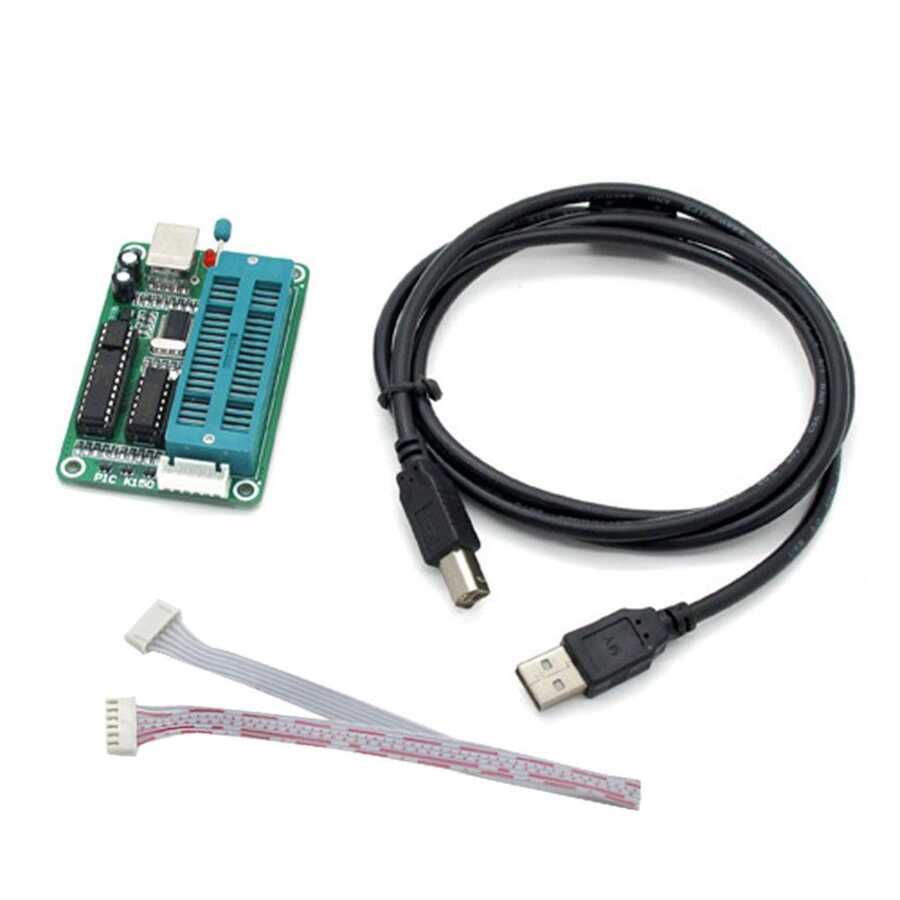

PIC K150 ICSP Programmer Package Contents:

• 1 x PIC K150 ICSP Programmer - USB Automatic Programming
• 1 x ICSP Cable
• 1 x USB Cable
