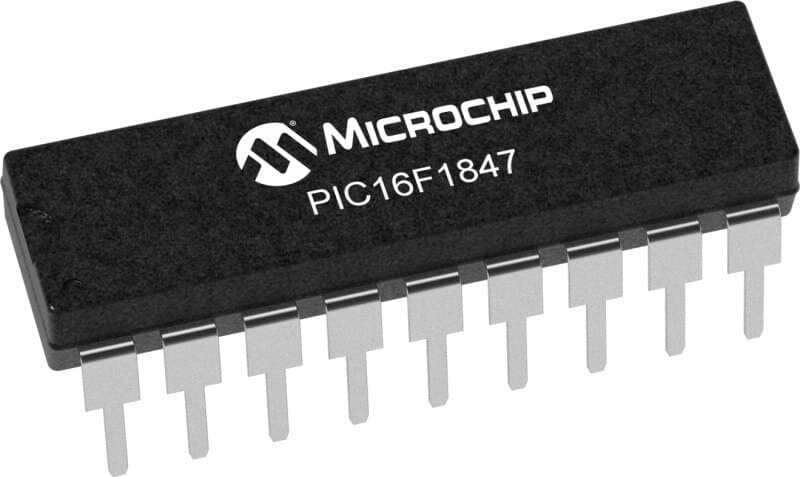

PIC16F1847-I/P DIP-18 32MHz 8-Bit Microcontroller

PIC16F1847-I/P DIP-18 32MHz 8-Bit Microcontroller

PIC16F1847 Microcontroller, This PIC16 series microcontroller produced by Microchip company has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 32MHz and has a DIP-18 sheath. This microcontroller with FLASH memory type works in the input voltage range of 1.8V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC16F1847 Microcontroller Technical Specifications:

• Series: 16F Series
• Model: PIC16F1847
• Input Voltage: 1.8V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 14KB (8K x 14)
• Ram Size: 1K x 8
• EEPROM Size: 256 x 8
• Number of Bits: 8-Bit
• Speed: 32MHz
• Total Number of Inputs-Outputs: 15
• Sheath Type: DIP-18
• Mounting Type: THT
• ROHS Standards: SUITABLE

Similar Products:

• 16F Series Microcontrollers
• PIC Series Microcontrollers
• Microcontrollers

Useful Links / Documents:

• PIC16F1847 Microcontroller Datasheet
