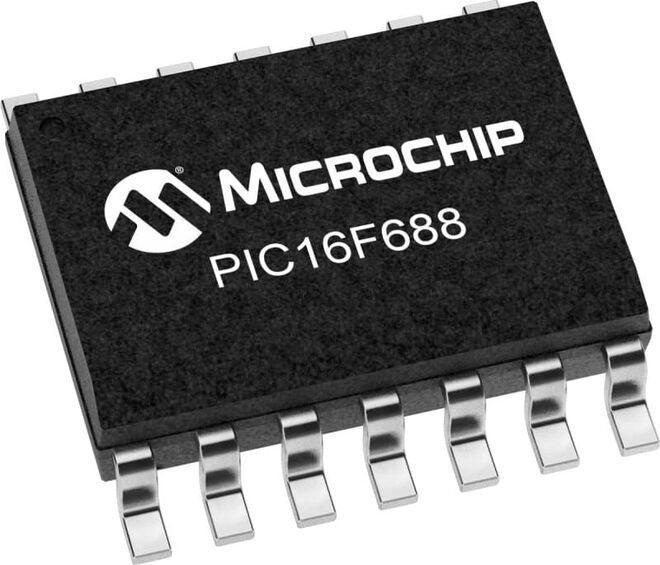

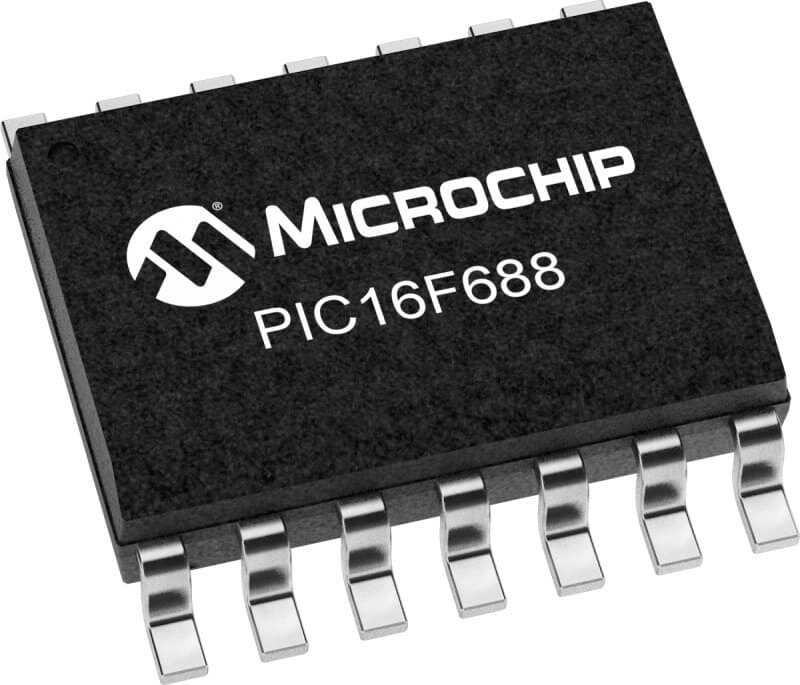

PIC16F688-I/ST SMD TSSOP14 20MHz 8-Bit Microcontroller

PIC16F688-I/ST SMD TSSOP14 20MHz 8-Bit Microcontroller

PIC16F688 Microcontroller, This PIC16 series microcontroller produced by Microchip has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 20MHz and has a TSSOP14 sheath. This microcontroller with FLASH memory type works in the input voltage range of 2V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC16F688 Microcontroller Technical Specifications:

• Series: 16F Series
• Model: PIC16F688
• Input Voltage: 2V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 7KB (4K x 14)
• Ram Size: 256 x 8
• EEPROM Size: 256 x 8

• Number of Bits: 8-Bit
• Speed: 20MHz
• Total Number of Inputs-Outputs: 12
• Case Type: TSSOP14
• Mounting Type: SMT
• ROHS Standards: SUITABLE
