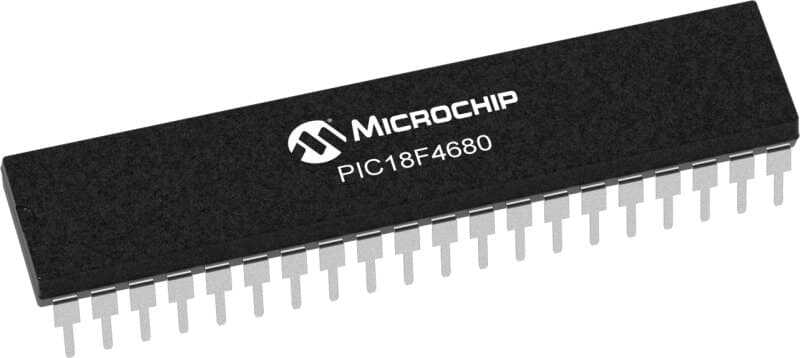

PIC18F4680 I/P DIP-40 8-Bit 40MHz Microcontroller

PIC18F4680 I/P DIP-40 8-Bit 40MHz Microcontroller

PIC18F4680 Microcontroller, This PIC18 series microcontroller produced by Microchip has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 40MHz and has a DIP-40 cover. This microcontroller with FLASH memory type works in the input voltage range of 4.2V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC18F4680 Microcontroller Technical Specifications:

• Series: 18F Series
• Model: PIC18F4680
• Input Voltage: 4.2V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 64KB (32K x 16)
• Ram Size: 3.25KB
• EEPROM Size: 1KB
• Number of Bits: 8-Bit
• Speed: 40MHz
• Total Number of Inputs-Outputs: 36
• Sheath Type: DIP40 - 15.24mm
• Mounting Type: THT
• ROHS Standards: SUITABLE

Similar Products:

• 18F Series Microcontrollers
• PIC Series Microcontrollers
• Microcontrollers

Useful Links / Documents:

• PIC18F4680 Microcontroller Datasheet
