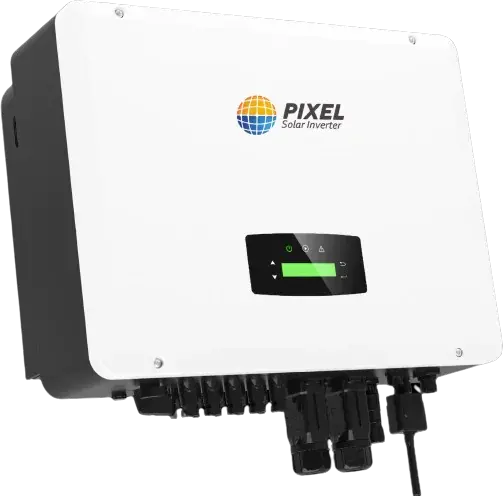

Pixel Solar Inverter 5 KW Three Phase Hybrid PXL-5KMH

Pixel Solar Inverter 5 KW Three Phase Hybrid model is designed for your large-scale solar energy projects. Standing out with its high capacity and reliable performance, this inverter offers an ideal solution for sustainable energy production. It uses energy in the most effective way, with a maximum efficiency rate of 98.9% and a European Efficiency of 96.9%. Provides maximum energy collection ability from solar panels with 2 MPPT input connection possibilities.

Provides remote monitoring and control with LCD screen and communication options such as RS485, Wi-Fi, 4G.

It has a durable and reliable performance with fan cooling, wide temperature range (-25℃~+60℃), maximum operating altitude up to 4000m and 100% maximum acclimation humidity without condensation.

NOTE: The delivery time of the product is 20 days.

Input (DC):

Maximum Input Voltage: 650V (160-800V)
Maximum DC Input Power: 7500W
MPPT Voltage Range: 200-700V
Full Load DC Voltage Range: 260-650V
Maximum Input Current Per MPPT: 13A X 2
Starting Voltage: 160V
Number of MPPTs: 2
Maximum Number of Input Strings: 1+1
Input (Battery):

Battery Type: Li-Lon
Battery Voltage Range: 40~60V
Maximum Charge/Discharge Current: 120A
Charging Method for Li-Ion: BMS Adaptation
Output (AC):

Rated AC Output Power: 5000W
Maximum AC Output Power: 6000W
AC Output Rated Current: 7.6/7.3
AC Mains Frequency Range: 50/60Hz; 400/350
AC Operating Range: 45/55Hz; 280~490Vac(Adjustable)
Maximum Output Current: 17A
Power Factor (Φ): 0.8 Lead-0.8 Lag
THDi: THD<3% (Linear Load <1.5%)
Productivity:

Maximum Conversion Efficiency: 97.90%
European Efficiency: 96.90%
MPPT Efficiency: 99.90%
Protection:

DC Reverse Polarity Protection: Yes
Output Overcurrent Protection: Yes
Anti Island Protection: Yes
Short Circuit Protection: Yes
String Fault Detection: Yes
DC/AC Surge Protection: Yes
Ground Fault Monitoring: Yes
Residual Current Protection: Yes
Temperature Protection: Yes
Battery Reverse Protection: Yes
AC Overvoltage Protection: Yes
General Data:

Width x Height x Depth: 510mm x 630mm x 290mm
Weight: 38kg
Operating Temperature Range: –25℃~+60℃
Cooling Type: Fan Cooling
Maximum Operating Altitude: 4000m
AC Output Terminal Type: OT terminal
Maximum Acclimation Humidity: 0-100% (No Condensation)
Topology: Transformerless
IP Class: IP65
Certification and Standard:

CEl 0-21 VDE-AR-N 4105,NRS 097,C 61727,G99,G98.VDE 0126-1-1, RD 1699,C10-11, IEC/EN62109 -1,IEC/EN62109 -2
EMC IEC/EN 61000-6-1EC/EN 61000-6-2EC/EN 61000-6-3EC/EN 610
Display & Communication:

Display: LCD
Communication: RS485, Wi-Fi, 4G
