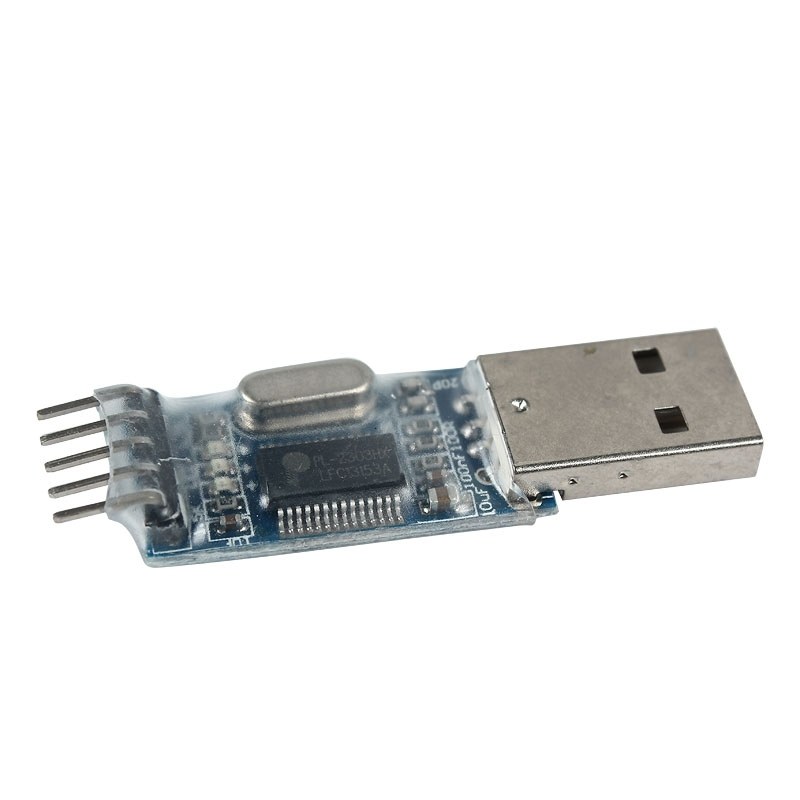

PL2303 USB-TTL Serial Converter Board

Prolific PL2303 USB-TTL serial converter cable allows you to use USB unit as TTL interface. You can connect any TTL interface unit like a sensor or developer board via this cable to computer and start a communication between them. This modul is compatible with a large number of devices as it uses 5 V logic and supply. One end of the cable is standart USB A type connector and the other side is female pin header.

Note: There is no DTR (reset) wire in this cable so it is not possible to use this board as a programmer device.

Features:

• USB to TTL converter cable
• PL2303 IC
• Wires: Red: +5 V, Black: GND, Green: Tx, White: Rx

Documents:

• Prolific PL2303 driver.
• Prolific PL2303 driver does not work well on some operating systems. To cover this problem you may visit this page.
