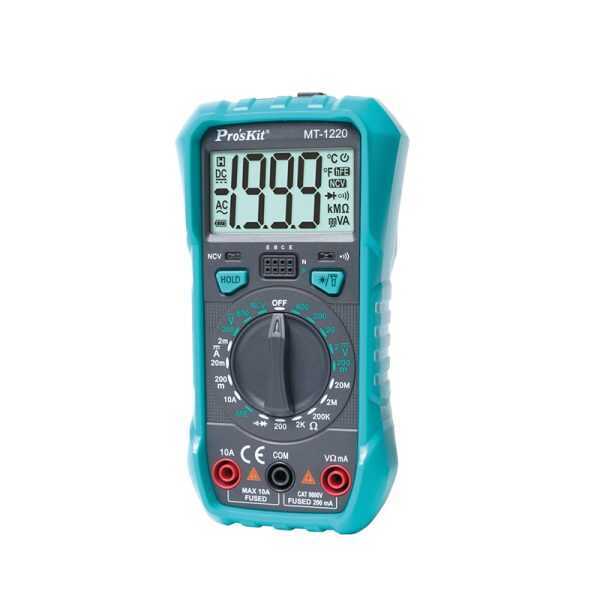

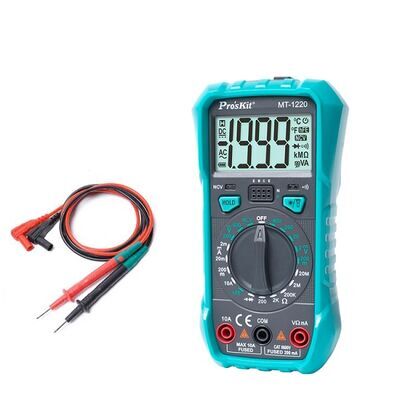

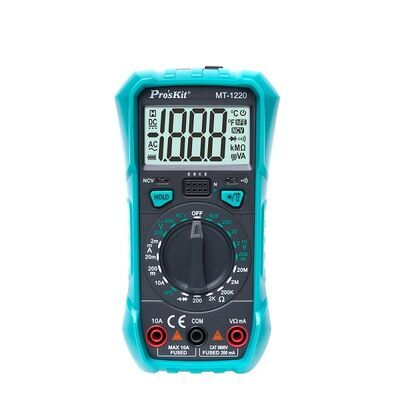

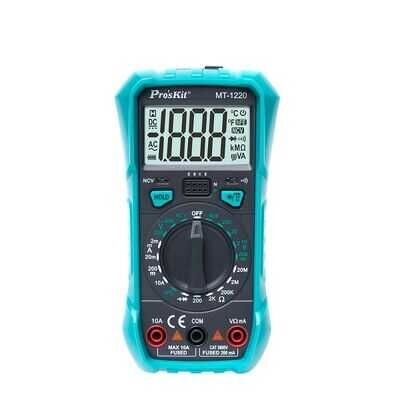

ProsKit MT-1220 Digital Multimeter

ProsKit MT-1220 Digital Multimeter

The ProsKit MT-1220 Digital Multimeter is designed for high precision and versatile usage. It is a reliable assistant for electrical measurements, electronic projects, or home tasks. The intelligent features of the MT-1220 automatically select the most suitable measurement range based on the parameter being measured, ensuring quick and accurate results. Additionally, it prioritizes user safety with protection against overload and short-circuit conditions. The ProsKit MT-1220 Digital Multimeter is a perfect choice for anyone looking to achieve professional results in electrical measurements while offering portability and ease of use.

ProsKit MT-1220 Digital Multimeter Technical Specifications:

• Measurement Ranges:

DC Voltage: 200mV / 2V / 20V / 200V / 1000V
AC Voltage: 2V / 20V / 200V / 750V
DC Current: 200A / 2mA / 20mA / 200mA / 10A
AC Current: 2mA / 20mA / 200mA / 10A
Resistance: 200 / 2k / 20k / 200k / 2M / 20M
Capacitance: 2nF / 20nF / 200nF / 2F / 20F / 200F
Temperature: -20 - 1000

• Accuracy:

Basic Accuracy: (0.5 + 3)
DC Voltage Accuracy: (0.8 + 5)
DC Current Accuracy: (1.0 + 3)
AC Voltage Accuracy: (1.2 + 5)
AC Current Accuracy: (1.5 + 5)
Resistance Accuracy: (0.8 + 3)
Capacitance Accuracy: (4 + 5)

• Display: 4000 Count LCD Display, Backlight
• Power Source: 9V Battery (not included)
• Dimensions: 180mm x 90mm x 45mm
• Weight: 400 grams
• Safety: Overload and Short Circuit Protection, Battery Warning
• Additional Features: Data Hold, Auto Shutdown
• Certifications: CE, RoHS
