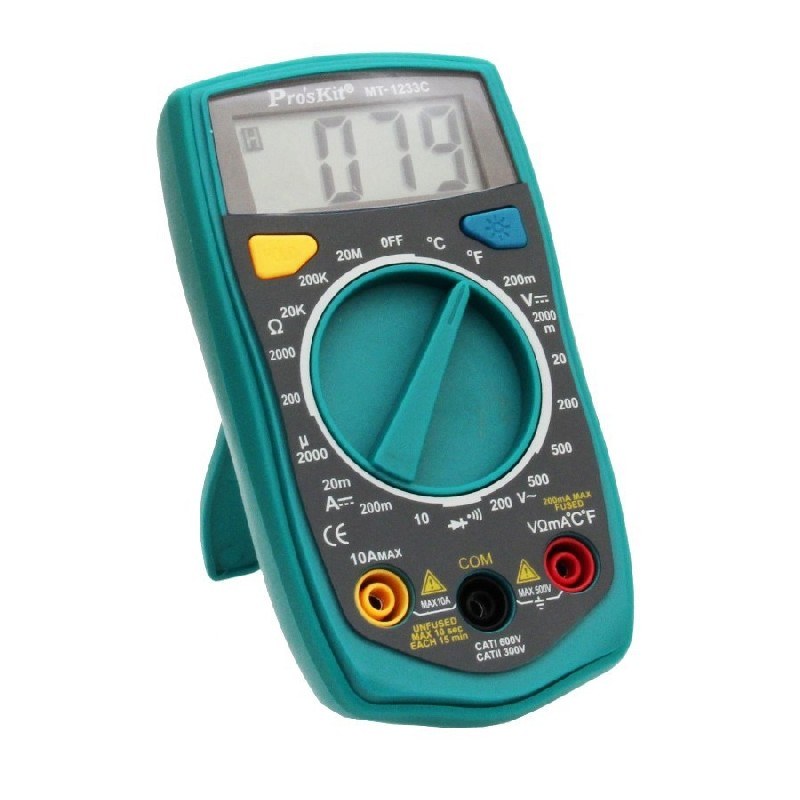

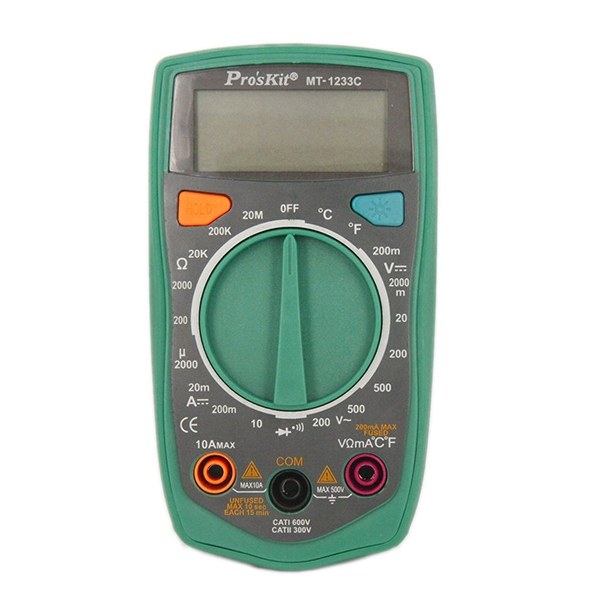

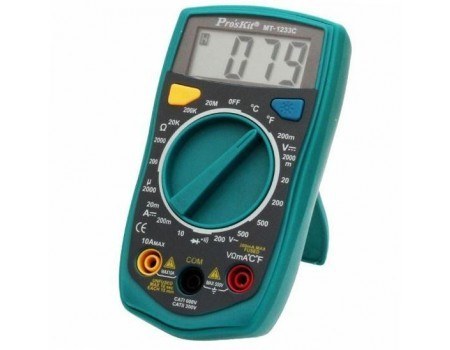

Proskit MT-1233C is a practical digital multimeter which has easy to read LCD screen, constant performance and high security.

It has DC and AC Voltage, AC current, resistor, temperature, diode and continuity measurement functions. It is an ideal device for students, home useage, basic maintenance and repair works with its high measurement sensitivity and easy to read lighted LCD screen.

GENERAL FEATURES:
  • Maximum voltage between terminal and ground: 1000V
  • Measuring time: Update on every 2-3 seconds
  • Measurement is out of range warning: "1" appears on screen.
  • Automatic negative polarity determination
  • Operating Temperature: 0℃~40℃ (Relative Humidity: 0-75%)
  • Storing Temperature: -10℃~50℃ (Relative Humidity: 0-75%)
  • Power: 2 1.5V battery AAA
  • Sizes: 130(u)*72(g)*28(y) mm
  • Approximate Weight: 130g (battery is not included)

TECHNICAL FEATURES

DC Voltage
200m/2000m/20/200V ±(0.8%+3d), 500V ±(1.0%+3d)
AC Voltage
200/500V ±(1.2%+5d)
DC Current 2000u/20m/200mA ±(1.2%+5d), 10A ±(2.5%+5d)
Resistor 200Ω ±(1.5%+5d), 2000/20k/200kΩ ±(1.0%+3d)20MΩ ±(1.0%+5d),
200MΩ ±(1.0%(rdg-l0)+10d)
Temperature -40~150C ±(1.0%+3d),
150-1000C ±(1.5%+15d)-40~302F ±(1.0%+4d),
302-1832F ±(1.5%+15d)
Continuity Test Yes
Diode Test Yes
EN61010-1 CE/CAT I 600V, CATII 300V

15404
Proskit MT-1233C 3 1/2 Digital Multimeter
Proskit MT-1233C 3 1/2 Digital Multimeter
:
690.02 TL + VAT
:
828.02 TL
