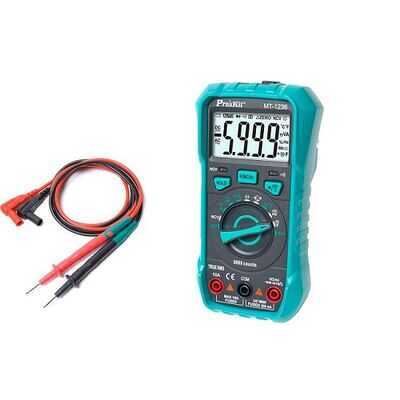

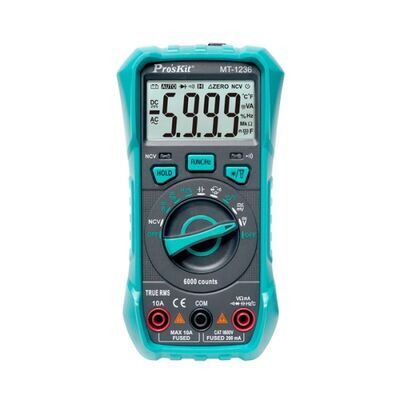

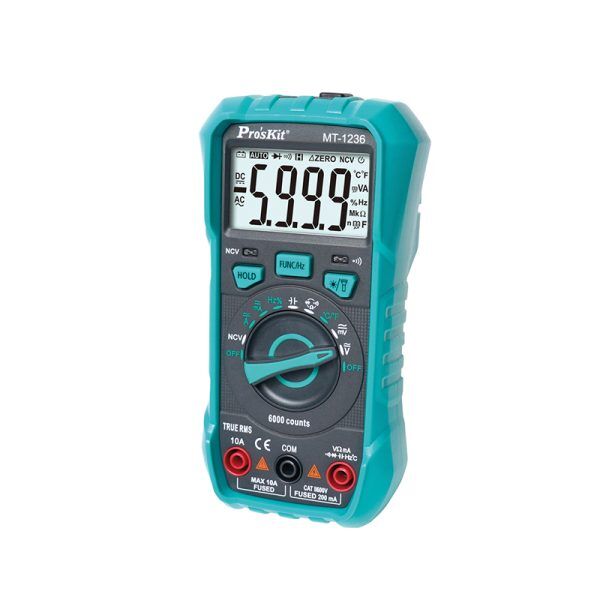

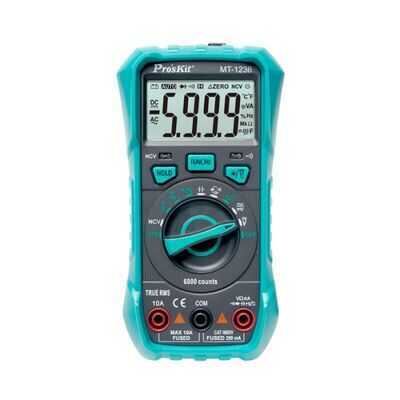

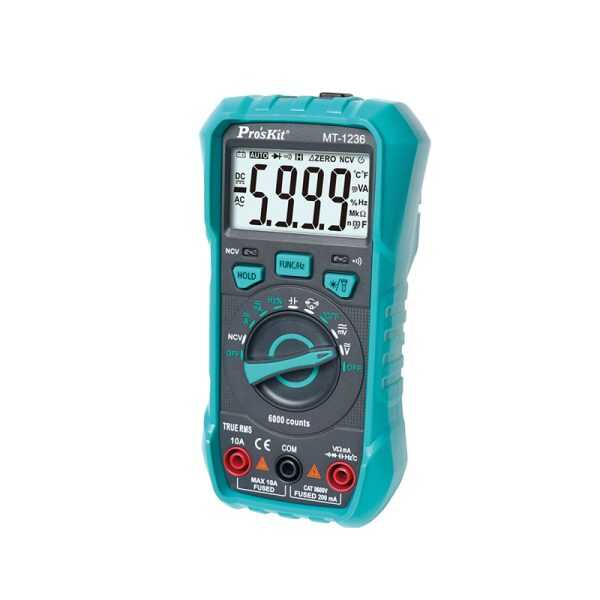

ProsKit MT-1236 Digital Multimeter

ProsKit MT-1236 Digital Multimeter

The ProsKit MT-1236 Digital Multimeter is a versatile tool designed to provide superior accuracy and reliability in electrical measurements. This multifunctional device is ideal for electrical, electronic, and home automation projects. The MT-1236, with its user-friendly interface and smart features, helps you achieve professional results with ease.

ProsKit MT-1236 Digital Multimeter Features:

Wide Measurement Range: Capable of measuring various parameters such as DC and AC voltage, DC and AC current, resistance, capacitance, and temperature.
Smart Features: Automatic range selection for fast and accurate results. It selects the most suitable range based on the measured parameter.
Safety: Provides user safety with over-load and short-circuit protection, as well as a battery voltage warning system.
Clear and Easy-to-Read Display: Backlit LCD display ensures clear readability under all lighting conditions.
Durability: Robust construction and ergonomic design make it ideal for long-term use.
Data Hold and Auto Power Off: The data hold feature allows you to easily save measurement results. Auto power-off feature for energy savings.

The ProsKit MT-1236 Digital Multimeter is a reliable choice for electricians, electronics enthusiasts, and homeowners. It combines portability and accuracy to make your tasks more efficient and safe.

ProsKit MT-1236 Digital Multimeter Technical Specifications:

• Measurement Ranges:

DC Voltage: 200mV / 2V / 20V / 200V / 1000V
AC Voltage: 2V / 20V / 200V / 750V
DC Current: 200A / 2mA / 20mA / 200mA / 10A
AC Current: 2mA / 20mA / 200mA / 10A
Resistance: 200 / 2k / 20k / 200k / 2M / 20M
Capacitance: 2nF / 20nF / 200nF / 2F / 20F / 200F
Temperature: -20 to 1000

• Accuracy:

Basic Accuracy: (0.5 + 3)
DC Voltage Accuracy: (0.8 + 5)
DC Current Accuracy: (1.0 + 3)
AC Voltage Accuracy: (1.2 + 5)
AC Current Accuracy: (1.5 + 5)
Resistance Accuracy: (0.8 + 3)
Capacitance Accuracy: (4 + 5)

• Display: 4000 Count LCD Display, Backlight
• Power Source: 9V Battery (not included)
• Dimensions: 180mm x 90mm x 45mm
• Weight: 400 grams
• Safety: Overload and Short-Circuit Protection, Battery Warning
• Additional Features: Data Hold, Auto Power Off
• Certifications: CE, RoHS
