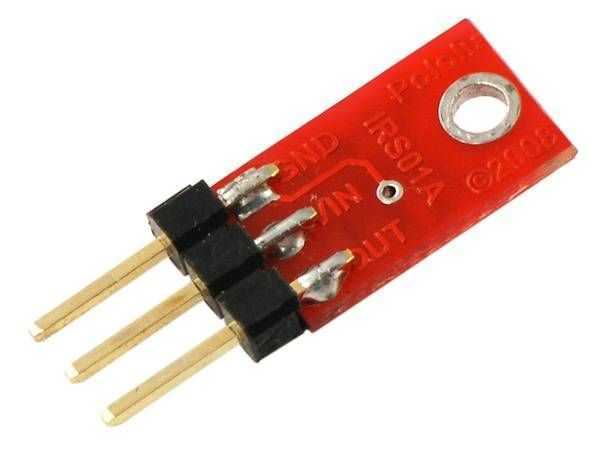

QTR-1RC Reflectance Sensor (2-Pack)

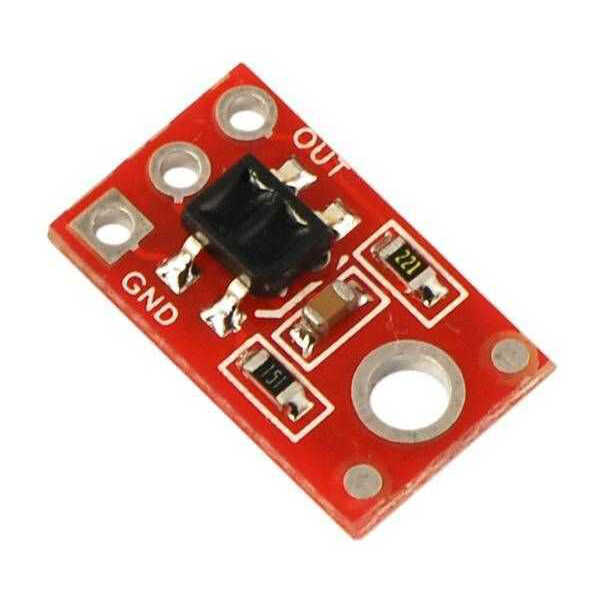

The Pololu QTR-1RC reflectance sensor carries a single infrared (IR) LED and phototransistor pair. To use the sensor, you must first charge the output node by applying a voltage to the OUT pin. You can then read the reflectance by withdrawing the externally supplied voltage and timing how long it takes the output voltage to decay due to the integrated phototransistor. Shorter decay time is an indication of greater reflection. This measurement approach has several advantages, especially when multiple units are used:

• No analog-to-digital converter (ADC) is required
• Improved sensitivity over voltage-divider analog output
• Parallel reading of multiple sensors is possible with most microcontrollers

The LED current-limiting resistor is set to deliver approximately 17 mA to the LED when VIN is 5 V. The current requirement can be met by some microcontroller I/O lines, allowing the sensor to be powered up and down through an I/O line to conserve power.

This sensor was designed to be used with the board parallel to the surface being sensed. Because of its small size, multiple units can easily be arranged to fit various applications such as line sensing and proximity/edge detection.

Features:

• 5VDC Operating Voltage
• 17mA Supply Current
• Digital I/O Compitable
• Optimal Sensing Distance: 0.125” (3mm)



Dimensions:

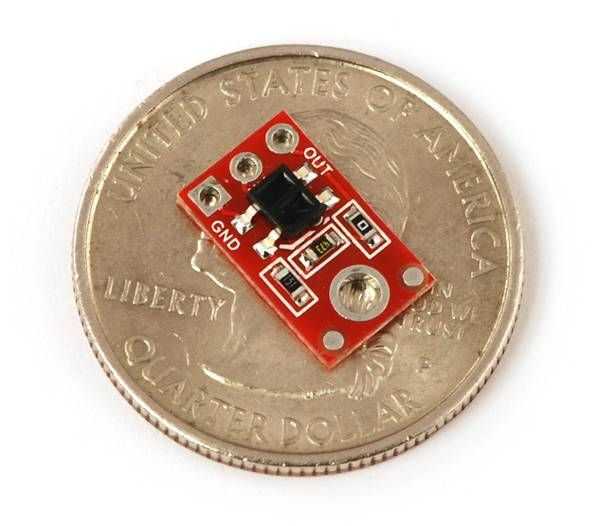

• 7.62x 12.7x 2.54 mm



• QRE1113 Datasheet
• QTR Sensor Usage and Detailed Information
• Pololu AVR Library
• QTR sensor Arduino Library
• How to Make a Line Following Robot and a Labyrinth Solver Robot?
