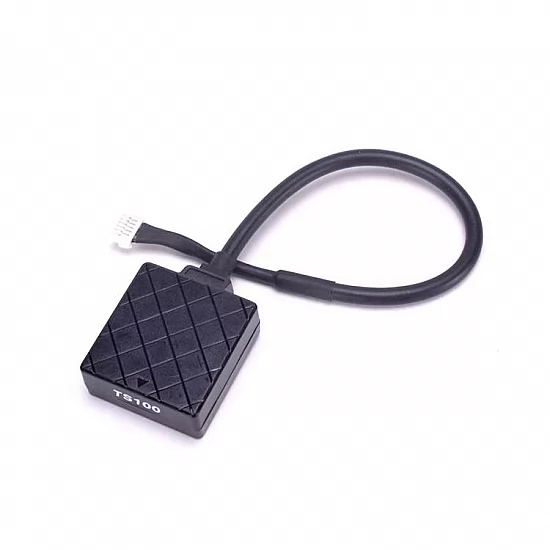

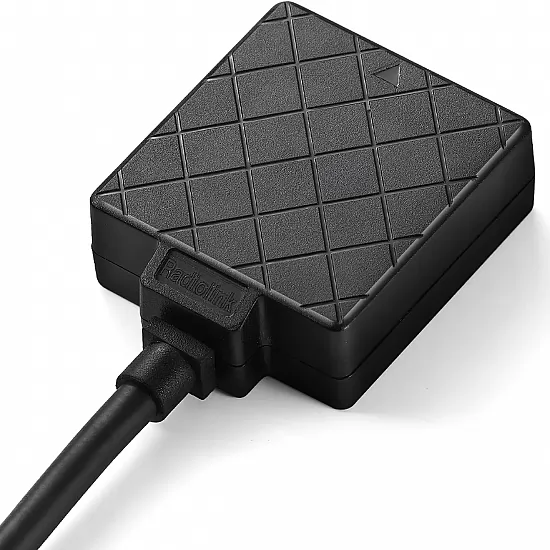

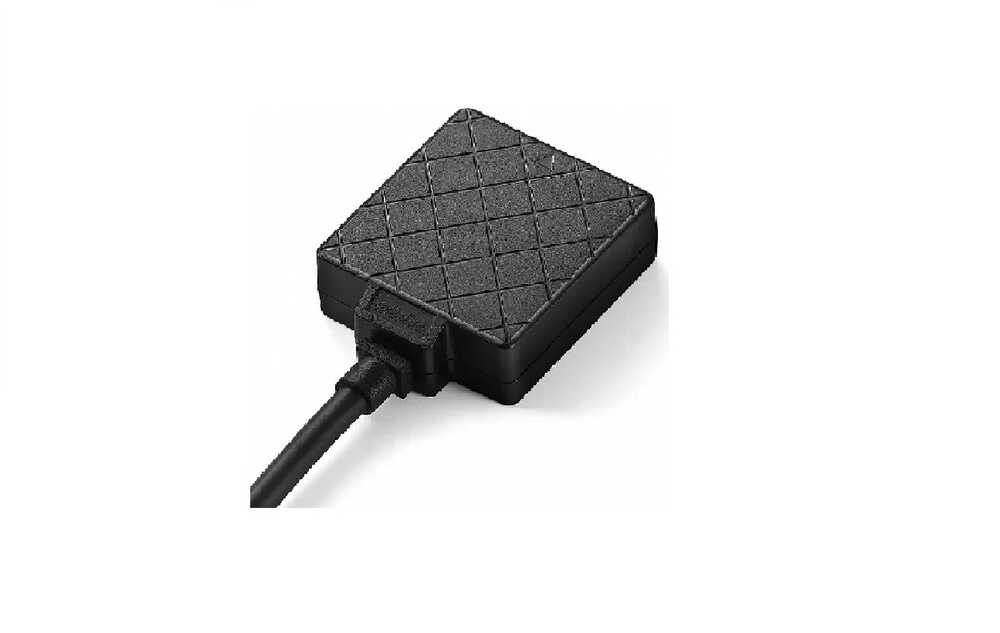

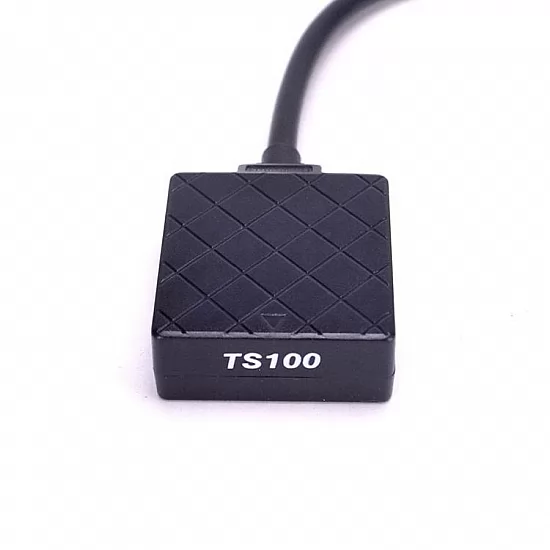

Radiolink TS100 Mini M8N GPS+ for Mini Pixhawk


Radiolink TS100 Mini GPS Module measures with 50 cm accuracy while working with GNSS simultaneously. Thanks to the PRC-lNA low loss circuit design, the ability to capture incredibly weak signals has been improved. The TS100 can simultaneously capture extremely weak signals while effectively suppressing input interference. Excellent performance Pre-LNA low-loss circuit design that precisely fits the ceramic antenna enhances its ability to capture extremely weak signals even though it interferes with the ideal filter. Optimized circuit layout ensure that the TS100 can pick up very weak signals while effectively suppressing input noise. Positioning accuracy of 50 centimeters, placing 20 satellites on 6 satellites in open area and valley station holding capability. Simultaneous reception of GPS / QZSS L1 C / A, GLONASS L10F, BeiDou B1 SBASL1 C / A: WAAS, EGNOS, MSAS Top configuration GPS decoder chip: U-blox UBX-M8030 (M8), Radiolink M8N GPS with 72 channels is much better than the single GNSS 7N. Geomagnetic: QMC5883L, which has the same technology as HMC5983 from Honeywell Antenna: 2.5dbI high gain and selectivity ceramic antenna Dual filter: SAWF (Surface acoustic wave filter) form Murata.




Radiolink TS100 Mini M8N GPS+ for Mini Pixhawk Technicial Specifications:

  • Small size
  • Maximum Speed: 515m/s
  • It has excellent performance.
  • Pilots can practice with Super Simple Modes while the TS100 works with the Radiolink mini flight controller MINI PIX.
  • The best choice for those new to drone racing.



Radiolink TS100 Mini M8N GPS for Mini Pixhawk Package Included:

  • 1 x Radiolink TS100 Mini M8N GPS Module

Similar Products:

22201
Radiolink TS100 Mini M8N GPS for Mini Pixhawk
Radiolink TS100 Mini M8N GPS for Mini Pixhawk
:
1,335.26 TL + VAT
:
1,602.31 TL
