Raspberry Pi AI Kit HAT Plus - 13T

Raspberry Pi AI Kit HAT Plus - 13T

The Raspberry Pi AI Kit bundles the Raspberry Pi HAT+ with a Hailo AI acceleration module for use with Raspberry Pi 5. It provides an accessible, cost-effective, and powerefficient way to integrate high-performance AI. Explore applications including process control, security, home automation, and robotics.

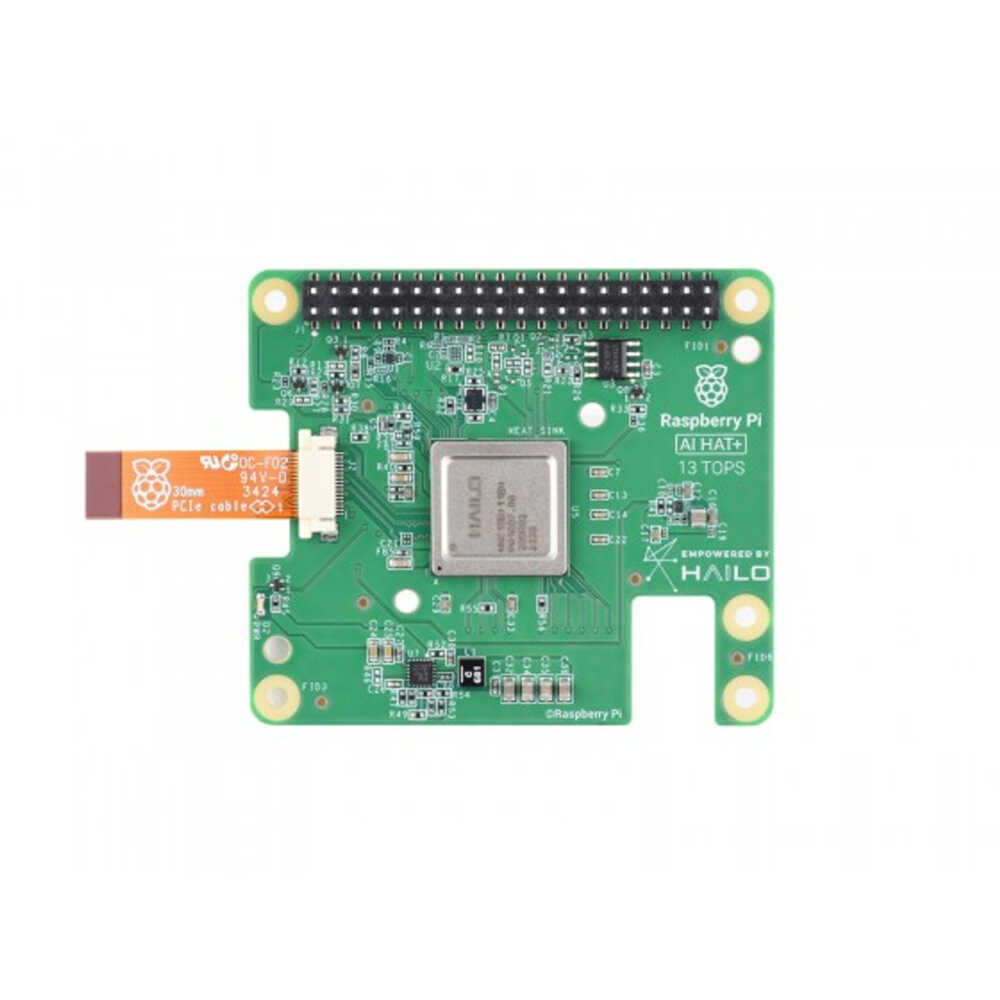

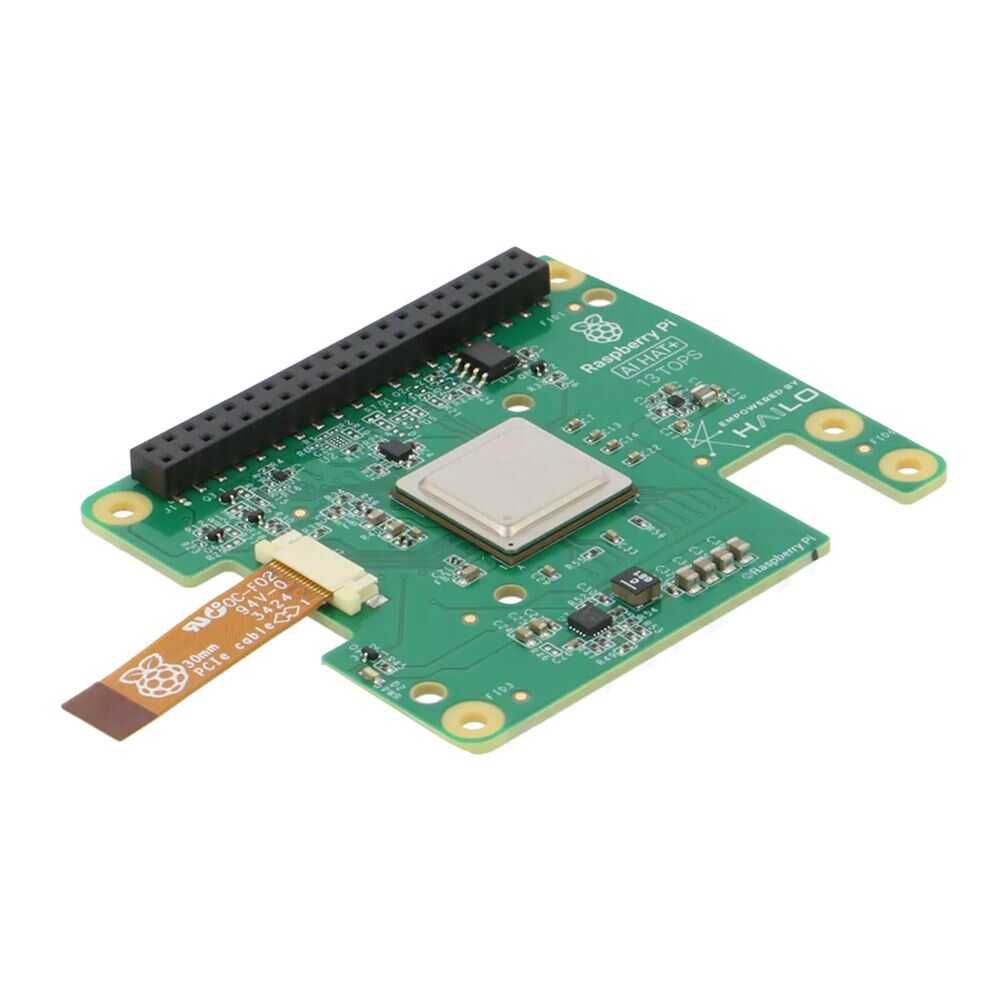

The AI module is a 13 tera-operations per second (TOPS) neural network inference accelerator built around the Hailo-8L chip. The module uses the 2242 form factor, and comes pre-installed in the HAT+, to which it connects through an M key edge connector. The HAT+ communicates between the AI module’s interface and the Raspberry Pi 5’s PCIe 2.0 interface. When the host Raspberry Pi 5 is running an up-to-date Raspberry Pi OS image, it automatically detects the Hailo module and makes the NPU available for AI computing tasks. The built-in rpicam-apps camera applications in Raspberry Pi OS natively support the AI module, automatically using the NPU to run compatible post-processing tasks.

Raspberry Pi AI Kit (HAT plus Hailo8L AI accelerator) Package includes:

• a Hailo AI module containing
• a Neural Processing Unit (NPU)
• a Raspberry Pi HAT+, to connect the AI module to your Raspberry Pi 5
• a thermal pad pre-fitted between the module and the HAT+
• a mounting hardware kit
• a 16mm stacking GPIO header

WARNINGS:

• The Hailo AI module shall only be connected to a Raspberry Pi HAT+ via the key interface.
• The Raspberry Pi HAT+ shall only be connected to a Raspberry Pi via the PCIe interface and GPIO header.
• This product should be operated in a well-ventilated environment, and if used inside a case, the case should not be covered.
• Whilst in use, this product should be firmly secured, and should not be contacted by conductive items.
• The connection of incompatible devices to the Raspberry Pi AI Kit may affect compliance, result in damage to the unit, and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met.
• The cables and connectors of all peripherals used with this product must have adequate insulation so that relevant safety requirements are met.
• Operation of this device requires adult supervision.

SAFETY INSTRUCTIONS:

To avoid malfunction or damage to this product, please observe the following:

• Do not expose to water or moisture, or place on a conductive surface whilst in operation.
• Do not expose to heat from any source; Raspberry Pi computers and the Raspberry Pi AI Kit are designed for reliable operation at normal ambient temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Whilst it is powered, avoid handling the printed circuit board, or only handle it by the corners to minimise the risk of electrostatic discharge damage.

Notes: Raspberry Pi uninclude.
