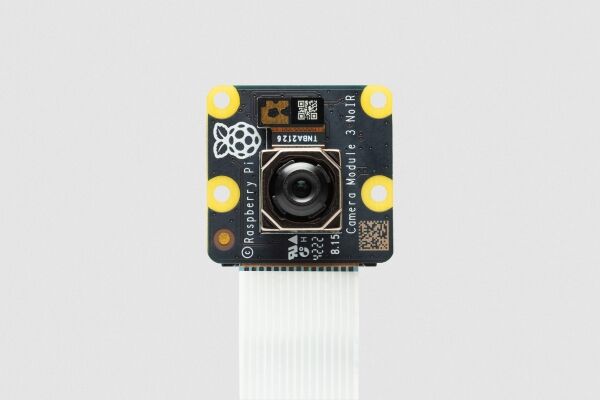

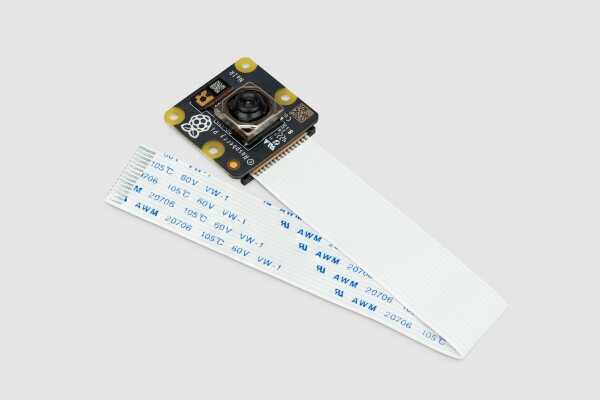

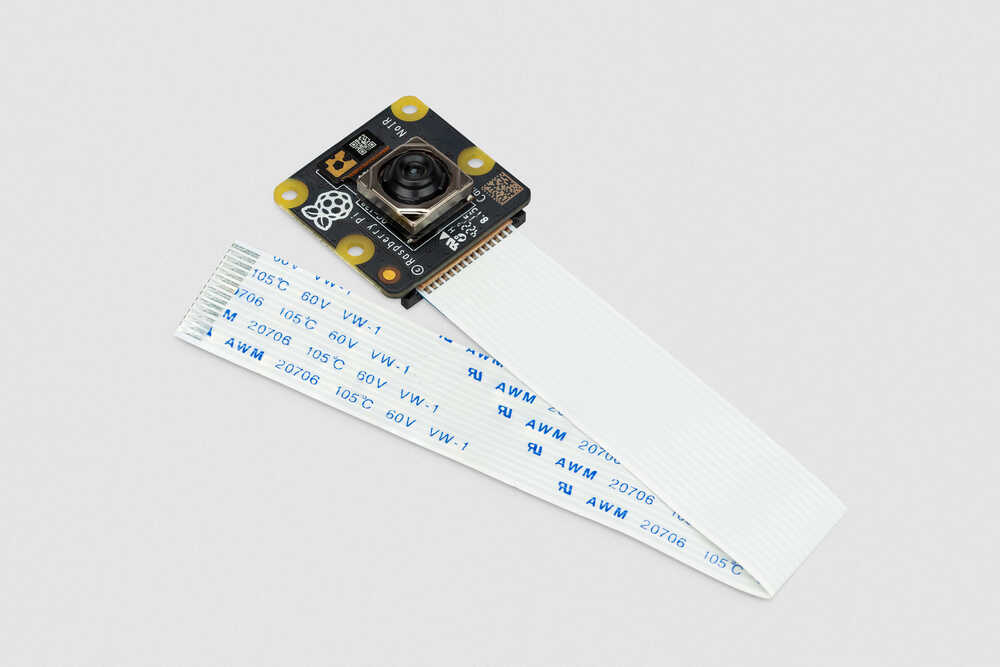

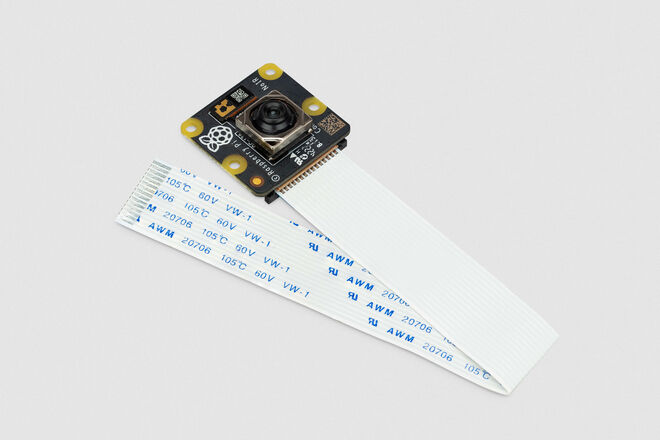

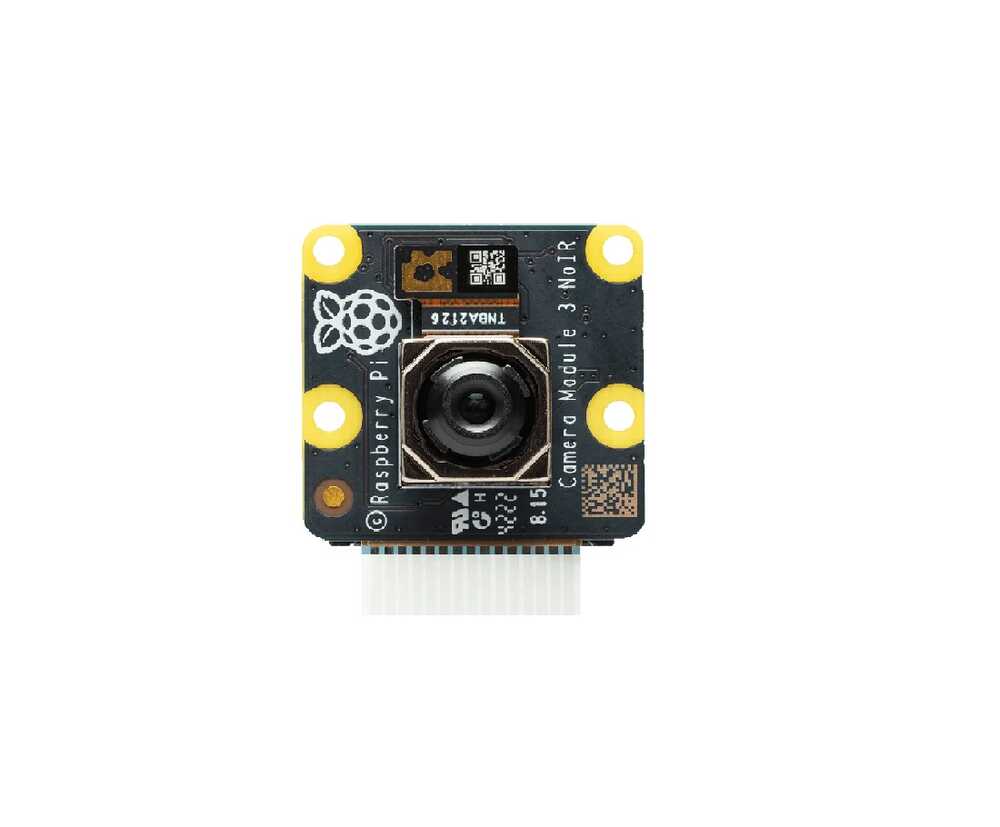

Raspberry Pi Camera 3 NoIR

Raspberry Pi Camera 3 NoIR



Introducing Raspberry Pi Camera 3 NoIR, the latest member of the Raspberry Pi camera series featuring the new 12 megapixel Sony IMX708 image sensor, enhanced low light sensitivity, autofocus and HDR support! It is sensitive to obtaining the NoIR version, but there is no Infrared (NoIR) filter on the lens. This makes it perfect for capturing stills/videos in low light environments. For night storage, you need to fill the target with a catch light. In addition, the module has 4608 x 2592 pixel images and 4608 x 2592 @14 FPS/2304x1296 @56 FPS/1536x864 @120FPS video holders. With HDR enabled, spreading speeds with 2304 x 1296 @ 30 FPS.

If you want to use it with Raspberry Pi 5, you can choose the Raspberry Pi Camera Cable Standard - Mini - 200mm product.

Raspberry Pi Camera 3 NoIR Compatible Accessories:



Raspberry Pi Camera 3 NoIR, sensor part mechanically same as previous version V2. However, the new sensor is larger and may not fit all camera models from the previous version.



Raspberry Pi Camera 3 NoIR Compatible Software:



Raspberry Pi Camera 3 NoIR can only be used with libcamera. You also need to update Raspberry Pi OS from a new driver and specific libcamera version.



Raspberry Pi Camera 3 NoIR Compatible Board Models:



Raspberry Pi Camera 3 NoIR is compatible with all Raspberry Pi Boards with camera strip (CSI Connector). Also, in order to use this camera with Raspberry Pi Zero, which has a smaller server, you need to use an adapter cable.



Raspberry Pi Camera 3 NoIR Technical Specifications:



• Image Sensor: Sony IMX708
• Megapixels: 12
• Resolution: 11.9 Megapixels
• High Signal to Display Ratio (SNR)
• Built-in 2D Dynamic Fine Pixel Correction (DPC)
• QBC Re-Mosaic Function
• HDR Mode (up to 3 megapixel output)
• CSI-2 Serial Data Output
• Phase Detection Auto Focus (PDAF) for Fast Auto Focus
• Common Video Modes: 1080p50, 720p100, 480p120
• Output: RAW10
• IR Cut Filter: Not Available
• 2-Wire Serial Communication (Supporting I2C Fast Mode and Fast Mode Plus)
• 2-Wire Series Control of Focus Mechanism
• Horizontal / Vertical: 4608 x 2592 pixels
• Auto Focus System: Phase Detection Auto Focus
• Cable Connector: 15 x 1 mm FPC
• Sensor Size: 7.4mm
• Pixel Length: 1.4 x 1.4 um
• Size: 25 x 24 x 11.5 mm

Raspberry Pi Camera 3 NoIR Lens Features:



• Standard:
  • Effective focal length 4.74mm
  • Aperture: 1.8
  • Diagonal field of view: 75 degrees (at 16:9)
  • 35mm close focal length roughly 28mm (full width) - 30mm (3:2 rotation)
  • Focus: 10cm - infinity
• Wide:
  • Effective focal length 2.75mm
  • Aperture: 2.2
  • Diagonal Field of View: 120 degrees (at 16:9)
  • 35mm focal length roughly 16mm (full width) - 18mm (3:2 spread)
  • Focus: 5cm - infinity

Raspberry Pi Camera 3 NoIR Compatibility:



• FCC 47 CFR Part 15, Subpart B, Class B Digital Device
• Electromagnetic Compatibility Directive (EMC) 2014/30/EU
• Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
