Raspberry Pi Touch Display 2

Raspberry Pi Touch Display 2

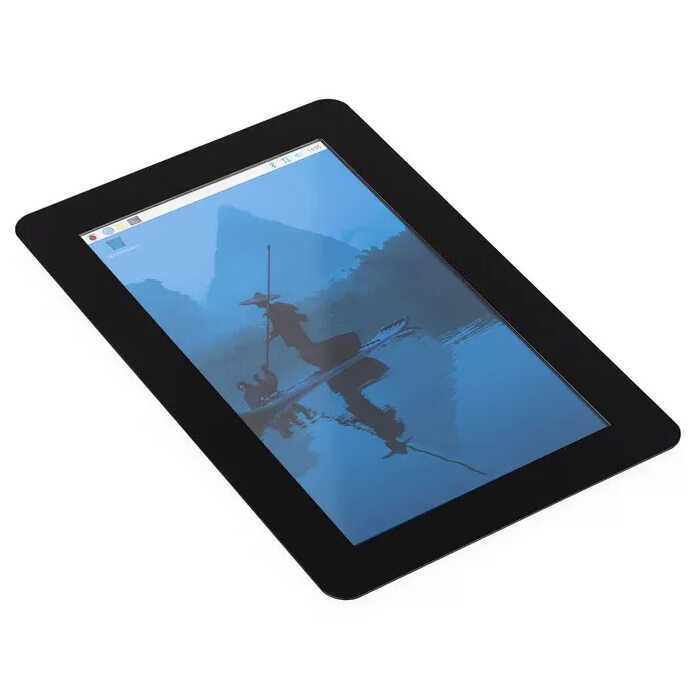

The Raspberry Pi Touch Display 2 is a 7-inch touchscreen with a resolution of 720x1280 designed for Raspberry Pi. It is ideal as a compact monitor for the Raspberry Pi OS desktop or for interactive projects like entertainment systems, home automation, and information panels. Raspberry Pi OS provides full functionality by offering five-finger capacitive touch support and an on-screen keyboard, eliminating the need to connect an external keyboard or mouse.

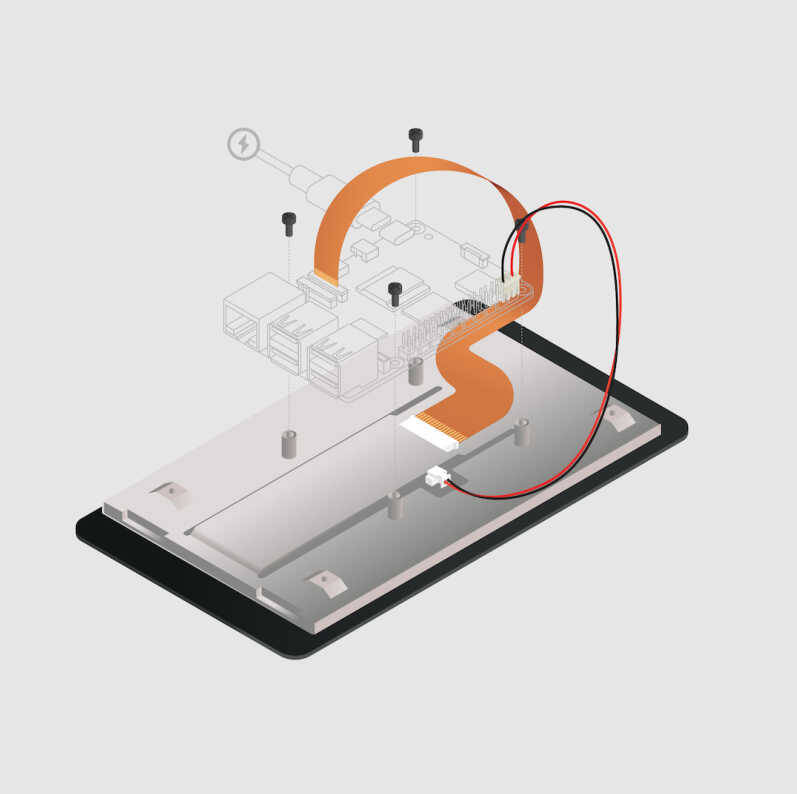

Connecting the display to the Raspberry Pi requires just two connections: power from the GPIO port and a ribbon cable that connects to the DSI port. The Raspberry Pi provides enough power to run the display, so no separate power supply is required.

Raspberry Pi Touch Display 2 Technical Specifications:

• Mounting: Mounting points on the back of the display (screws included)
• Dimensions: 189.32mm x 120.24mm
• Display Size: 7 inches
• Display Resolution: 720x1280 pixels (in portrait mode, can also be used in landscape mode via software)
• Active Area: 88mm x 155mm
• LCD Type: TFT, normally white, transmissive
• Color Configuration: RGB-strip
• Backlight Type: LED B/L (Backlight)

• Connections:

• DSI Connector: Compatible with all Raspberry Pi boards (except Raspberry Pi Zero and Pi 400 series)

• Connections: Power from GPIO port and ribbon cable connected to the DSI port
• Power Supply: The Raspberry Pi provides enough power to drive the display (no separate power supply needed)
• Touch Features:
• Five-finger capacitive touch support
• True multi-touch support
• Anti-glare surface coating
• Compatible Models: All Raspberry Pi models from Raspberry Pi 1B+ onwards (except Raspberry Pi Zero and Zero 2 W)

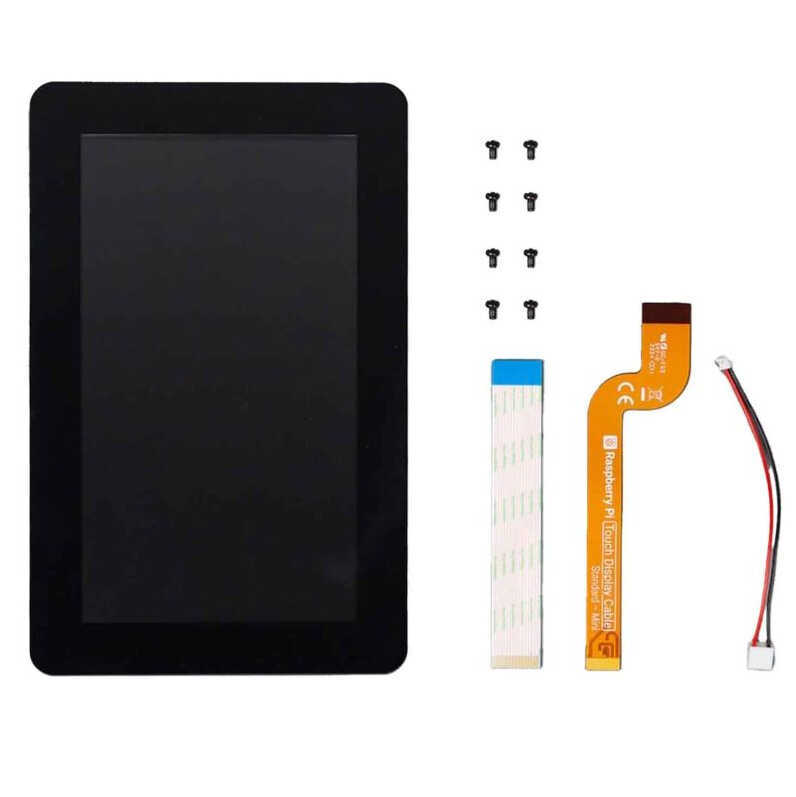

• Package Contents:

• 1 x Raspberry Pi 7" Touch Display 2
• 8 x M2.5 screws
• 15-pin-15-pin FFC (Flexible Flat Cable)
• 22-pin-15-pin FFC for Raspberry Pi 5
• GPIO connector cable
