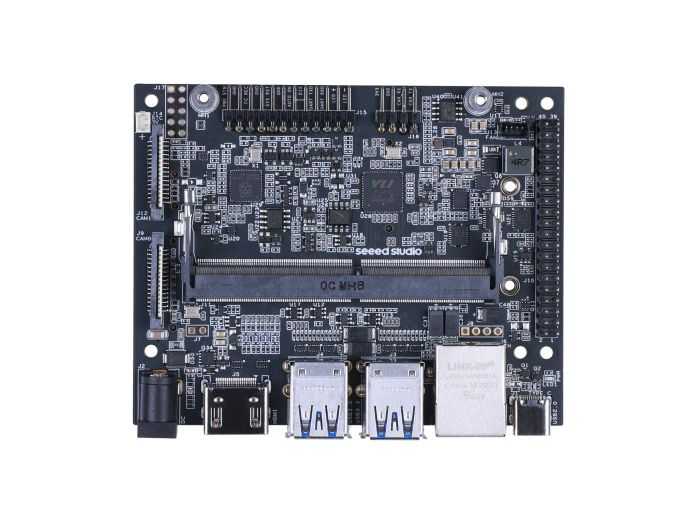

reComputer J401 - Carrier Board for Jetson Orin NX-Orin Nano

reComputer J401 -Carrier Board for Jetson Orin NX/Orin Nano

The reComputer J401 -Carrier Board for Jetson Orin NX/Orin Nano provides outstanding performance by supporting its module and is a model designed to handle demanding edge computing tasks with ease. It is used to develop industrial automation systems, create powerful artificial intelligence applications or for further applications. It features network connectivity equipped with a gigabit ethernet port for fast networking. Additionally, there are multiple peripherals supported on the board. With two 15-pin CSI camera connectors and an HDMI 2.1 port, it can enable users to capture and view high-quality video content. The board includes a Fan connector for cooling and an RTC socket for reliable timekeeping. The board is a wide range of 9~19V DC. It supports input range, making it flexible to integrate into various computing tasks. It continues to work in the temperature range of -10°C ~ 60°C.

reComputer J401 - Carrier Board for Jetson Orin NX/Orin Nano Technical Specifications:

• Power: 9~19V
• Display: HDMI 2.1
• Networking: Gigabit Ethernet:
  • 10
  • 100
  • 1000M
• USB:
  • USB 3.2 Type-A (10 Gbps)
  • USB2.0 Type-C
• Fan: 4-Pin Fan Connector (5V PWM)
• Multi-Function Port:
  • 40 Pin Expansion Head
  • 12 Pin Control and UART Header
• RTC:
  • RTC 2 Pin
  • RTC Socket
• Operating Temperature: - 10°C ~ 60°C
• Size: 100 x 80 mm

Similar Products:

• 205 Carrier Board for Jetson Nano Xavier NX
• NVIDIA Jetson Orin Nano Developer Kit


Useful Links / Documents:

• reComputer J401 Datasheet
