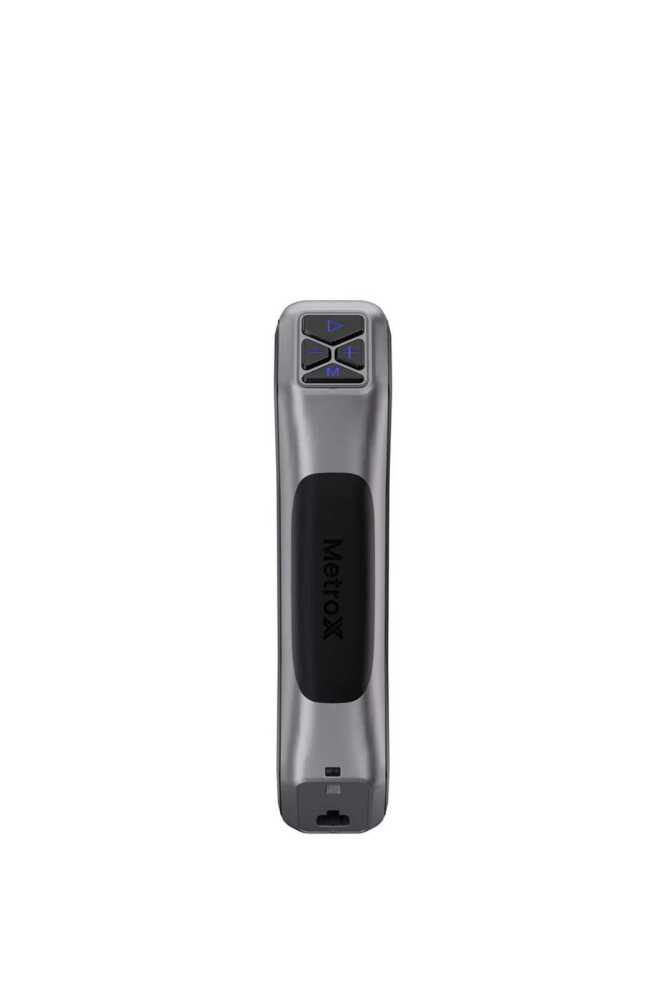

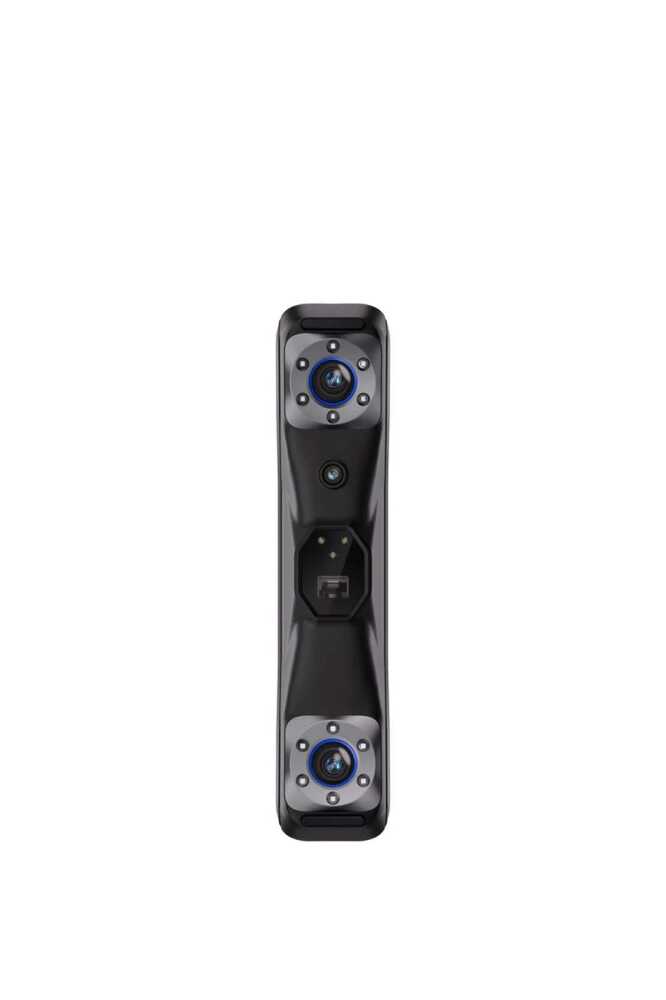

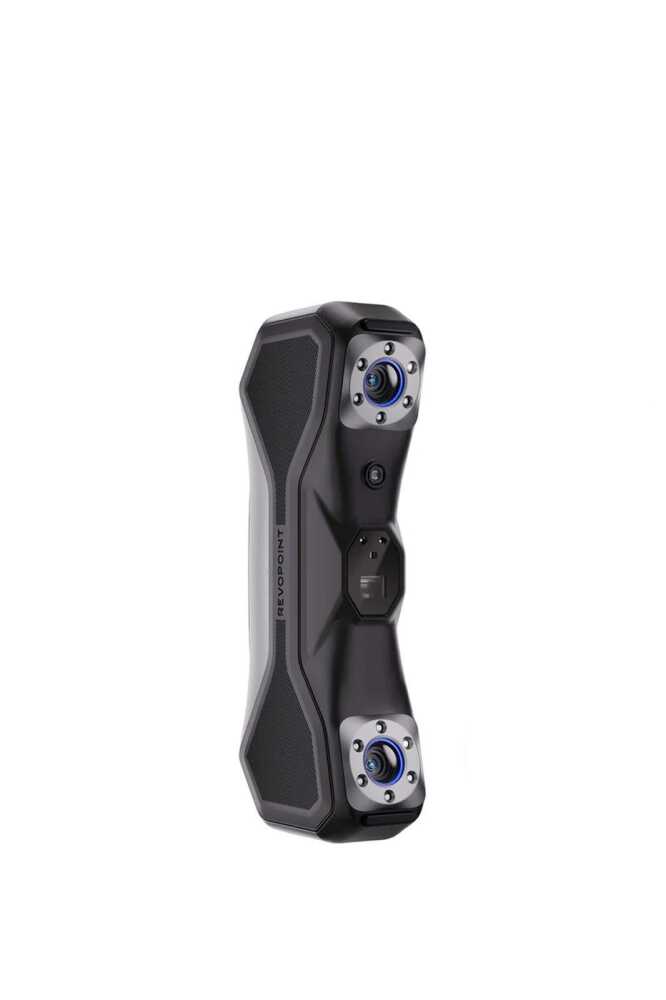

Revopoint MetroX Standart Edition
The Revopoint MetroX Standard Edition is a professional laser scanner designed for high-precision 3D scanning. It creates detailed and accurate digital models using 14 cross blue lasers, structured light technology, and an HD RGB camera. With support for an automatic turntable and an easy-to-use interface, it offers an effective solution for industrial measurement, reverse engineering, and 3D modeling projects.
Revopoint MetroX Standart Edition Product Information:
- With GPU-accelerated* 14 cross blue laser lines, MetroX captures up to 800,000 points per second, quickly scanning flat, featureless areas on bright or black surfaces of machines and objects without the need for scanning spray.
- GPU Compatibility: Currently, only NVIDIA RTX 30 and 40 Series GPUs are supported (Windows only).
- It uses 7 high-power parallel blue laser lines to accurately capture every detail, edge, and complex surface, enhancing the clarity of your 3D models.
- Fully automate the scanning process and create metrology-grade models every time. Simply click once, and the Dual-axis Turntable, Revo Scan, and MetroX work together to complete the scan.
- With 62 powerful structured blue light lines, capture up to 7 million points per second, efficiently scan detailed and featureless objects, and generate point clouds in seconds.
- The high-precision calibration card ensures that MetroX always maintains its accuracy and precision.
- Using MetroX’s HD RGB camera, capture realistic and color-accurate scans in Auto Turntable mode, reproducing vivid colors faithfully.
Revopoint MetroX Standart Edition Technical Specifications:
- Ready-to-Print 3D Models: Yes
- Farthest Single Scan Area: 320 x 215 mm at 400 mm distance
- Supported Accessories: Dual-axis Turntable, Marker Block Kit
- Volumetric Accuracy: 0.03 mm + 0.1 mm × L (m) (L = Object Length)
- Maximum Point Distance (Merged): 0.05 mm
- Technology: Multi-line Laser Scanning and Full-area Structured Light Scanning
- Connection Type: USB Type-C
- Power Requirements: DC 12V, 3A
- Processor: 4-core ARM, 2.0 GHz
- User Recalibration: Yes
- Output File Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
- Compatible Operating Systems: Windows 10/11 (64-bit), macOS 11.0 or later
- Single Frame Precision: Up to 0.01 mm
- Dimensions (L x W x H): 209 × 88 × 44 mm
- Depth Camera Resolution (Max): 2 Megapixels
- Color Scanning: Only in Auto Turntable Mode
- Fill Lights: 12 Blue LEDs
- Onboard Chip Processing: Depth Map Calculation
- Single Frame Accuracy: Up to 0.03 mm
- Minimum Scan Volume: 10 x 10 x 10 mm
- Maximum Scan Volume: 1 x 1 x 1 m
- RGB Camera Resolution: 2 Megapixels
- Scan Type: Handheld and Desktop
- Outdoor Scanning: Not Supported
- Working Distance: 200–400 mm
- Tracking Method: Feature, Marker, Global Marker
- Angular Field of View (H x V): 43 × 33°
- Buttons: 4
- Scannable Object Size: Small to Medium
- Special Object Scanning: When scanning transparent, black, shiny, or highly reflective surfaces in Multi-line Laser and Full-area Structured Light modes, using scanning spray is recommended.
- Nearest Single Scan Area: 160 x 70 mm at 200 mm distance
- 3D Light Source: 14 Blue Cross Laser Lines, 7 Blue Parallel Laser Lines, 62-Line Blue Full-area Structured Light
- Maximum Scanning Speed: Multi-line Blue Laser: 800,000 points/sec, Full-area Blue Light: 7,000,000 points/sec
- Minimum PC Requirements: macOS: M1 Pro/Max/Ultra, RAM ≥ 16 GB, Windows: Intel i7 10th Gen 10700 or AMD Ryzen 7 5800, RAM ≥ 32 GB, Optional GPU: NVIDIA GeForce RTX 3050 (8 GB)

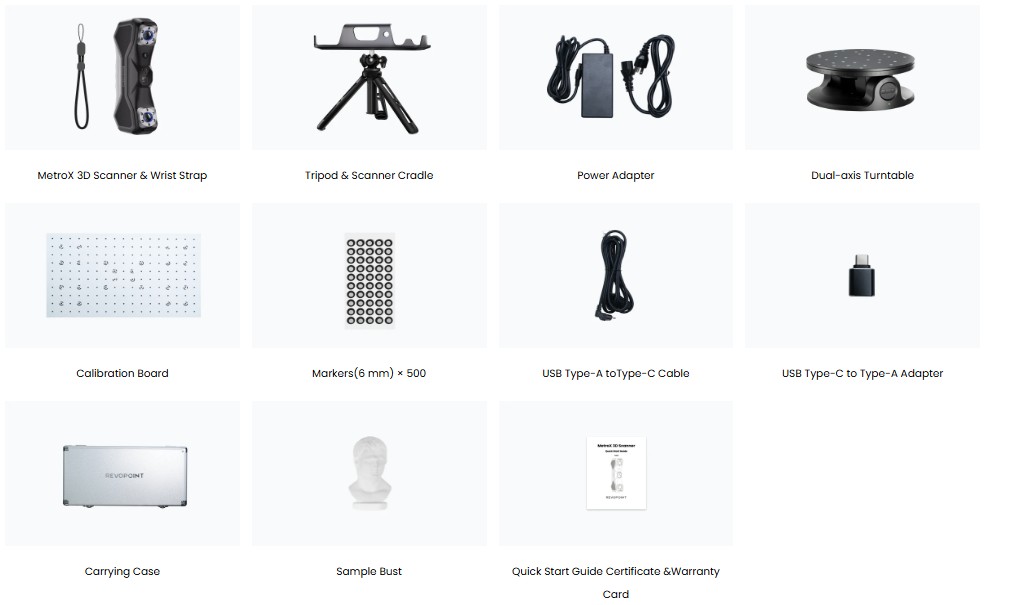

Revopoint MetroX Standart Edition Package Contents:
