Revopoint Miraco Standalone 3D Scanner





MIRACO

Meet Revopoints' first standalone 3D scanner MIRACO. It's ready to support all your professional scanning needs. Whether you want to capture small or large objects, the four Depth Camera system can handle everything.
Differences between MIRACO and MIRACO Pro



Go Big, Go Small

MIRACO can capture objects large and small with its advanced quad Depth Camera infrared light system so you never have to switch scanners again. You can even switch modes mid-scan to capture intricate details or shape data.

Surgical Accuracy
Switch between capturing the smallest details with up to 0.05mm accuracy or quickly capturing large surface areas with up to 0.5mm accuracy.

Two Shooting Modes

• Single Shot Mode: Don't worry about tracking or dealing with color-contrasted surfaces with MIRACO's Single Shot mode, which makes it very easy to capture feature-rich or featureless objects with precise tracking, high accuracy, and minimal point cloud overlap. .

• Continuous Mode: When you want fast 3D models, Continuous mode provides smooth pacing at scanning speeds of up to 15 fps for scanning in Near and Far mode.
Dazzling Color

Create textured color 3D models that will WOW you with MIRACO's 48-megapixel RGB Camera in Single-shot mode to avoid motion blur errors or Continuous mode for faster color model creation.

No Cables, No PC Required

Go anywhere and scan anything with the world's lightest (750g) standalone 3D scanner without worrying about carrying a laptop or dealing with cables. Seamlessly switch between turntable scanning or steady two-handed handheld scanning for optimal hand-eye coordination.

The Center of Power is in Your Hands

Capture and process scans quickly with MIRACO's powerful 8-core 2.8 GHz processor, 16 GB RAM (up to 5,000 captured frames) or 32 GB (up to 10,000 captured frames) and 256 GB hard disk. The main difference between the 16 GB and 32 GB versions is the number of raster frames they propose to process. Generally, as the amount of raw data increases, more memory is required for scanning, merging, and mapping operations.

Durable Design

MIRACO's IP45 specification and environmental operating temperatures ranging from -10°C to 40°C mean it is safe to use in most environments.

Your Scanning Portal

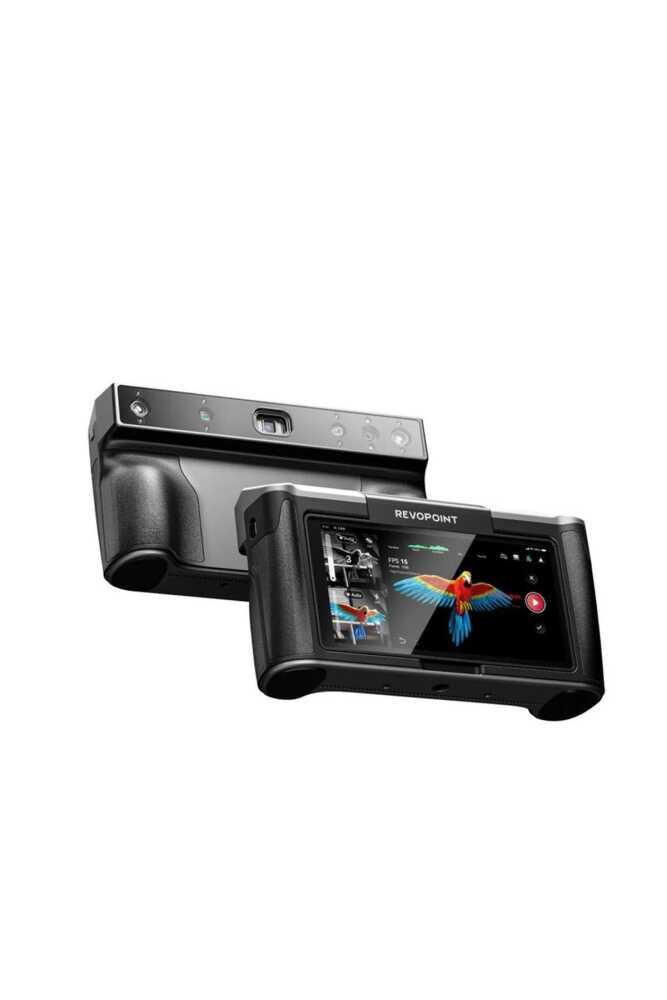

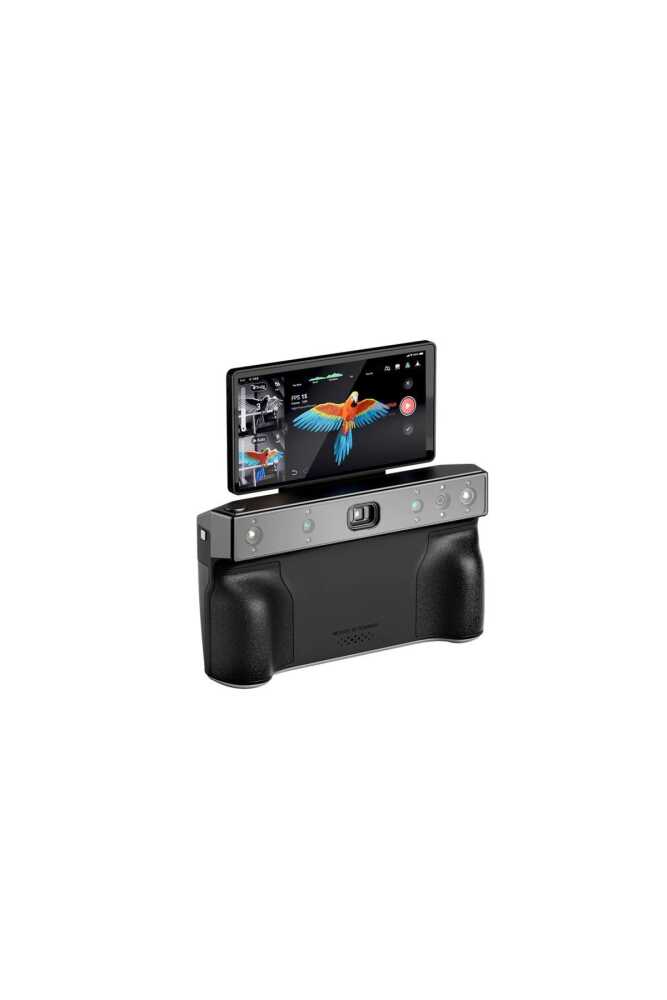

See your scans take shape crystal clear on MIRACO's 6" 2k backlit AMOLED touchscreen. Adjust the screen angle up to 180° for easy viewing from any angle. The screen can even be flipped up for selfie scans.

Long Scans, Fast Charging

Take your time with up to 2 hours of scanning provided by MIRACO's energy-efficient hardware and 5,000 mAh battery. And with 50W fast charging, you can charge MIRACO up to 80% in just 35 minutes.

Powerful Built-in Software

MIRACO comes with its own proprietary scanning software with an intuitive user interface that makes it easy to capture and post-process your model. Perform fusion, meshing, and editing on the go to check model quality without transferring your project to a PC. Export your scans as STL, PLY and OBJ for compatibility with most 3D modeling software.

Connect MIRACO to TVs or monitors via a USB-Type C to HDMI adapter or a DP port for convenient widescreen scanning or to conveniently view scanned models in HD for easy control or presentations.

Simple Project Transfers

Don't worry about cumbersome file transfers thanks to MIRACO's lightning-fast Wi-Fi 6, which easily connects to computers for convenient file transfer, or connect it to your computer via a USB-C 3.1 connection.

User-Friendly Tracking

Experience precise frame compositing and fewer errors caused by fast movement or unbalanced hands with MIRACO's 9-axis IMU and smart algorithms. And when combined with the Magic Mat (a mat covered with pre-positioned markers), scanning smaller or narrow featureless objects no longer requires placing markers on them.

Professional results for professionals

• Aviation: Evaluate and repair aircraft without sacrificing time for accuracy, using MIRACO's rapid scans to check for signs of wear and fatigue during inspections or to create replacement parts.

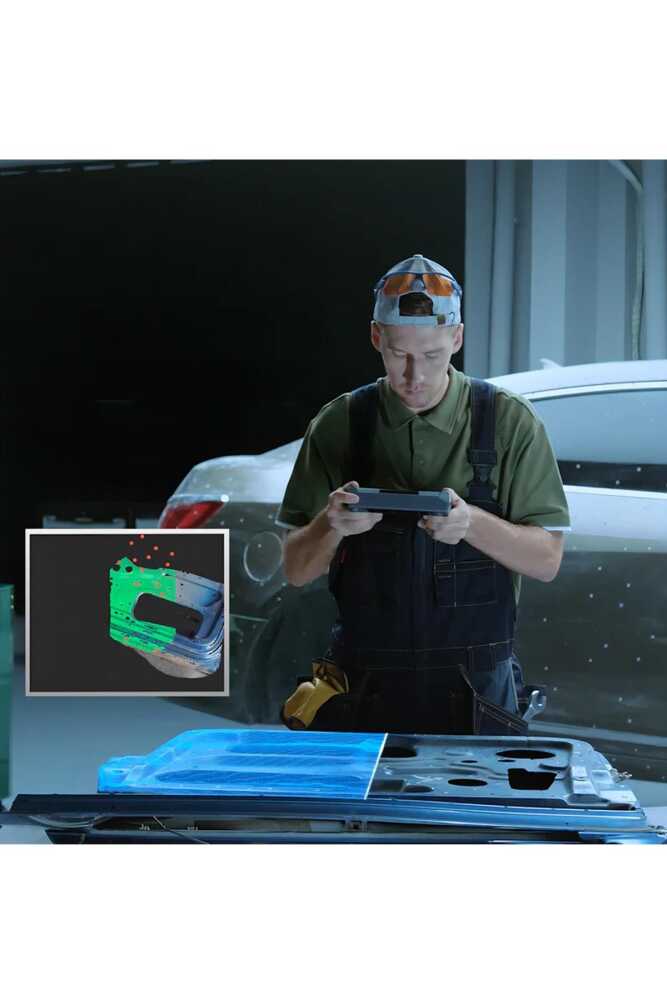

• Automobiles: MIRACO can capture every part, from the entire vehicle to body panels or carburetors, without the need for time-consuming manual measurements for repair, remanufacturing, prototyping or quality control.

• 3D Animation: Capture full body scans or highly detailed facial scans in less than 60 seconds using MIRACO's small or large capture modes for rapid conversion to fully animated 3D models in game engines.

• Preservation: Digitize historical items with photorealistic color detail for conservation or restoration without direct contact, preventing damage that can occur from traditional measurement methods.

• Education and Research: Whether digging up dinosaurs or
