Seeeduino XIAO

How would you like to meet the Seeeduino XIAO, which shows a great performance for its small size! Seeeduino XIAO is a low-power Arduino micro-controller, carrying the powerful CPU-ARM® Cortex®-M0 + (SAMD21G18), on the other hand, it is a microcontroller designed in a small size that has good performance but needs less power.

Specification:

  • CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
  • Storage: 256KB Flash,32KB SRAM
  • I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin
  • Interface: 1 I2C interface,1 UART interface, 1 SPI interface
  • Power supply and downloading interface: USB Type-C interface
  • LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading
  • Reset button: two reset button short connect to reset
  • Power Pads: For the battery power supply
  • Software compatibility: Compatible with Arduino IDE
  • Projection cover for protecting the circuit

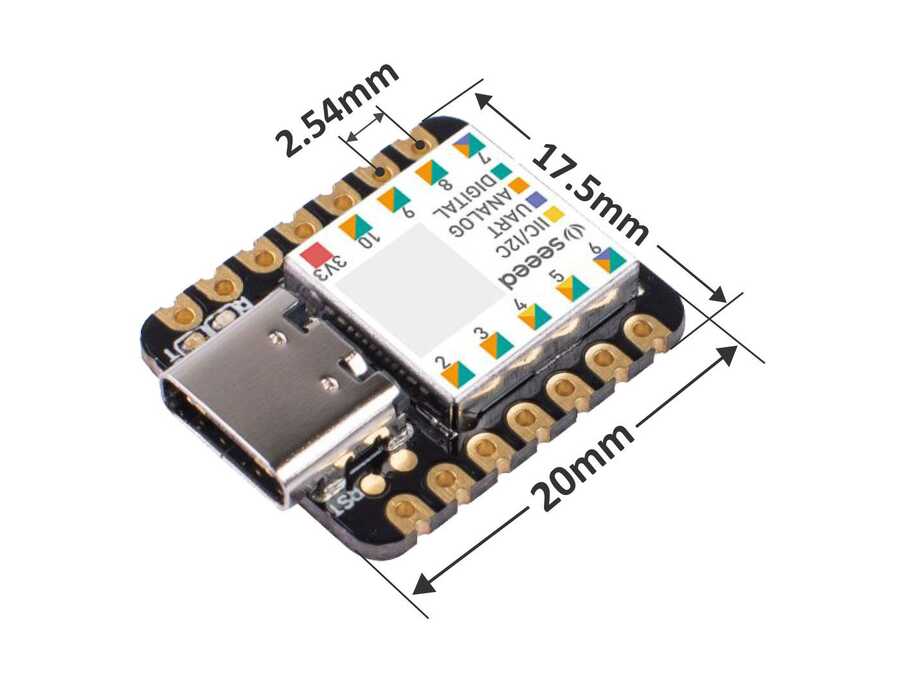

  • Dimensions: 20x17.5x3.5 mm





Part List:

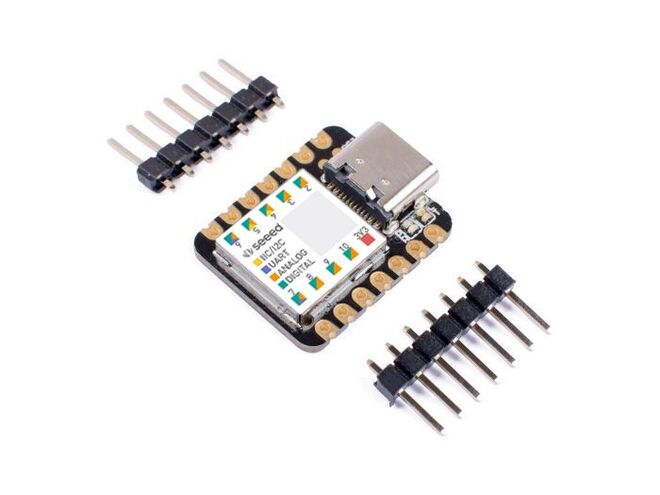

  • 1 x Seeeduino XIAO - Arduino Micro-controller- SAMD21 Cortex M0 +
  • 2 x 7pins header
  • 4 x pasters




Documents:

19150
Seeeduino XIAO
Seeeduino XIAO
:
238.65 TL + VAT
:
286.38 TL
