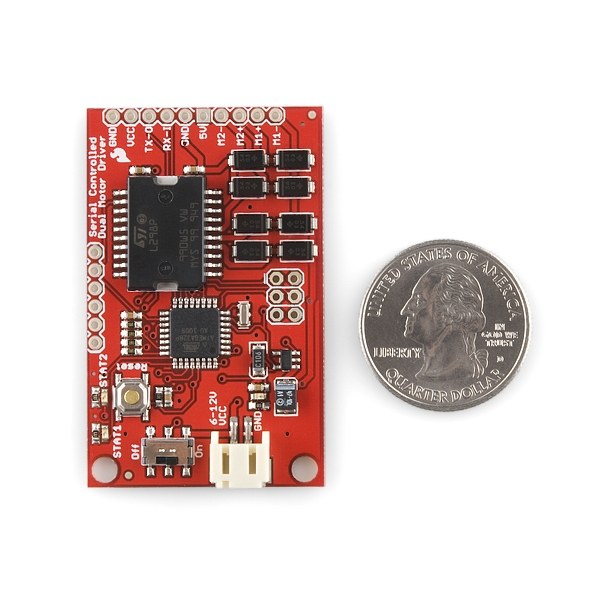

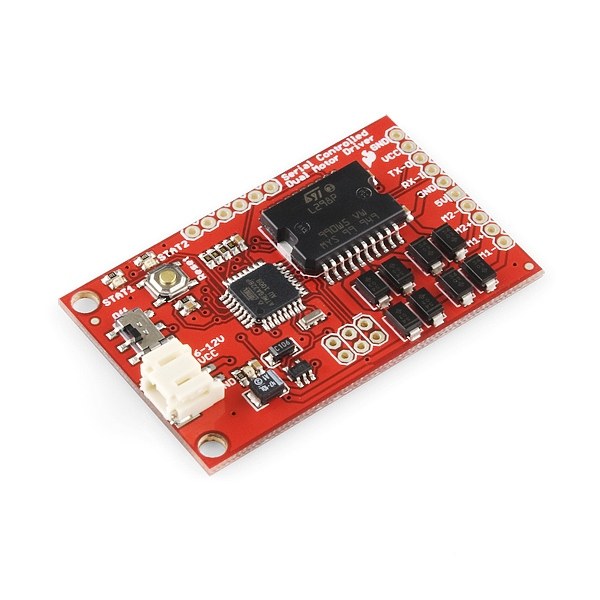

Using this board, you can control 2 DC motors via seri port(UART). Speed and direction of motor can be controlled. L298 pair motor driver IC is available on the board. Board draws 2A current for each channel.
Board can be supplied with 2-pin JST connectors or GND and VCC pins. Supply voltage must be between 5-16V. 5V pin must be used only for output
Commands ocur from 4 character: motor number, direction number, direction information, speed information and carriage return. Virtual baud rate is 115200bps (8-N-1).
Features:
- Dual motors can be controlled via UART
- 115200bps (8-N-1) baud rate
- Provides 2A for each motor (4A totally)
- Speed Control
- Direction Control
- Over currnet detection, LEDs for over current situation
- Unused ATmega328 pins are set as output.

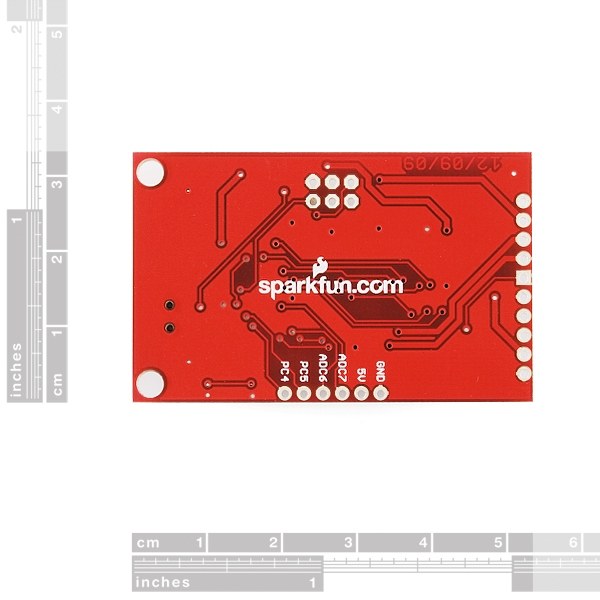

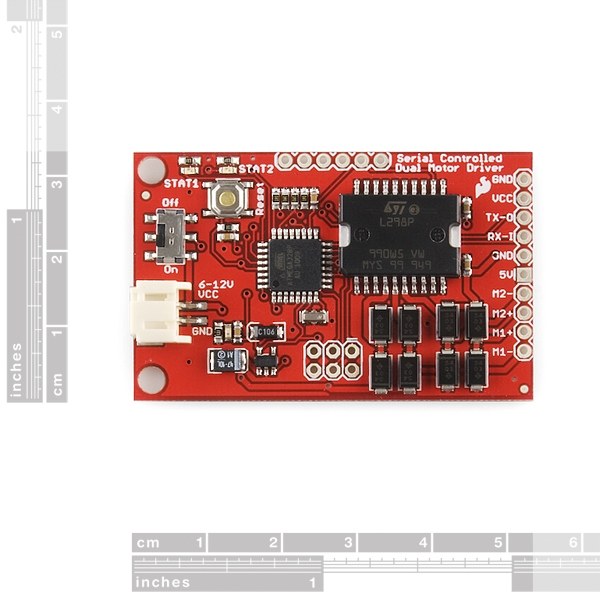

- Dimensions: 53.34 x 33.02 mm
