Brand
:
Sparkfun
Product Code
:
15151
SIGN IN
Cart
Out Of Stock

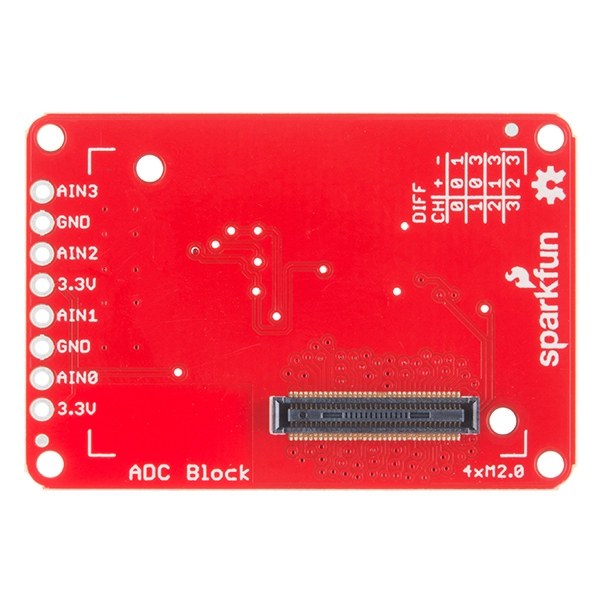

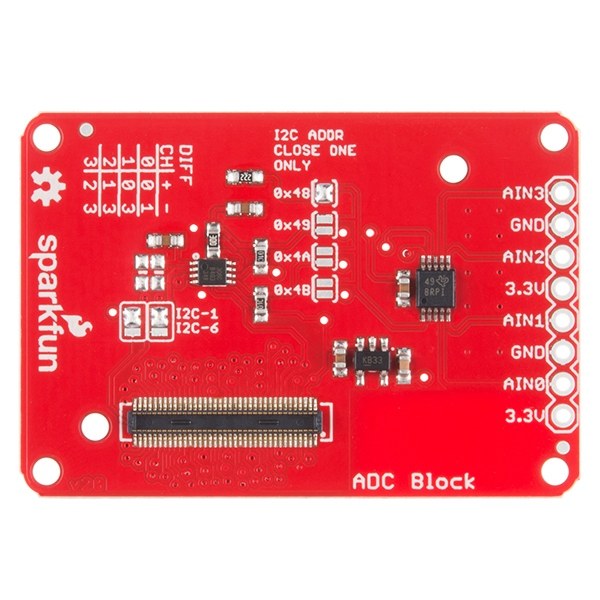

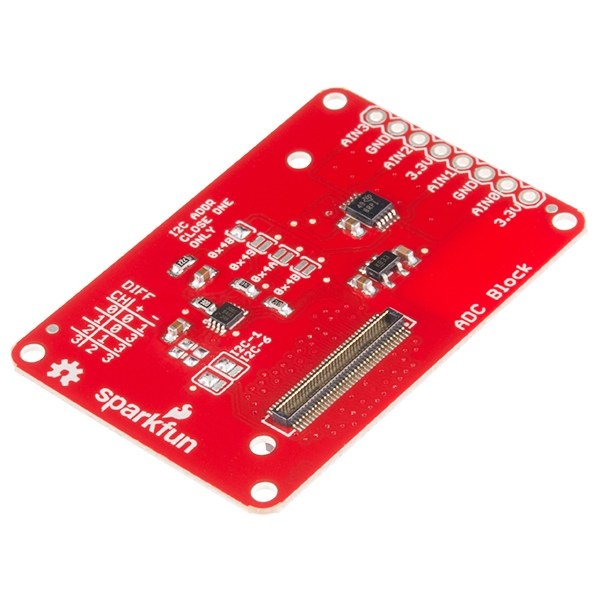

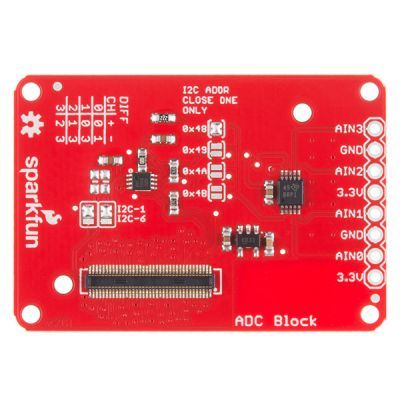

Notify me when its in stockThis Block ads ADC functionality to the Edison’s I2C . The ADS1015 ADC from TI provides a single 12-bit delta-sigma convertor with an analog multiplexer. It can be configured as a four-channel single-ended device or as a two-channel differential device.

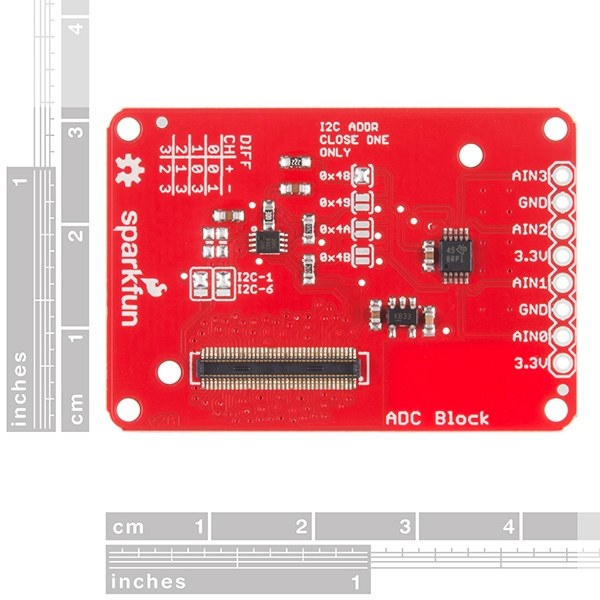

The ADC Block has jumpers to allow selection of the I2C slave address among four different options, allowing up to four of these cards to be stacked under one Edison. The board has a 3.3V referance voltage output on it.
