SparkFun Block for Intel® Edison - Console

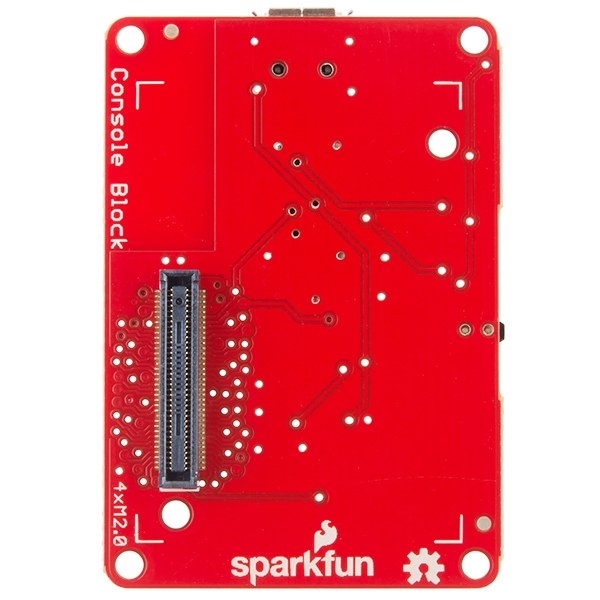

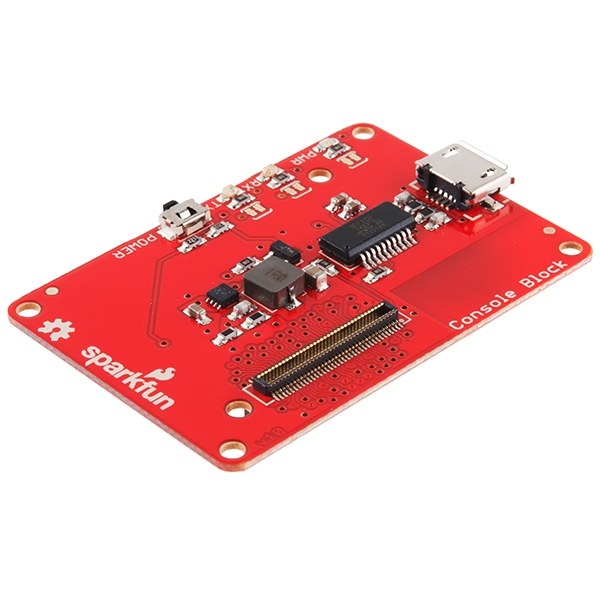

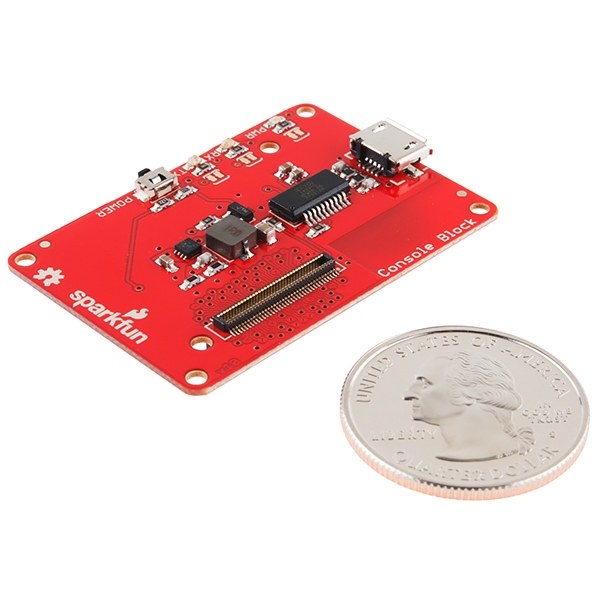

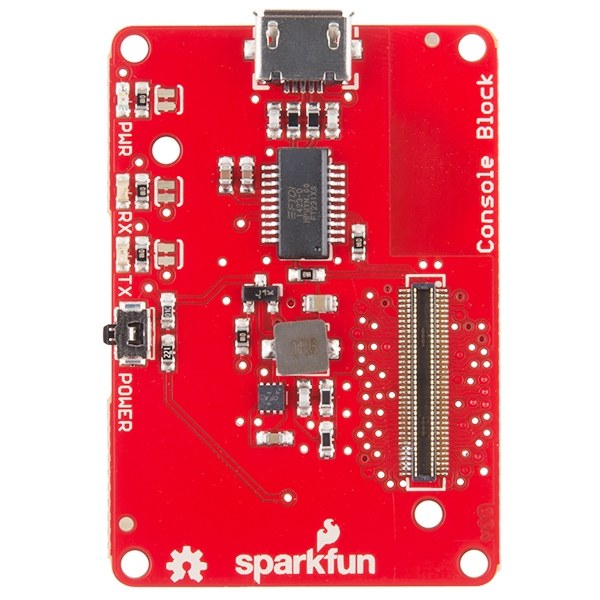

The Console Block is one of the simplest ways to supply power over USB and communicate with an Intel® Edison. This is a minimal solution to get started using the Intel® Edison. This board can supply 4V and up to 1.5A of current to the Edisons' VSYS line and any other expansion boards you may add to your stack. Utilizing the FTDI 231X, this creates a USB to serial bridge.Also RX and TX lines are supplied as a 1.8V by logic level converter for the Edison.

• Schematic
• EAGLE Files
• Hookup Guide
• Intel Edison Tutorials
• GitHub Page
