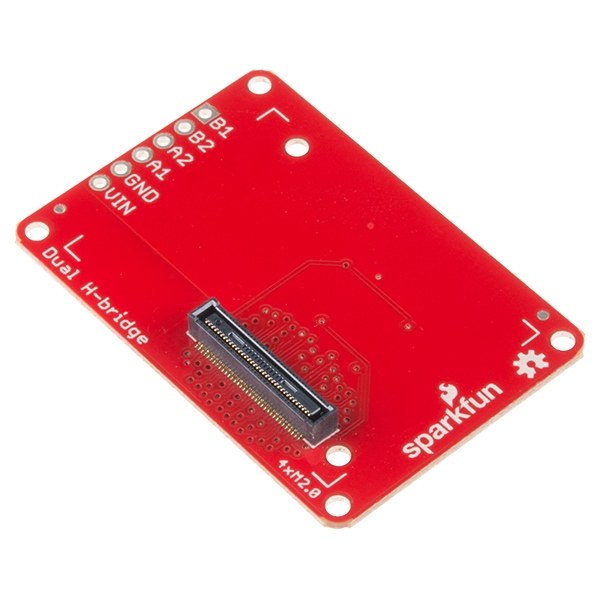

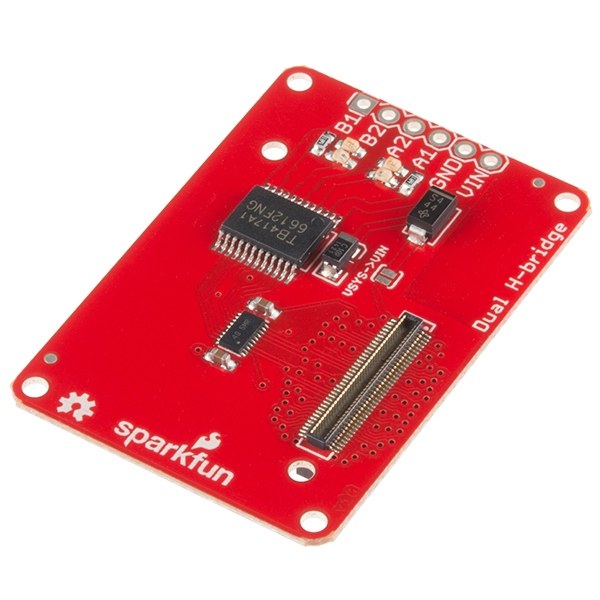

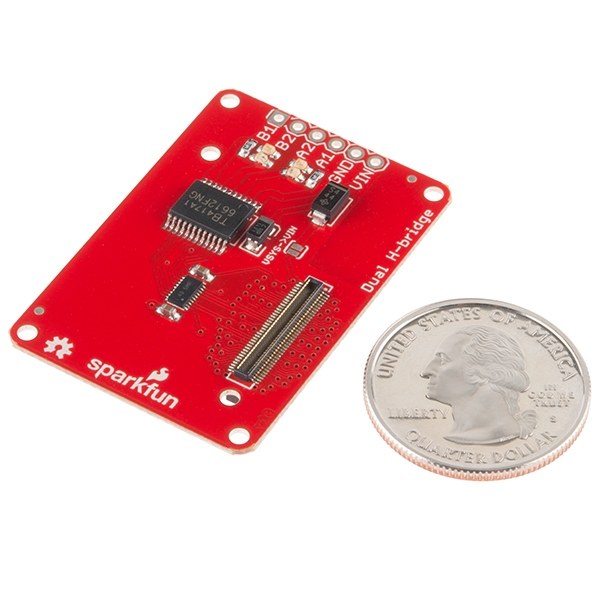

SparkFun Block for Intel® Edison - Dual H-Bridge

The Dual H-bridge Block is a 2 channeled H-bridge module that gives the Edison ability to move when it paired with DC motors. This board can drive your DC motors at voltages ranging from 2.7V-15V and currents up to 1amp. This board is isolated by the Edison using a logic level converter. Through this isolation, signals are prevented from parasites. Power for the motors is supplied on the headers labeled “VIN” and “GND”.

• Schematic
• EAGLE Files
• Hookup Guide
• Intel Edison Tutorials
• GitHub Page
