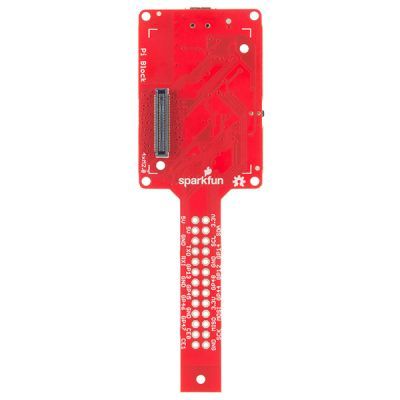

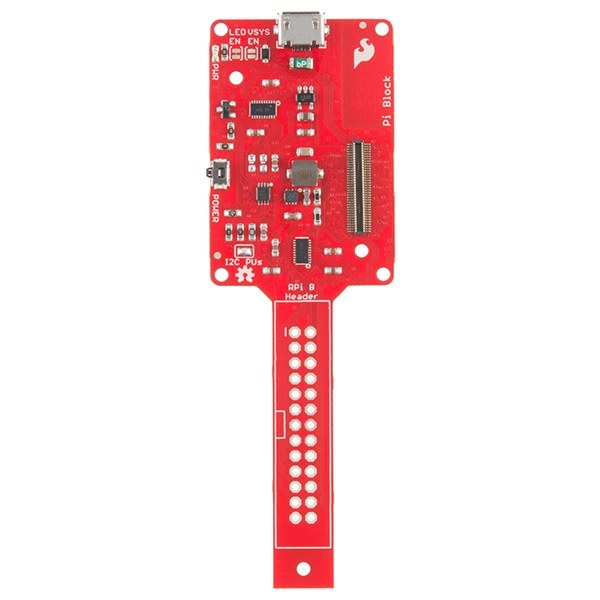

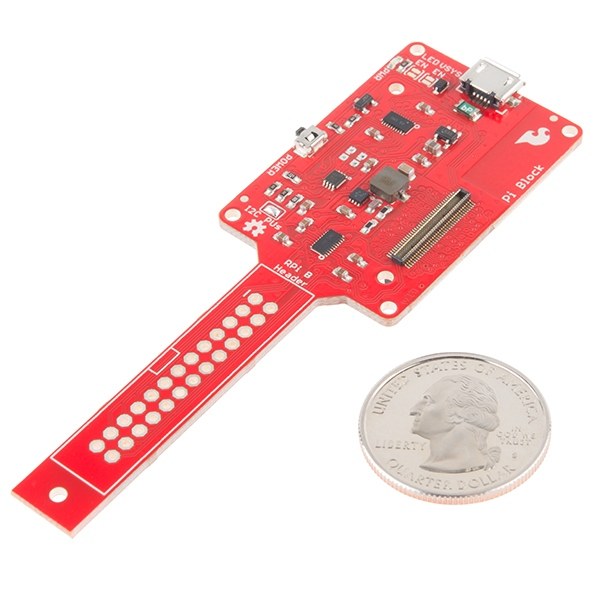

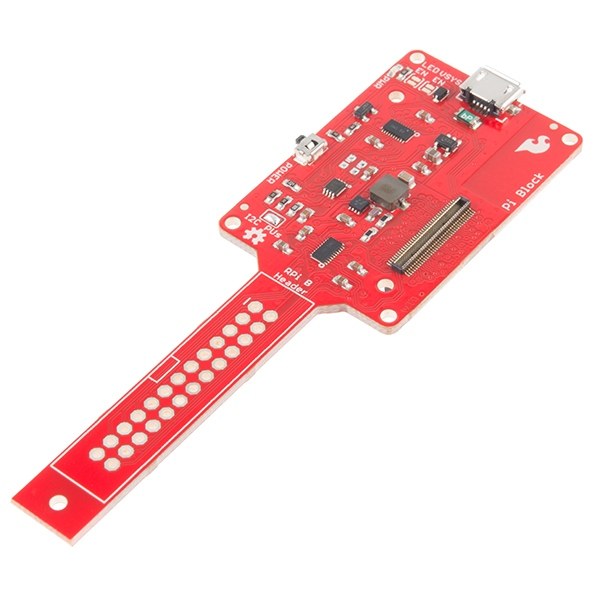

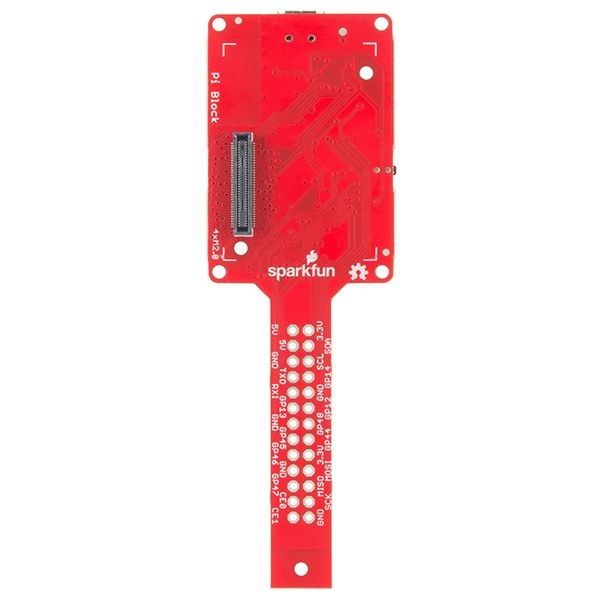

SparkFun Block for Intel® Edison - Raspberry Pi B

Intel Edison Board offers you a large number of GPIO and communication bus pins, these pins can be mapped to the exact same footprint as the Raspberry Pi B’s GPIO header. The Pi Block let you use your existing Raspberry Pi B peripherals and expansion boards with your Edison. Also it has basic GPIO, PWM, UART, I2C, and SPI connections that provided by logic level converter on it.

• Schematic
• EAGLE Files
• Hookup Guide
• GitHub Page
