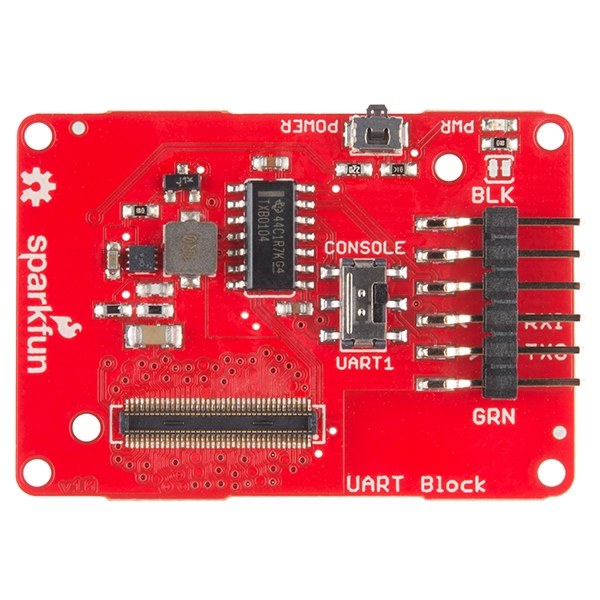

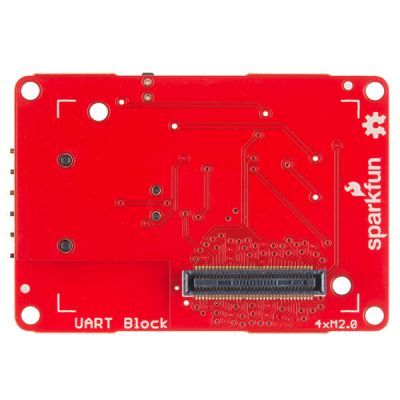

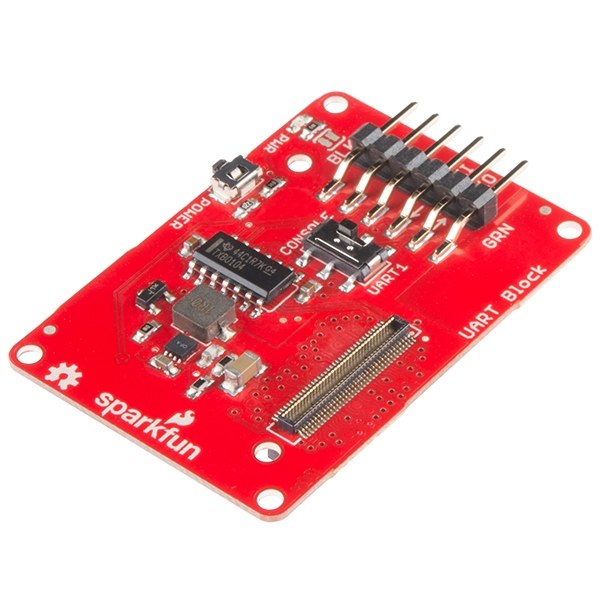

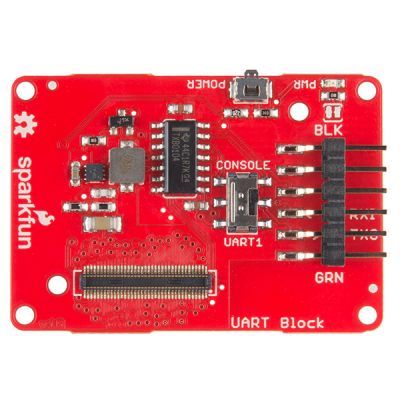

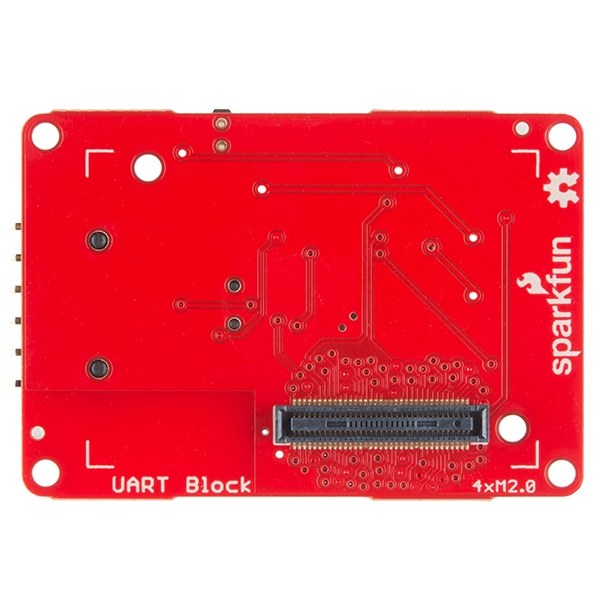

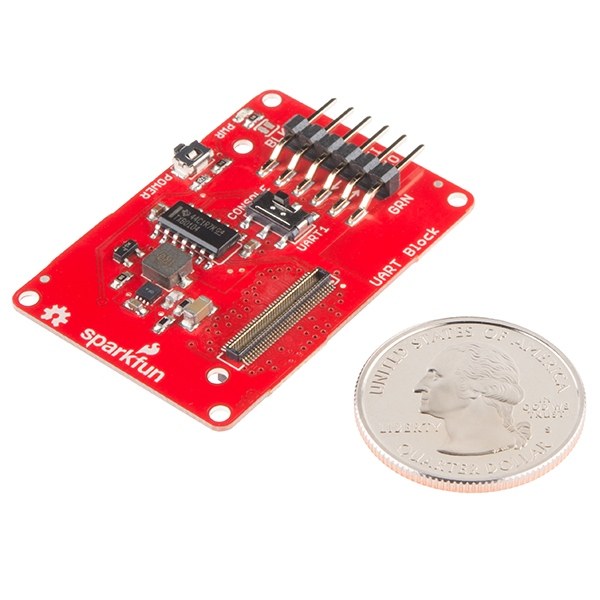

SparkFun Block for Intel® Edison - UART

The Console UART Block delivers power to the Intel® Edison while providing a simple console interface via FTDI cable. This is the most minimal solution to get started using the Intel® Edison. This board can supply 4V and up to 500mA of current to the Edisons' VSYS line. The board has headers on it to connect FTDI board. The board operates with 5V FTDI converters. 3.3V FTDI modules is not compitable with this board.

• Schematic
• EAGLE Files
• Hookup Guide
• Intel Edison Tutorials
• GitHub Page
