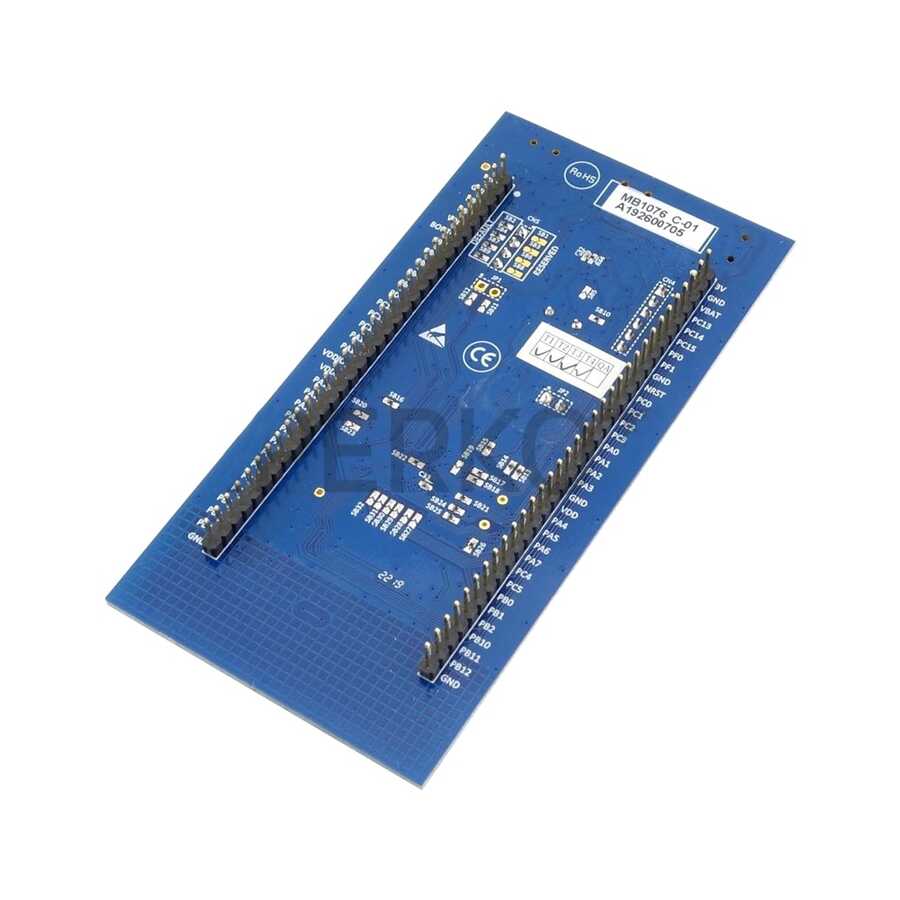

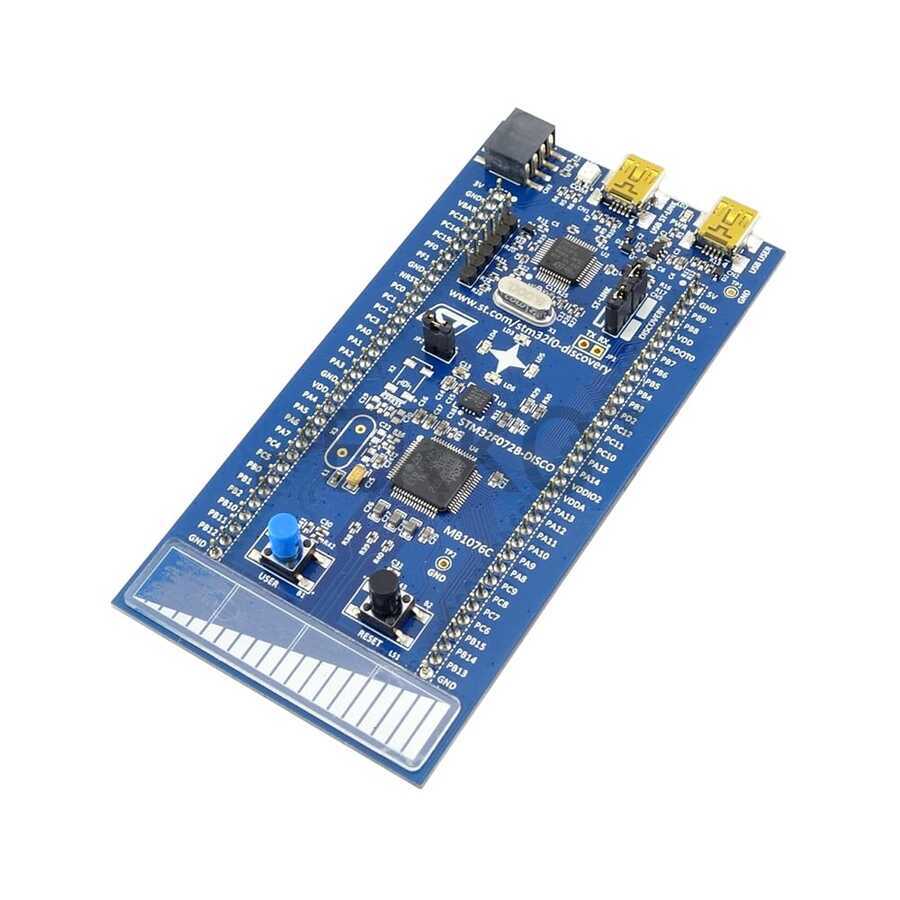

STM32 CPU STM32F072B-DISCO

STM32 CPU STM32F072B-DISCO

STM32 Processor Kit STM32F072B-DISCO allows you to easily develop your applications with STM32F072, which has all the features of the STM32F0 series. It includes everything both beginners and experienced users need to get started quickly. Includes STM32F072RB MCU.

According to STM32F072RBT6, it includes an ST-LINK / V2 embedded debug tool interface, an ST MEMS gyroscope, LEDs, buttons, linear touch sensor, touch keys, RF EEPROM connector and a USB mini-B connector.

STM32 Processor Kit STM32F072B-DISCO General Features:

• STM32F072RBT6 microcontroller with 128 KB Flash memory, 16 KB SRAM in LQFP64 package
• Built-in ST-LINK / V2 with switch to use the kit as ST-LINK / V2 (with SWD connector for programming and debugging)
• Board power supply: via USB bus or external 5 V supply voltage
• External application power supply: 3 V and 5 V
• L3GD20 ST MEMS motion sensor 3-axis digital output gyroscope
• One linear touch sensor or four touch keys
• Six LEDs:

1. LD1 (red / green) for USB communication
2. LD2 (red) for -3.3V power
3. Four user LEDs: LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)

• Two buttons: user and reset
• User USB with Mini-B connector
• RF EEPROM daughterboard connector
• Extension header for LQFP64 I / Os for quick connection to a prototype board and easy probing

Comprehensive freeware that is part of STM32CubeF0 or STM32SnippetsL0 packages or part of STS32-STM32139 for use of legacy Standard Libraries.
