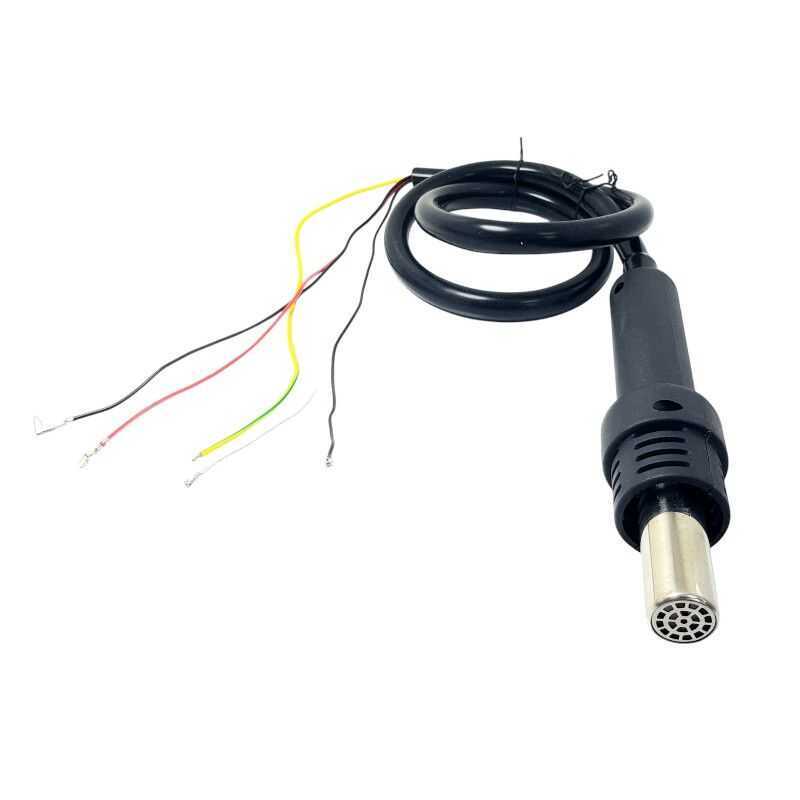

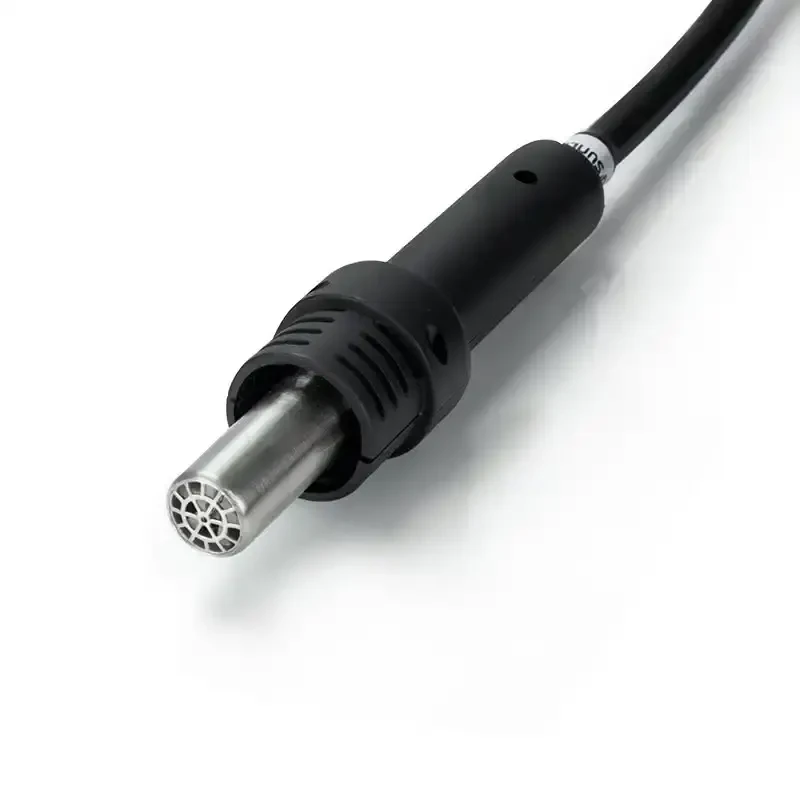

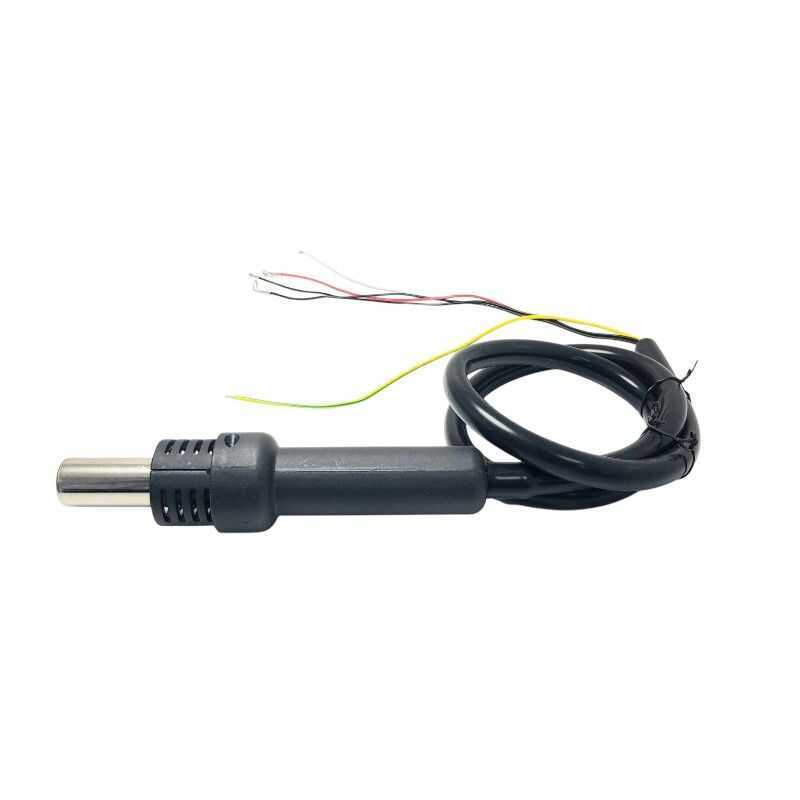

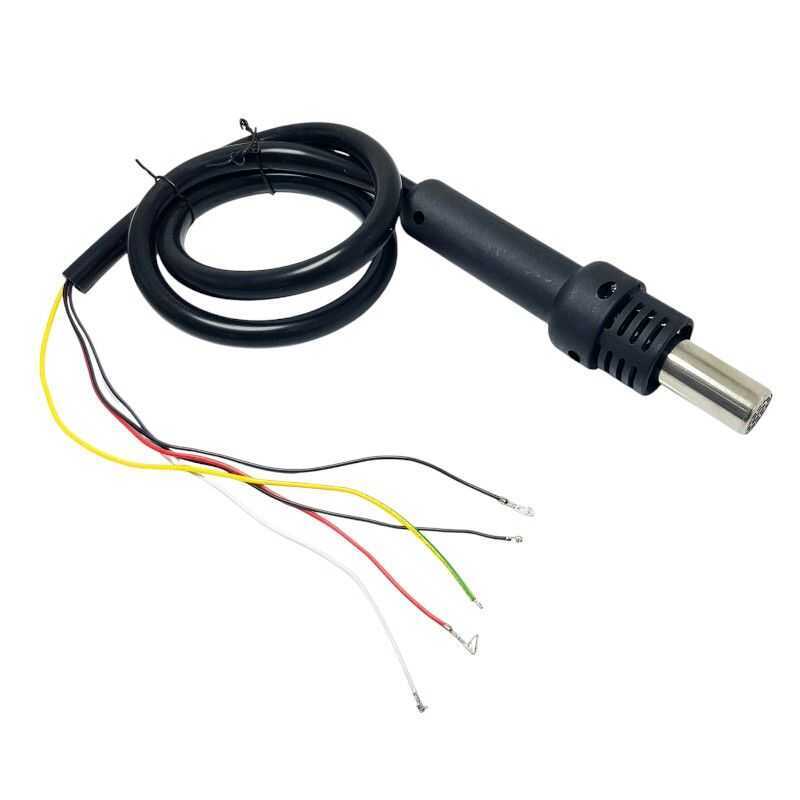

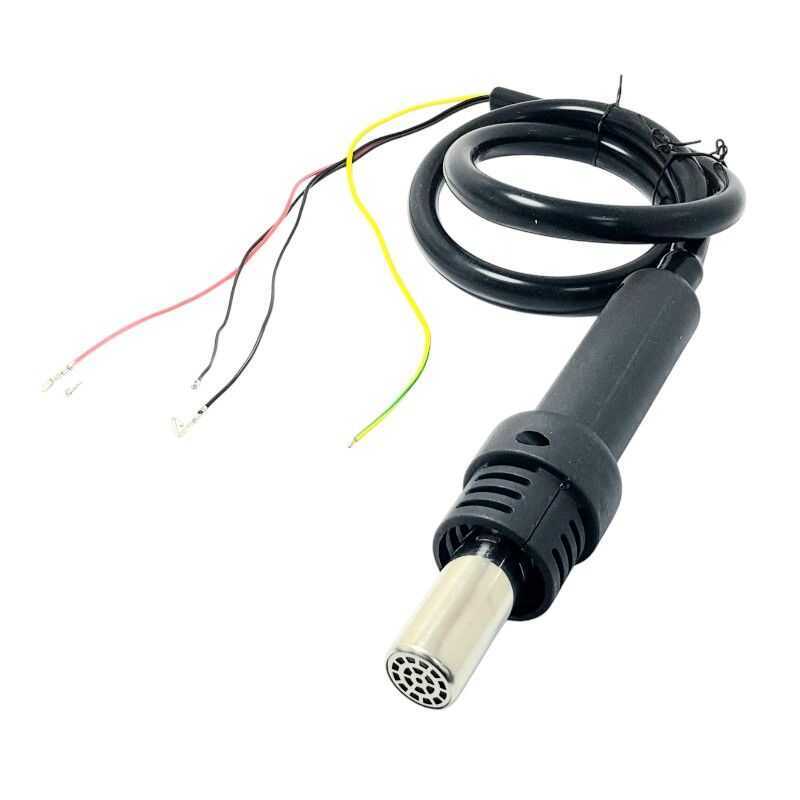

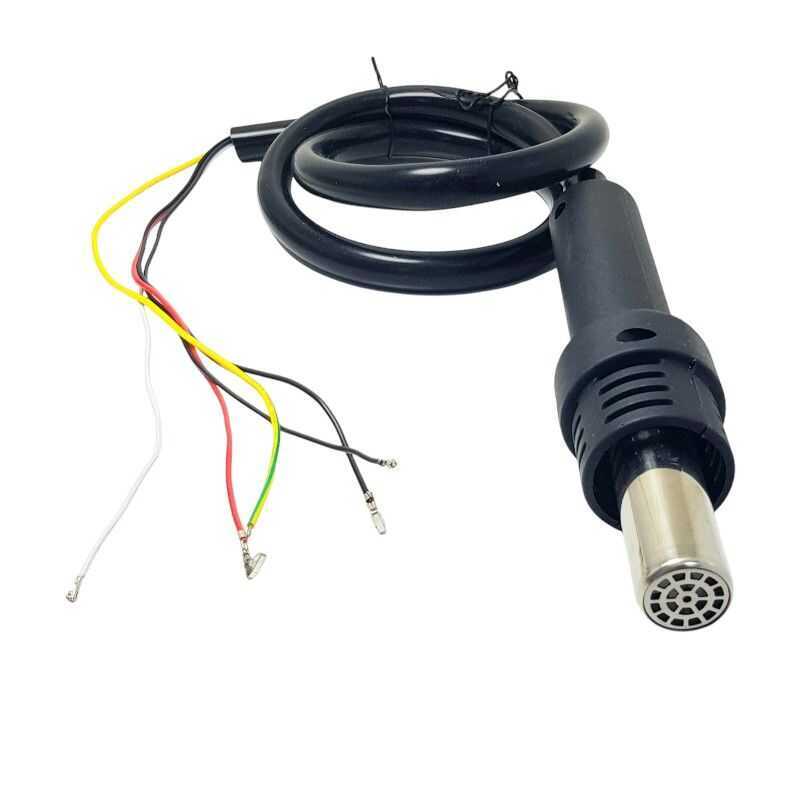

Sunline 852D+ Diaphragm Hot Air Lever - Q208A

Sunline 852D+ Diaphragm Hot Air Lever - Q208A

Sunline 852D+ Diaphragm Hot Air Arm - Q208A is a product of a design marvel with the highest air flow rate, 852D+, allowing you to take advantage of the diaphragm pump advantages in the most efficient way. Thanks to the diaphragm hot air and soldering station, the microcomputer temperature control P.I.D produced with the latest technology, the set temperature is fixed at the correct values without deviation. Less need for maintenance further enhances the excellence of the diaphragm pump. It has many certificates such as CE, TÜVGS, E13, CB, SGS, SGSTUV, such as ISO 9001, a business-enhancing quality management system certificate, and UKAS, which inspects the technical competence and integrity of organizations. It has been developed by expert R&D personnel in production facilities built on a closed area of 8,000 m². Sunline 852D+ Diaphragm Hot Air and Soldering Station will be your biggest assistant in your repair, renewal and maintenance operations.

Sunline 852D+ Diaphragm Hot Air Arm Usage Areas:

• Soldering SMD Elements
• Circuit Boards in Electronic Products
• In Electronics Laboratories
• Industry Vocational Schools
• In Production Lines
• Repair and Repair Technical Services

Sunline 852D+ Diaphragm Hot Air Arm Technical Specifications:

• Model: 852D+ Diaphragm Pump
• Power Consumption: 600W
• Storage Ambient Temperature: 20°C / 80°C
• Environmental Operating Temperature: 0°C / 50°C
• Hot Air Station Section:
• • Airflow Type: Diaphragm Pump
  • Flow Rate: 24 / 28 /L/MIN
  • Temperature Range: 100 / 450 oC
  • Temperature Stability: ±1°C
  • Display Type: LED
  • Arm Cable Length: 100 cm
  • Blowing Arm Heater: 90Ω
• Soldering Station Section:
  • Power Consumption: 75W ± 10%
  • Temperature Range: 200 / 450 oC
  • Temperature Stability: ±1°C
  • Grounding Voltage: ＜2mV
  • Ground Impedance: 2 ohms
  • Display Type: LED
  • Arm Cable Length: 100 cm
  • Handle Heater: 15Ω
• Size: 320 x 270 x 198 mm
• Weight: 5.2kg
• Temperature Cycle: PID Digital Programmed Calibration

Diaphragm Pump Advantages:

• High Efficiency
• The hot air handle is extremely light and more ergonomic to use.
• It is ensured that the heating elements cool faster after the operation is finished.
• It requires little maintenance.
• It is long lasting.

Sunline 852D+ Diaphragm Hot Air Sleeve Package Contents:

• 852D+ Diaphragm Soldering Iron Station Main Unit 1 Piece
• 852D Diaphragm Hot Air Blowing Arm 1 Piece
• Nozzle in Different Sizes: 3 Pieces
• Soldering Arm Stand 1 Piece
• 907A 5 Pin Soldering Arm 1 Piece
• Blowing Arm Stand 1 Piece
• Power Connection Cable (AC) 1 Piece
• Soldering Iron Cleaning Sponge 1 Piece
• Integrated Holder 1 Piece
