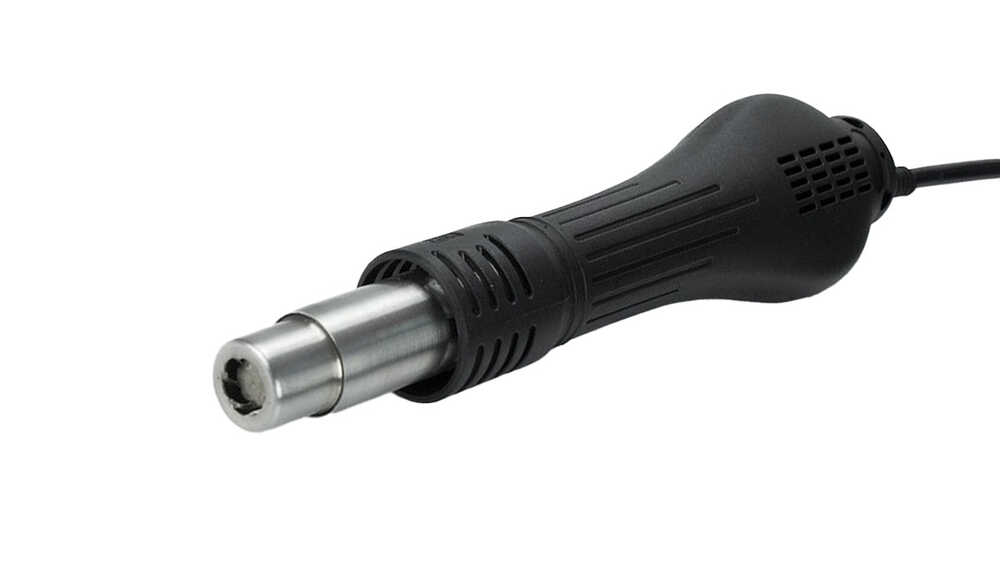

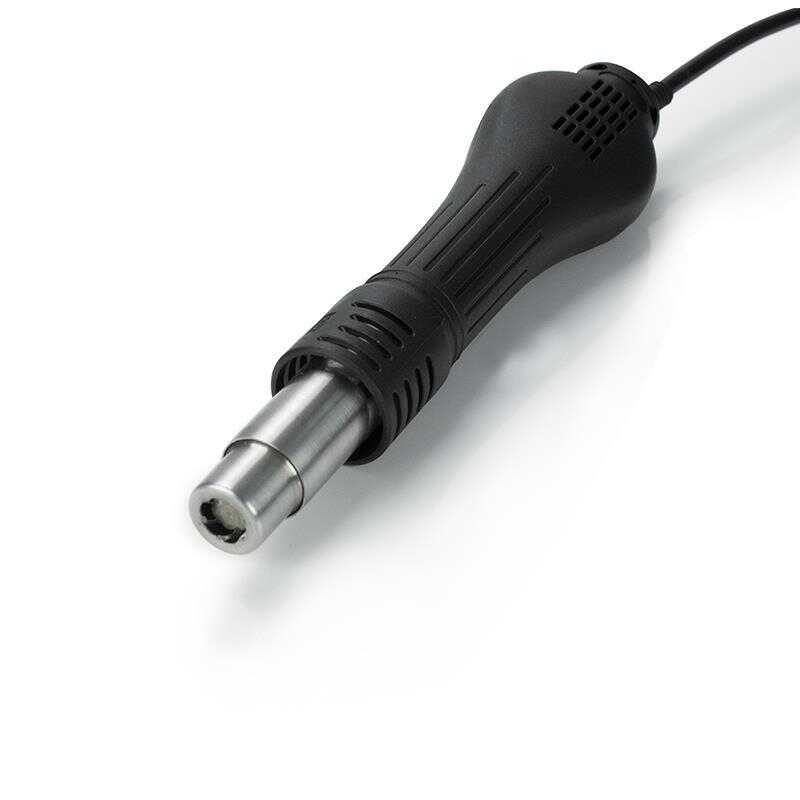

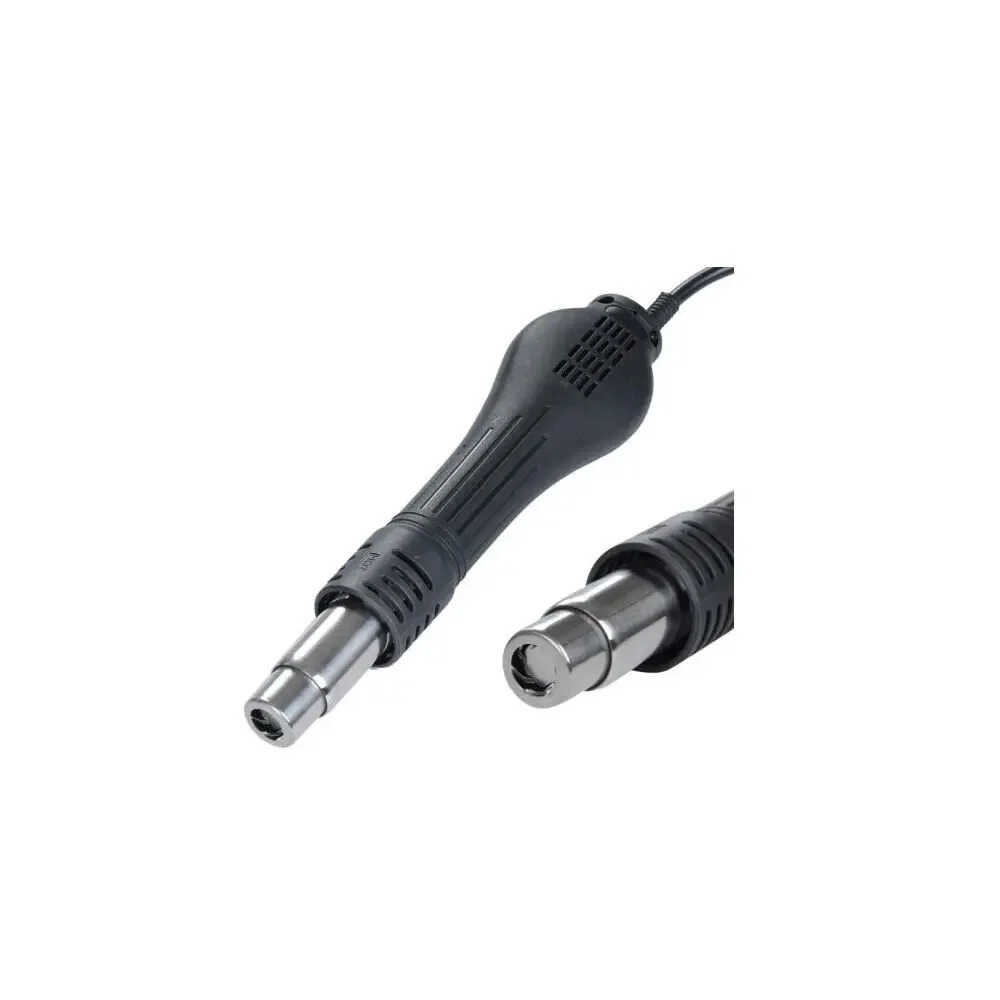

Sunline 853D+ Hot Air Arm (for 2A) - S208F
Sunline 853D+ Hot Air Arm (for 2A), armature and SDM soldering station; Providing technical services with superior technological features. With its compact and ergonomic design, maximum security, this station has a 4-digit digital LED display where you can read the milli amps and an extra 5 V USB output; It has adjustable 30V/5A DC power supply, hot air station and soldering station. The solar station, which contains 3 functions required in all routine maintenance and repair services, provides ease of use with its ergonomic design. The chassis internal integrated functions can be operated independently of each other thanks to the "Dual core processor". 853D 2A, which prevents damage caused by static electricity discharges with ESD design; microcomputer temperature control P.I. ABS, anti-lock function ensures maximum safety When the fan unexpectedly creates a function and operation stability problem, the system;
Sunline 853D+ Hot Air Arm (for 2A) Application Areas:
- Electronic Product Assembly
- Product Development and Scientific Research Laboratories
- Electrical Soldering Works
- Electronic Maintenance Products
- All Kinds of Electronic Manufacturing and Repair Institutions / Organizations / Schools Providing Skill Training
- Mobile Phone or Computer Repair, Maintenance, Repair Works
- At the University, Technical Laboratories or R&D Laboratories
Sunline 853D+ Hot Air Arm (for 2A) Technical Specifications:
- Model: 853D 2A
- Power consumption: 700W ± 10%
- Storage Ambient Temperature: 20-80 °C
- Environment Operating temperature: 0 ~ 50 °C
- Hot Air Station Section:
- Airflow type: Brushless Fan
- Blowing Flow: 120L/MIN
- Temperature Range: 100°C-480°C
- Temperature Stability: ±2°C
- Display Type: LED
- Arm Cable Length: 100 cm
- Blowing Arm Warmer: 74Ω
- Soldering Station Section:
- Power Consumption: 50W ± 10%
- Temperature Range: 200°C~480°C
- Temperature Stability: ±1°C
- Grounding Voltage: 2 mV
- Earth Impedance: 2 ohms
- Display Type: LED
- Arm Cable Length: 100 cm
- Arm Warmer: High Power Warmer
- Calibration mode: PID Digital Programmed Calibration
- DC Power supply Section:
- Output Voltage: DC 0-15V
- USB output: 5V
- Load stability: 0.01 ± 2mV
- Temperature coefficient: 300 ppm / °C
- Ripple dB: 1 mvrms
- Display Type: LED
- Size: 320x27x19.8cm
- Weight: 5.1kg
Brushless Fan Advantages:
- High Efficiency
- Quiet Operation
- Long life
- More Torque
- High Moment Volume Ratio
- Linear Moment Velocity Relationship
- Does not create electrical voltages
Sunline 853D+ Hot Air Arm (for 2A) Package Contents:
- 1 Piece Sunline 853D 2A Soldering Iron Station Main Unit
- 1 Piece Brushless Hot air blower arm
- 1 Piece 9071 6 Pin Soldering Arm
- 4 Piece Different Groups Nozzle
- 1 Piece Accordion Led Lighting
- 1 Piece Soldering Chair
- 1 Piece Blowing Arm Stand
- 1 Piece Power connection cable (AC)
- 1 Piece Soldering Iron Cleaning Set
- 1 Pair of Test probe
- 1 Piece Integrated holder
