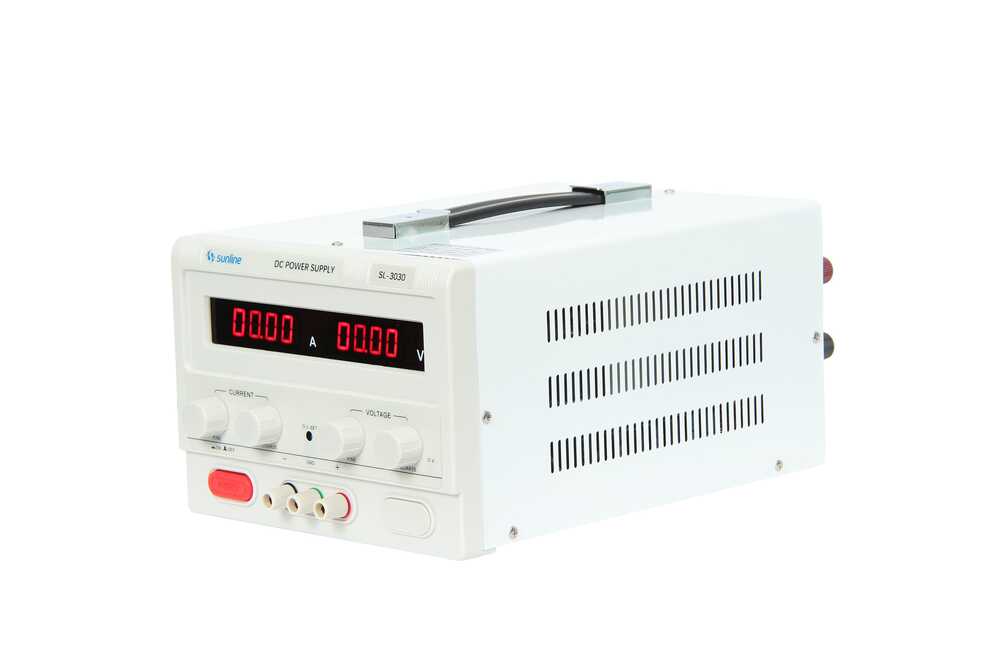

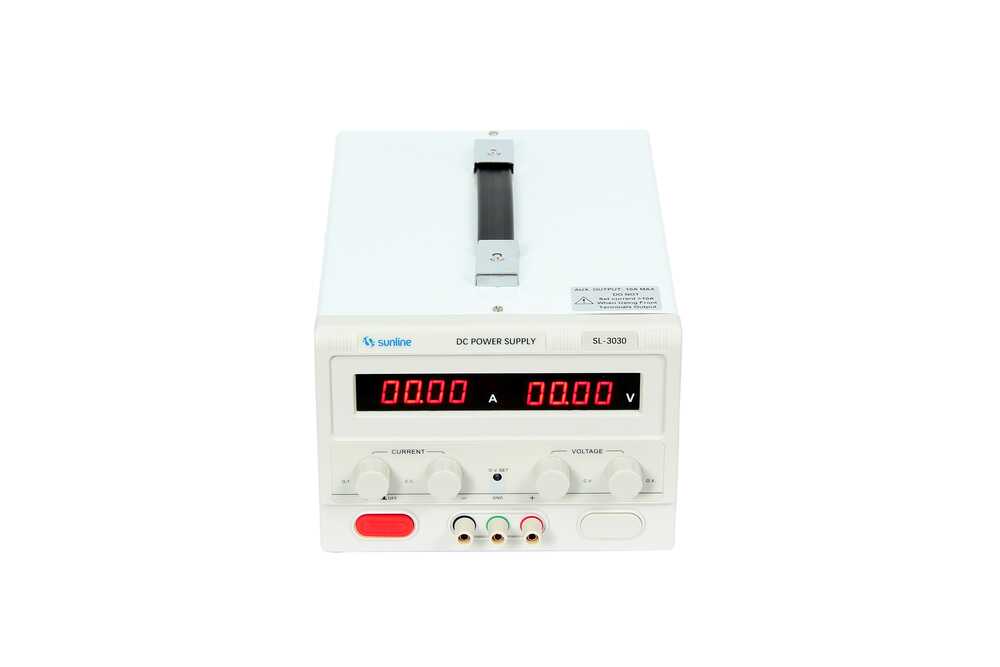

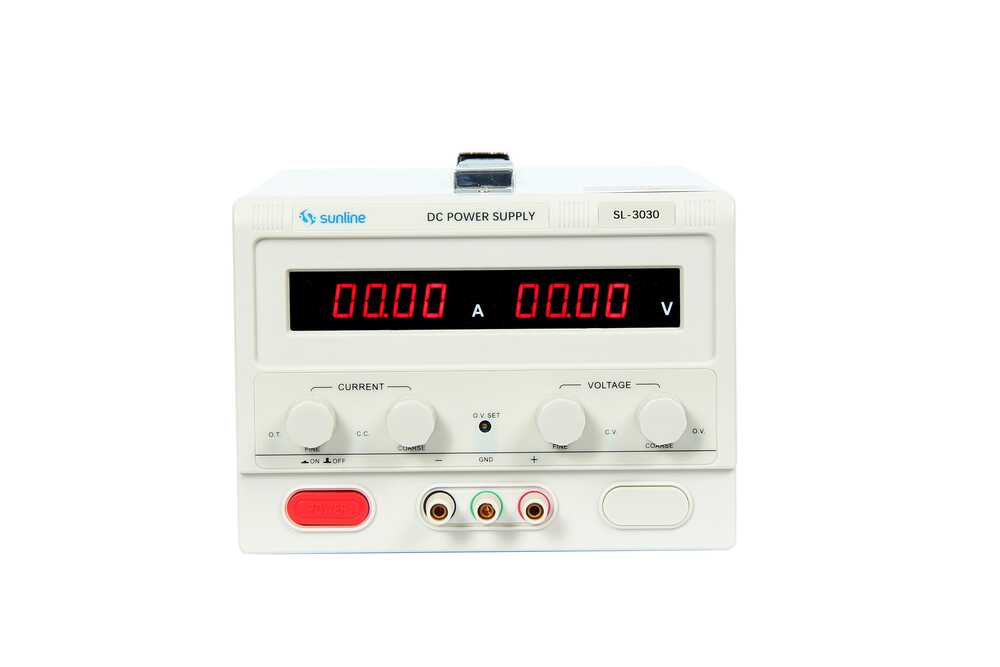

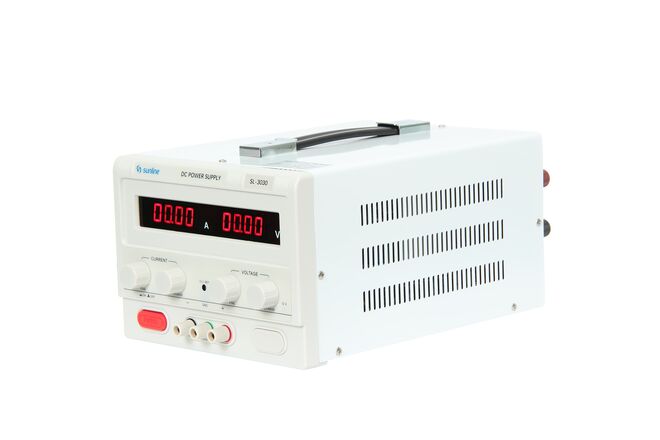

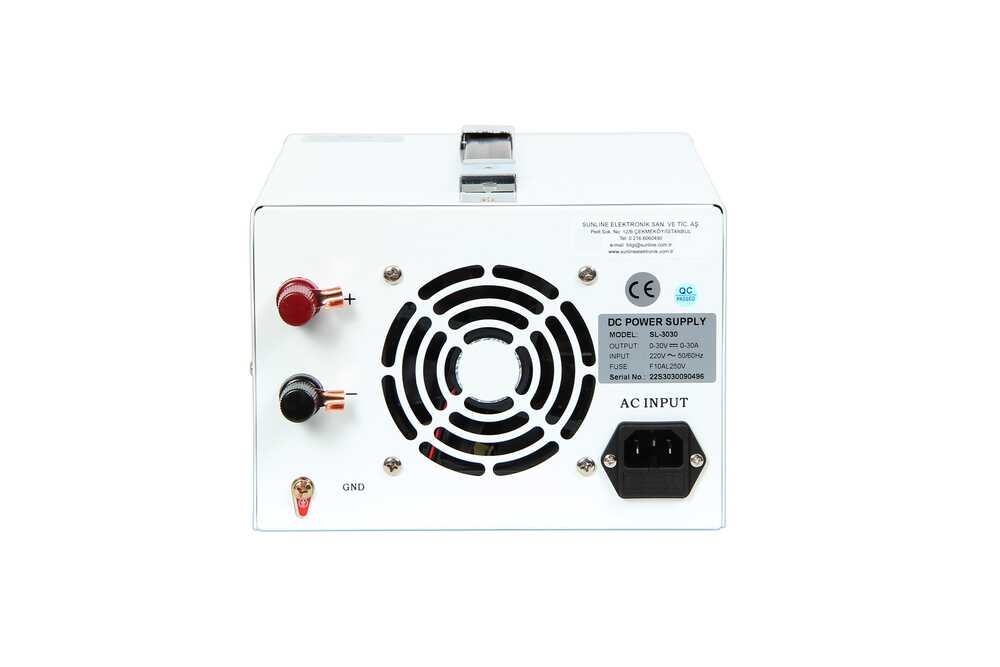

Sunline SL 30-30S Adjustable Power Supply - 30V 30A

Sunline SL 30-30 S - DC POWER SUPPLY 30V 30A

Sunline SL 30-30 S, A type of power supply that delivers direct current to power a device. The primary function of the DC power supply is to convert the electricity from the source into direct voltage and current to power the load. In addition, this power supply with 0-30V output protection is a very high quality and useful product. It gives current output up to 30 amps. It is used in laboratory tools and workshops. There is a 'FINE' pot on the power supply for low voltage value change and fine tuning. The current value can be adjusted as milliamperes and amperes. Current restrictions feature is available. You can reach the paper about power supplies from this link.

Sunline SL 30-30 S - DC POWER SUPPLY 30V 30A Features:

• 30V 30A Single Output DC power Supply 900W
• Advanced PWM control technology
• Compact design and lightness
• Constant voltage and constant current operations
• Automatic CV/CC switch
• For voltage and current Coarse and Fine control
• Overcurrent protection, Overvoltage protection and Over temperature protection
• Adjustable OVP, OCP
• Intelligent temperature-controlled cooling fan
• Operation Type: PWM
• Output Current: 0 / 30A
• Output power: 900W
• Output voltage: 0-30V
• O.V.P. Range: DC 1~100% Rated Output Power
• O.C.P. Range: DC constant 105% Maximum Output Power
• Line regulation: CV≤0.2% +2 Screen / CC≤0.5% +2 Screen
• Load regulation: ≤0.5% +2 Display
• Ripple and results: ≤1% rms
• Voltmeter: 4 Digit LED Display
• Ammeter: 4 Digit LED Display
• Voltage source: 0.000-9.999V; 00.00-99.99V; 000.0-999.9V
• Current routing: 0.000-9.999A; 00.00-99.99A; 000.0-999.9A
• Accuracy: ±(1% FS+ 1 Display)
• Protection: Over-Voltage, over-current, over-temperature and overload protections
• Operating conditions: 0°C~40°C, <80%RH
• Storage conditions: -10°C ~70°C, <70%RH
• Input Power: AC115V/230V±10% integrated, 50/60Hz
• Size: 260 x 160 x 440 mm
