T-Plug 5.3V DC BEC Power Module - APM and Pixhawk

T-Plug 5.3V DC BEC Power Module - APM and Pixhawk

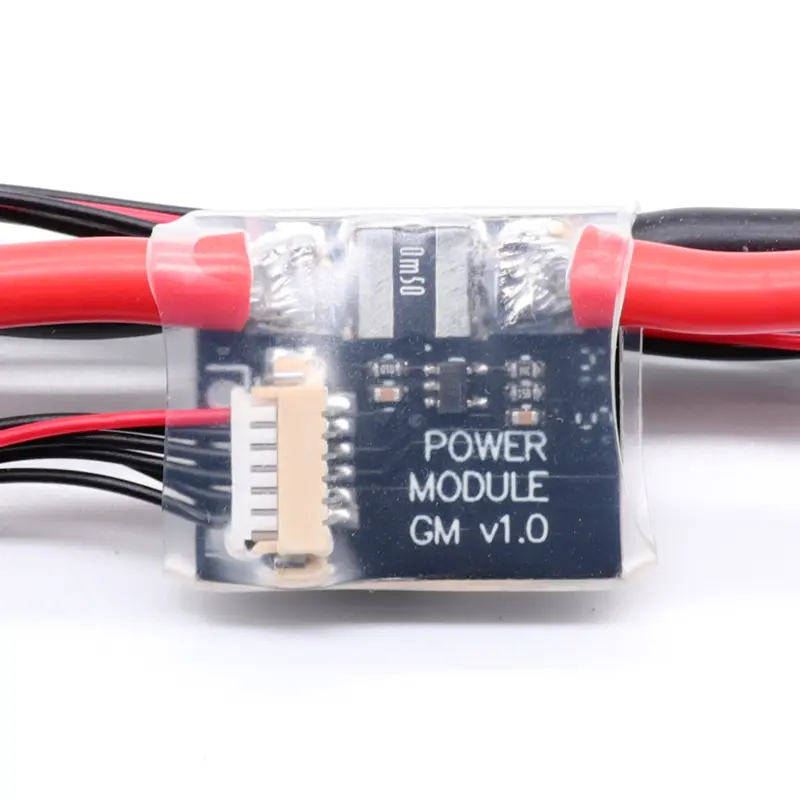

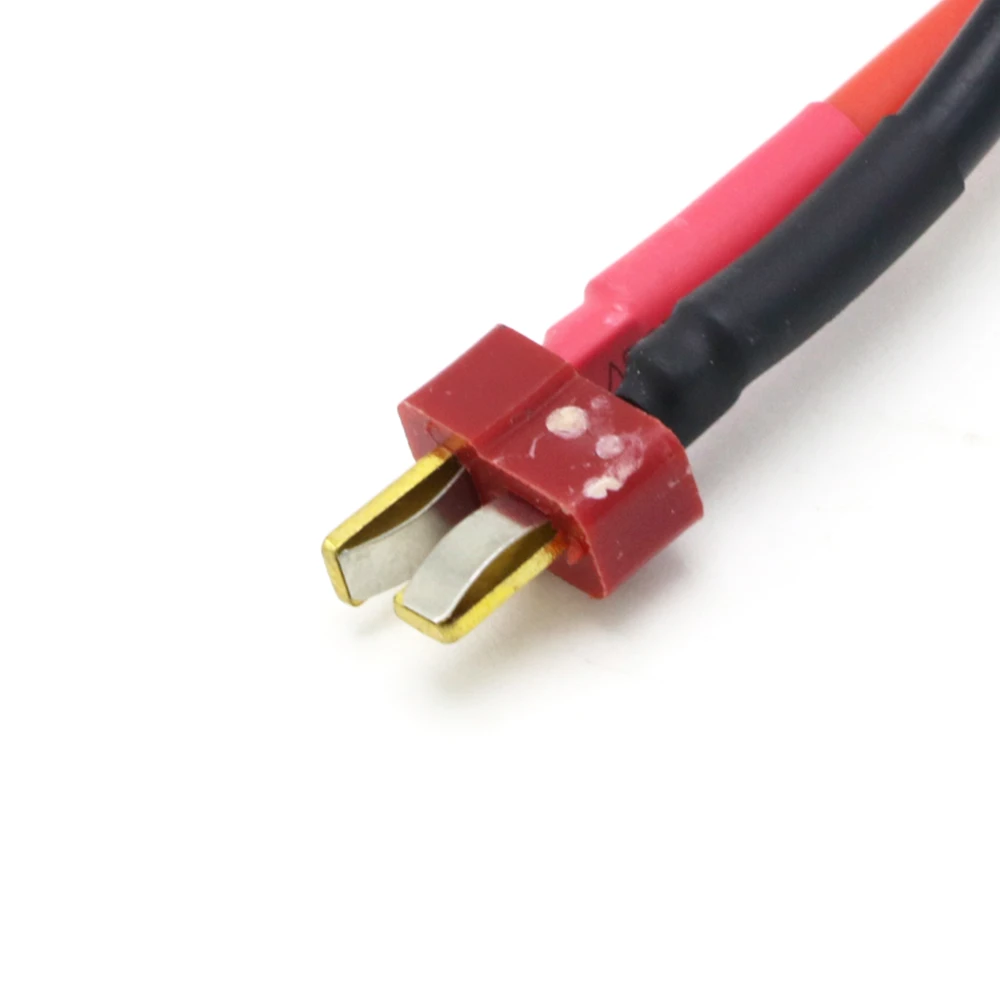

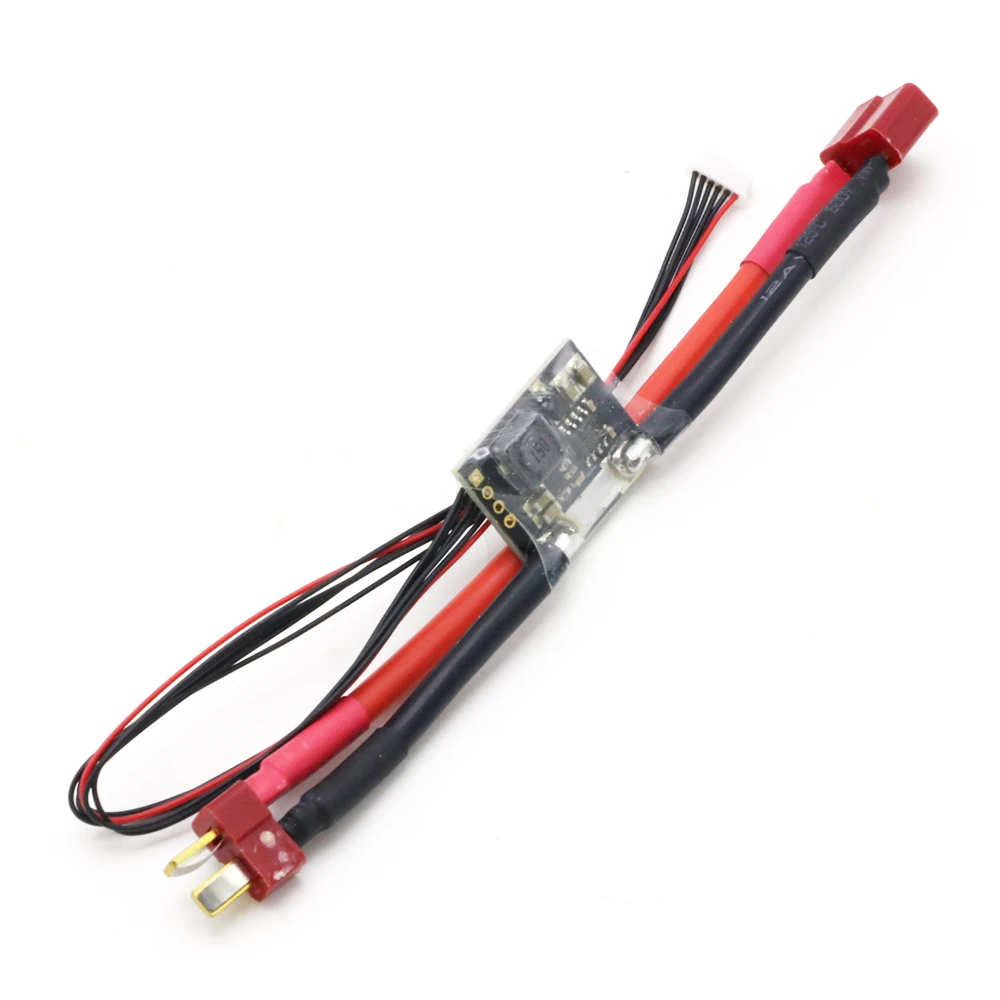

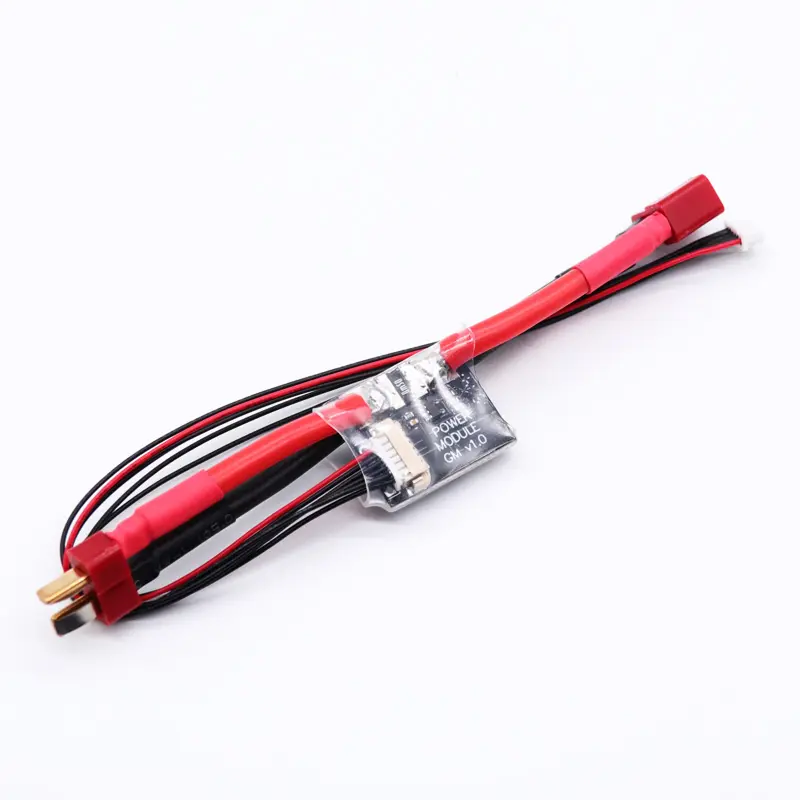

The APM 2.5 Power Module is a simple way to provide your APM 2.5 with clean power and current consumption and battery voltage measurements from a LiPo battery, all via a 6-pole cable. The built-in switching regulator outputs up to 5.3V and a maximum of 2.25A up to a 4S LiPo battery. The Power Module comes fully assembled with Deans connectors and is wrapped in shrink tubing for protection.

Used to detect battery voltage and battery current, flight control board receives two signals, calculate remaining battery power, estimate remaining flight time. In addition, the module comes with BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to ensure a stable power supply. Another signal cable connectors are used in Japan original connectors, non-native connections, so reliable connection between APM flight control board and power supply module.

T-Plug 5.3V DC BEC Power Module - APM and Pixhawk Specifications:

• Max. input voltage: 30V
• Max. current detection: 90A
• Configured voltage and current measurement for 5V ADC
• Switching regulator outputs 5.3 V and 3A max
• 6P molex cable plugs directly into 'PM' connector of APM / Arduflyer 2.5
• Size:137 mm
• Cable length: 192 mm
• Net Weight: 27g
