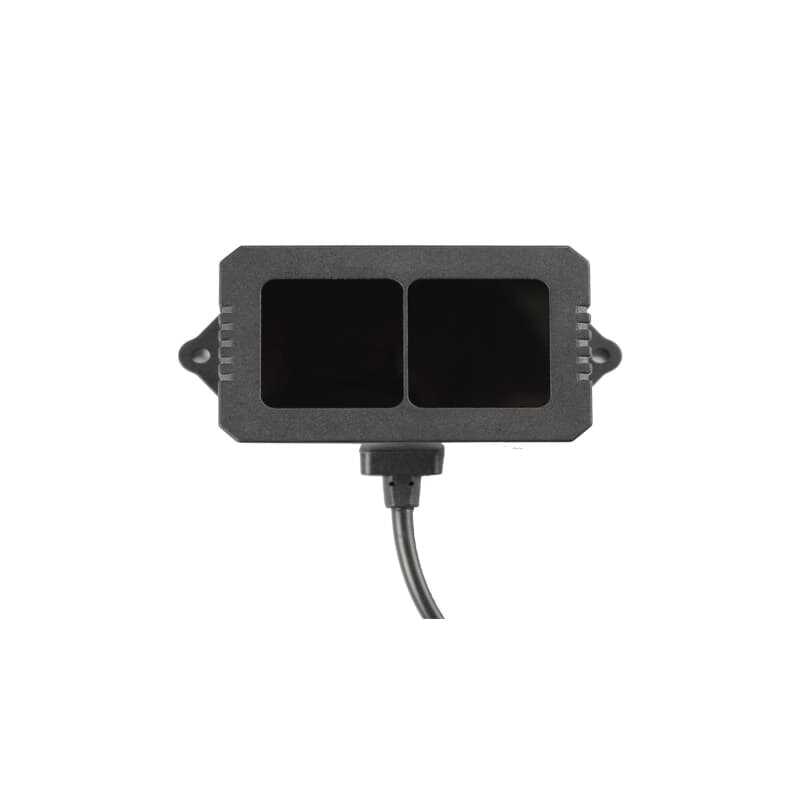

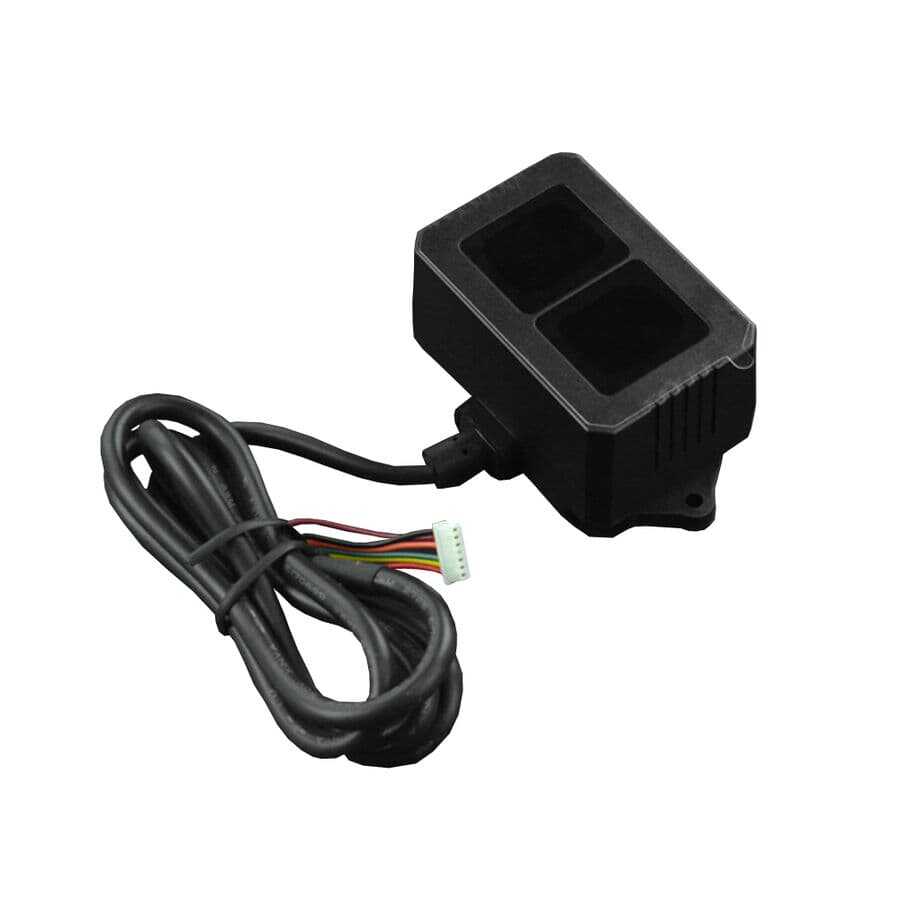

TF02-i LiDAR Laser Distance Sensor (40m)

Brand
Benewake
Product Code
21308
Fiyat
: 3,837.10 TL + VAT
KDV Dahil Fiyat
: 4,604.52 TL

TF02-i LiDAR Laser Distance Sensor (40m)

The TF02-i LiDAR is an industrial grade mid-range distance sensor. Its maximum detection range can reach up to 40m and it has adjustable frame rate with maximum 1KHz.

This rangefinder has an IP65 water and dust resistant PC/ABS/PMMA enclosure. It supports a wide range of input voltages (7-30V) with reverse protection to protect the internal circuit, and adopts RS485 communication interface and standard Modbus protocol. Multiple built-in operating modes are included for users to change their parameters and configurations to meet different applications.

This rangefinder has an IP65 water and dust resistant PC/ABS/PMMA enclosure. It supports a wide range of input voltages (7-30V) with reverse protection to protect the internal circuit, and adopts RS485 communication interface and standard Modbus protocol. Multiple built-in operating modes are included for users to change their parameters and configurations to meet different applications.

TF02-i LiDAR can be used on Arduino UNOR3 via TTL to RS485 Shield and also can be used on Raspberry Pi from USB to RS485 module. These two ways provided by DFRobot can make the TF02-i LiDAR easier to use.

TF02-i LiDAR Laser Distance Sensor (40m) Technical Specifications:

  • Working Range:
    • 0.1-40m@90% reflectivity
    • 0.1-13.5m@10% reflectance
    • 0.1-40m@90% reflectivity and 100Klux
    • 0.1-13.5m@10% reflectance and 100Klux
  • Accuracy: ±5cm (0.1~5m), ±1% (5~40m)
  • Distance resolution: 1cm
  • Frame rate: 100Hz
  • Ambient light immunity: 100Klux
  • Working temperature: -20~60℃
  • Repeatability: 1σ:<2cm(0.1~35m@90% reflectivity)
  • Enclosure rating: IP65
  • Electrical Parameters:
    • Supply voltage: 7~30V
    • Average current: ≤70mA@12V
    • Power consumption: ≤0.85W@12V
    • Peak current: 100mA
  • Others:
    • Communication interface: RS-485
    • Dimensions: 69mmx41.5mmx31.5mm(L*W*H)
    • Housing material: PC/ABS/PMMA
    • Storage temperature: -30~80℃
    • Weight: 60g (with wire)
    • Cable length: 70cm
