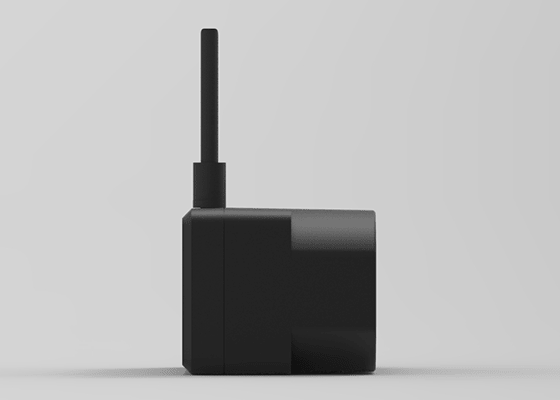

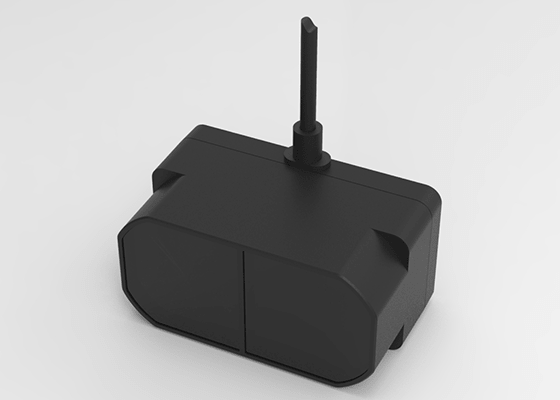

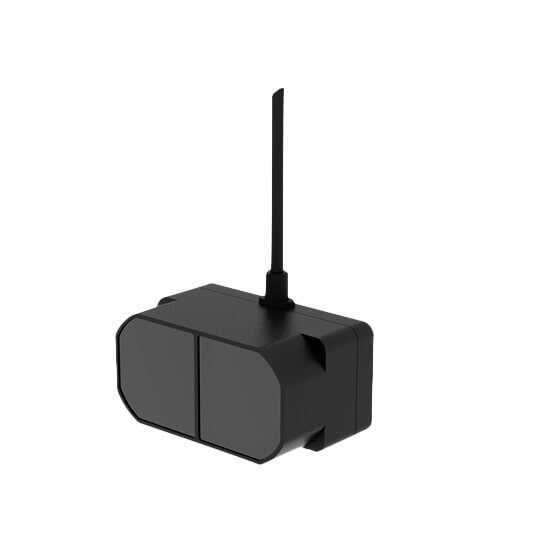

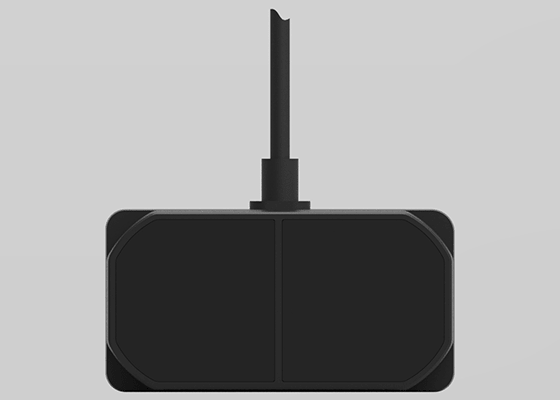

TFmini Plus LIDAR Module - IP65 Waterproof


The TFMini Plus is a ToF (Time of Flight) LiDAR sensor capable of measuring the distance to an object:

  • as close as 10 centimeters (+/- 5cm up to 6m) and
  • as far as 12 meters (+/-1% starting at 6m)!

As with all LiDAR sensors, your effective detection distance will vary depending on lighting conditions and the reflectivity of your target object, but what makes this sensor special is its size. Measuring only 35 x 18.5 x 21mm, the TFMini Plus allows you to integrate LiDAR into applications traditionally reserved for smaller sensors.

Setting itself apart from the original TFmini, the TFmini Plus has been designed with an IP65 enclosure meaning its "Dust-tight & water-resistant", and also passed the vibration test of drone level, which will greatly expand its application range. The TFMini Plus is easy to power at only 5V and easy to talk to using the UART communication protocol.

Features:

  • Features a cost-effective LiDAR
  • Offers a small-size and low power consumption
  • Operating Range: 0.1m~12m
  • Accuracy: ±5cm@(0.1-6m), ±1%@(6m-12m)
  • Distance resolution: 5mm
  • Frame rate: 1-1000Hz(adjustable)
  • Ambient light immunity: 70klux
  • Operating temperature: -20~60
  • Enclosure rating: IP65
  • Light source: LED
  • Central wavelength: 850nm
  • FOV: 3.6°
  • Supply voltage: 5V±0.5V
  • Average current: ≤110mA
  • Power consumption: 550mW
  • Peak current: 500mA
  • Communication level: LVTTL3.3V), UART
  • The material of enclosure: ABS+PC
  • Storage temperature: -20~75
  • Weight: 11g
  • Wire length: 30cm
  • Requires TTL-USB converter to change between UART and I2C
