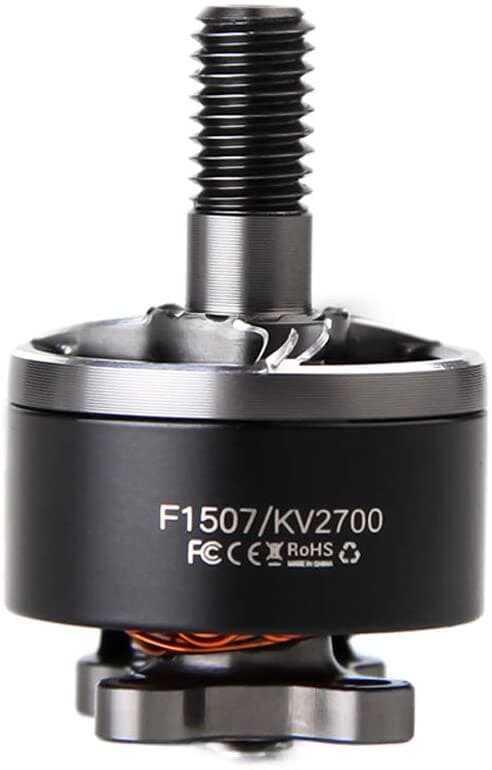

T-Motor Cinewhoop F1507 2700KV 3-6S Brushless Motor for RC Drone FPV Racing

T-Motor Cinewhoop F1507 2700KV 3-6S Brushless Motor for RC Drone FPV Racing

Brushless motors, as the name suggests, do not have brushes. Since there is no brush, the input power is supplied directly to the stator of the motor. The rotor is made of permanent magnet and windings surround the rotor. By creating a magnetic field that pushes and attracts the magnets, the rotor is rotated. Since there are no brushes in brushless motors, there is no noise and spark formation. This helps to increase the efficiency as well as the life of the motor. Brushless motors have become common in many applications due to their long life and reliability. Brushless motors are also used in new generation electric vehicles. Brushless motors can be used for different applications and needs.

In addition to these;

-Long life Japanese NMB ball bearings.

-Efficient Japanese Kawasaki stator steel

-Rare earth magnets are stable up to 180 degrees

-Oxygen-free pure copper wires

-CNC machined aluminum case

-silicone wire ends

-Patented balance techniques

-There is a unique wiring method.

F1507 2700KV 3-6S Brushless Motor Specifications for T-Motor Cinewhoop RC Drone FPV Racing

KV: 2700KV

Input Voltage: (Lipo) 3-6S

Configuration: 12N14P

Shaft Diameter: 2mm

Idle Current (5V): 0.6A

Peak Current (60 s): 22A

Maks. Power: 519W

internal resistance: 131mΩ

Dimension: 18.9x29.7mm

Weight: 15.2g
